Schematic of Instrument

Front End Schematic

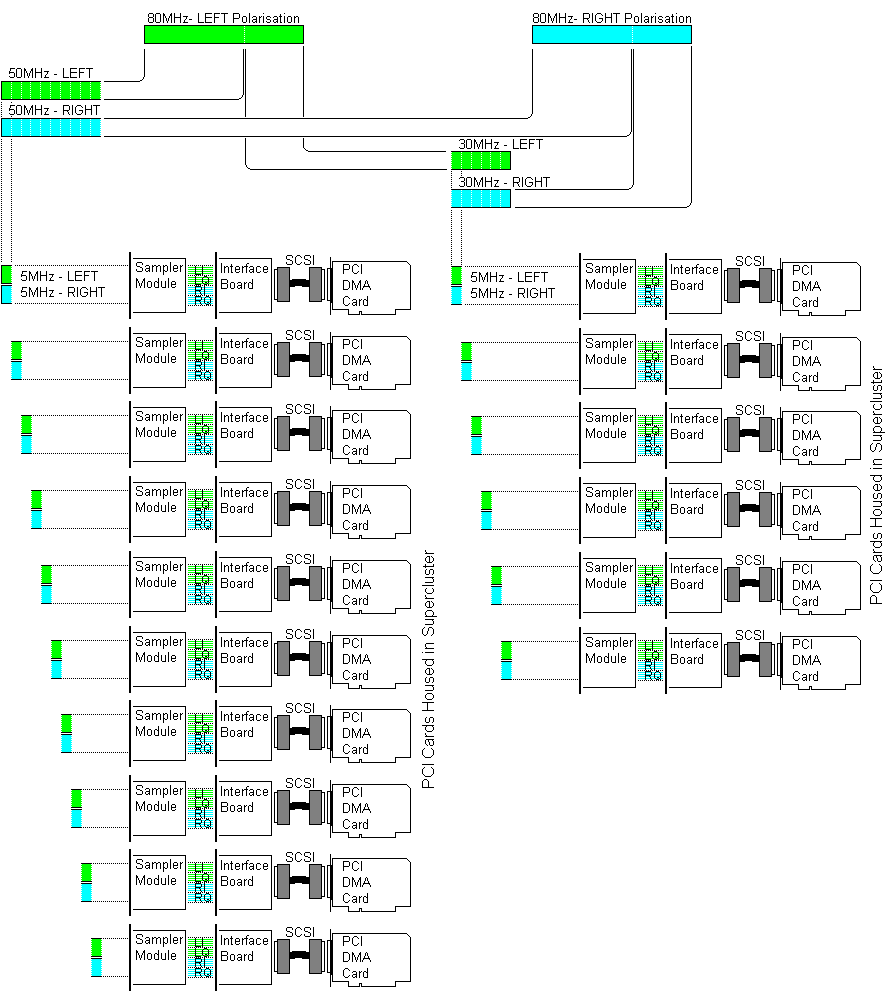

This simplified schematic illustrates the arrangement of the Samplers, Interface Boards and PCI boards involved in the data acquisition.

Flow of Data

The following simple diagram illustrates the logical connections and relationships between discrete modules in the front end. Not shown is the "up-stream" downconversion which splits the 100MHz band into two 50MHz bands from 25MHz through 75MHz.
Click on any module to link to further detail.
Use of LO ? ? ?
? Use of Sampler ?
Use of LO ? ?
? Use of Sampler ?
Use of Interface ? Adlink PDF File
Click on any module to link to further detail.
