The Night Sky June 2017
Compiled by Ian Morison
This page, updated monthly, will let you know some of the things that you can look out for in the night sky. It lists the phases of the Moon, where you will see the naked-eye planets and describes some of the prominent constellations in the night sky during the month.
New
The author's: Astronomy Digest
which, over time, will provide useful and, I hope, interesting articles for all amateur astronomers. A further aim is to update and add new material to link with the books recently published by Cambridge University Press and which are described on the home page of the digest.
June 2017: Imaging the Milky Way from the Kerry Dark Sky Reserve. The QHY Polemaster - an innovative way to align a polar mount. Enhancing Planetary Images
Image of the Month
The dwarf galaxy Wolf-Lundmark-Melotte
Image ESO, VST/Omegacam Local Group Survey
Named after the three astronomers who discovered it, Wolf-Lundmark-Melotte is a lonely dwarf galaxy in the southerley constellation Cetus. Lying at a distance of ~3 million light-years from the Milky Way, it is one of the most remote members of our local group of galaxies. It contains pinkish star forming regions - like our Orion Nebula - and many young blue stars whilst it has an outer halo extending some 8,000 light years across containing older yellow stars. This image was captured with the 286 megapixel OmegaCAM camera.
Highlights of the Month
Early June - still worth viewing Jupiter.
Jupiter imaged by Damian Peach
Though past its best, the early part of June is still a good time to observe Jupiter, seen in the south to south-west after sunset. It is moving down the ecliptic and lies in Virgo. It now reaches an elevations of ~36 degrees when crossing the meridian. An interesting observation is that the Great Red Spot appears to be diminishing in size. At the beginning of the last century it spanned 40,000 km across but now appears to be only ~16,500 km across - less than half the size. It used to be said that 3 Earths could fit within it, but now it is only one. The shrinking rate appears to be accelerating and observations indicate that it is now reducing in size by ~580 miles per year. Will it eventually disappear?
The features seen in the Jovian atmosphere have been changing quite significantly over the last few years - for a while the South Equatorial Belt vanished completely (as seen in Damian's image) but has now returned to its normal wide state. The diagram on right shows the main Jovian features as imaged by the author at the beginning of December 2012.
The image by Damian Peach was taken with a 14 inch telescope in Barbados where the seeing can be particularly good. This image won the "Astronomy Photographer of the Year" competition in 2011.
See more of Damian Peach's images: Damian Peaches Website"
Features in Jupiter's atmosphere - December 2013.
June: Look for the Great Red Spot on Jupiter
Observe the Great Red Spot
Image: NASA
This list gives some of the best evening times during June to observe the Great Red Spot which should then lie on the central meridian of the planet. The times are in UT.
2nd 23:08 21st 23:51
5th 20:38 24th 21:22
7th 22:16 26th 23:01
9th 23:55
12th 21:25
14th 23:04
19th 22:13
June - The best month to observe Saturn.
Saturn in the evening Sky
Saturn reaches opposition on the 14th of June, so is now due south and highest in the sky around midnight (UT) or 1am (BST).
It lies in the southern part of Ophiuchus some 16 degrees up and to the left of the orange star Antares in Scorpius.
Held steady, binoculars should enable you to see Saturn's brightest moon, Titan, at magnitude 8.2. A small telescope will show the rings with magnifications of x25 or more and one of 6-8 inches aperture with a magnification of ~x200 coupled with a night of good 'seeing' (when the atmosphere is calm) will show Saturn and its beautiful ring system in its full glory.
As Saturn rotates quickly with a day of just 10 and a half hours, its equator bulges slightly and so it appears a little 'squashed'. Like Jupiter, it does show belts but their colours are muted in comparison.
The thing that makes Saturn stand out is, of course, its ring system. The two outermost rings, A and B, are separated by a gap called Cassini's Division which should be visible in a telescope of 4 or more inches aperture if seeing conditions are good. Lying within the B ring, but far less bright and difficult to spot, is the C or Crepe Ring.
Due to the orientation of Saturn's rotation axis of 27 degrees with respect to the plane of the solar system, the orientation of the rings as seen by us changes as it orbits the Sun and twice each orbit they lie edge on to us and so can hardly be seen. This last happened in 2009 and they are now fully opened out, currently at an angle of 26.5 degrees to the line of sight. From this month the ring's orientation will begin to narrow until March 2025 when they will appear edge-on again.
See more of Damian Peach's images: Damian Peaches Website"
Saturn imaged in April 2012 by Damian Peach
June - Find the globular cluster in Hercules and spot the "Double-double" in Lyra
Use binoculars to find the globular cluster M13 in Hercules and the "Double-double" in Lyra
Image: Stellarium/IM
There are two very nice objects to spot with binoculars in the eastern sky well after dark this month. Two thirds of the way up the right hand side of the 4 stars that make up the "keystone" in the constellation Hercules is M13, the best globular cluster visible in the northern sky. The 15 minute exposure image on right was taken by the author using a 127 mm APO refractor and SBIG 8.3 megapixel CCD camera.
Just to the left of the bright star Vega in Lyra is the multiple star system Epsilon Lyrae often called the double-double. With binoculars a binary star is seen but, when observed with a telescope, each of these two stars is revealed to be a double star - hence the name!
M13 imaged by Ian Morison in May 2014
Late June: A very good time to spot Noctilucent Clouds!
June: the chance to spot Noctilucent Clouds
Image: Wikipedia Commons
Noctilucent clouds, also known as polar mesospheric clouds, are most commonly seen in the deep twilight towards the north from our latitude. They are the highest clouds in the atmosphere at heights of around 80 km or 50 miles. Normally too faint to be seen, they are visible when illuminated by sunlight from below the northern horizon whilst the lower parts of the atmosphere are in shadow. They are not fully understood and are increasing in frequencey, brightness and extent; some think that this might be due to climate change! So on a clear dark night as light is draining from the north western sky long after sunset take a look towards the north and you might just spot them!
June 4th - evening: The Moon and Jupiter

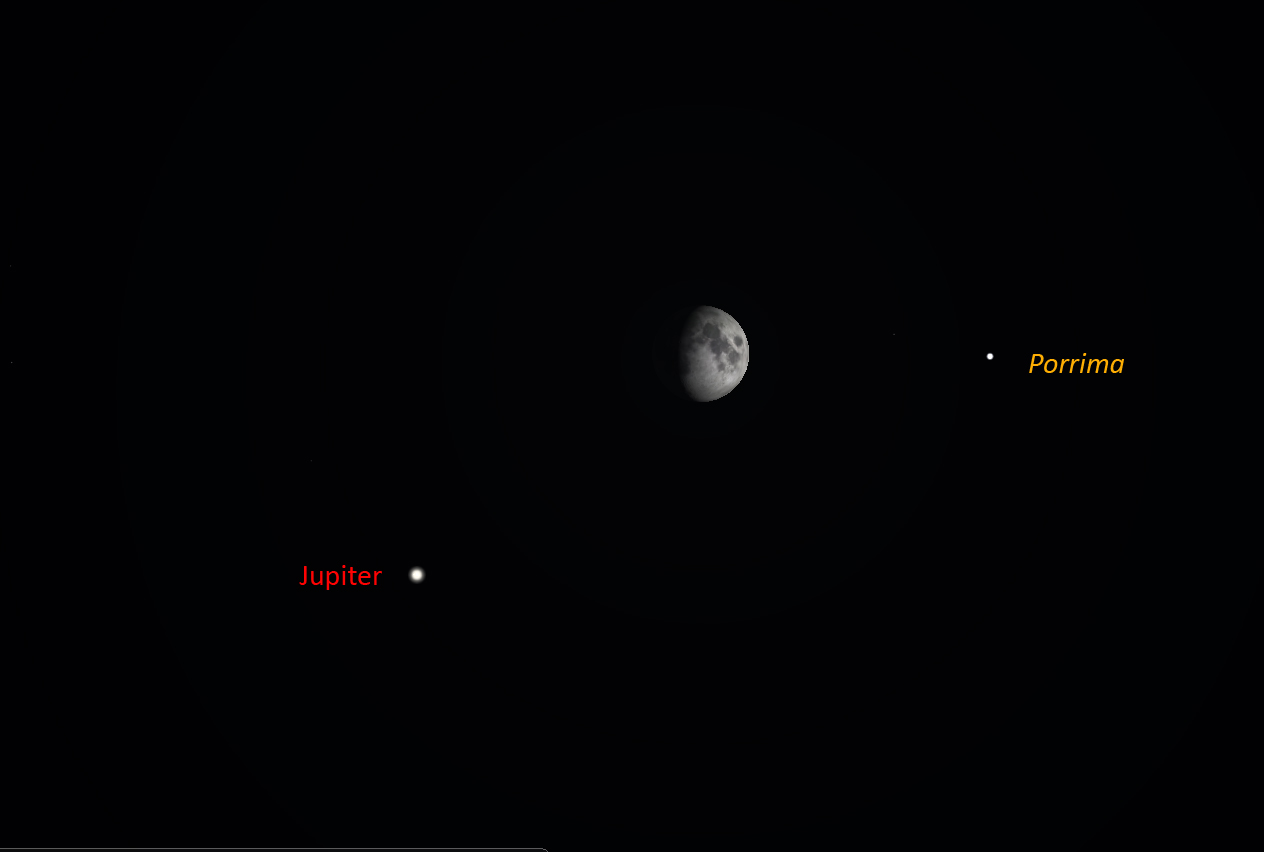

The Moon and Jupiter
Image: Stellarium/IM
During the evening of the 4th June, the waxing Moon will lie less than 2 degrees up and to the right of Jupiter.
8th/9th June - around midnight:Observe the Galilean Satellites.

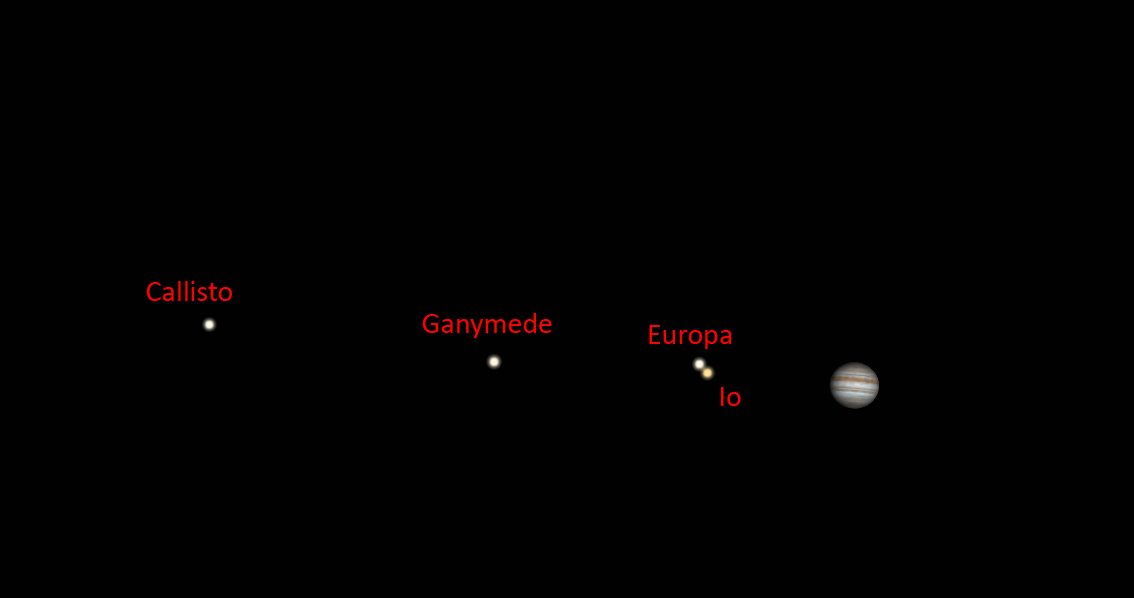

Jupiter's Galilean Satellites
Image: Stellarium/IM
If clear around midnight on the 8th/9th, and using a small telescope, one could observe the 4 Gallilean Moons lined up on one side of the giant planet.
Night of June 15 to 16th when fully dark: The Lyrid Meteor Shower
The Lyrid Meteor Shower
Image: Stellarium/IM
The June Lyrid meteor shower reaches its peak on the night of the the 15th/16th with a rate at the zenith of ~8 meteors per hour. This is not many and, as the Moon is close to third quarter it may be hard to spot one. The radiant is very close to the star Vega. Many more meteors were seen from the shower in the late 1960's but the peak hourly rate has droped off markedly since then. If clear, it may still be worth aiming to see if you can spot one.
21st June - before dawn: Venus and a thin crescent Moon

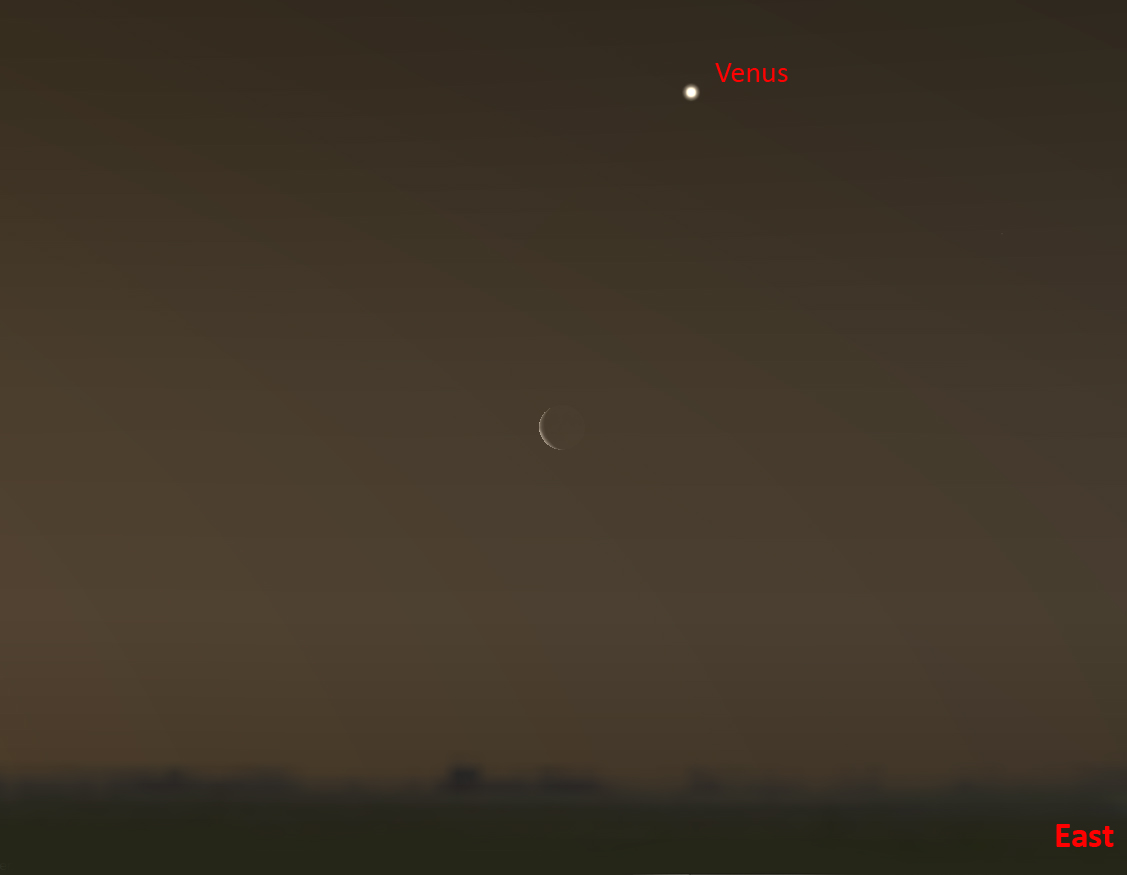

Venus and a crescent Moon.
Image: Stellarium/IM
Before dawn on the 22st, Venus will be seen some 4 degrees above a very thin waning crescent Moon.
Late June - around midnight:Observe Comet 2015 V2 (Johnson)

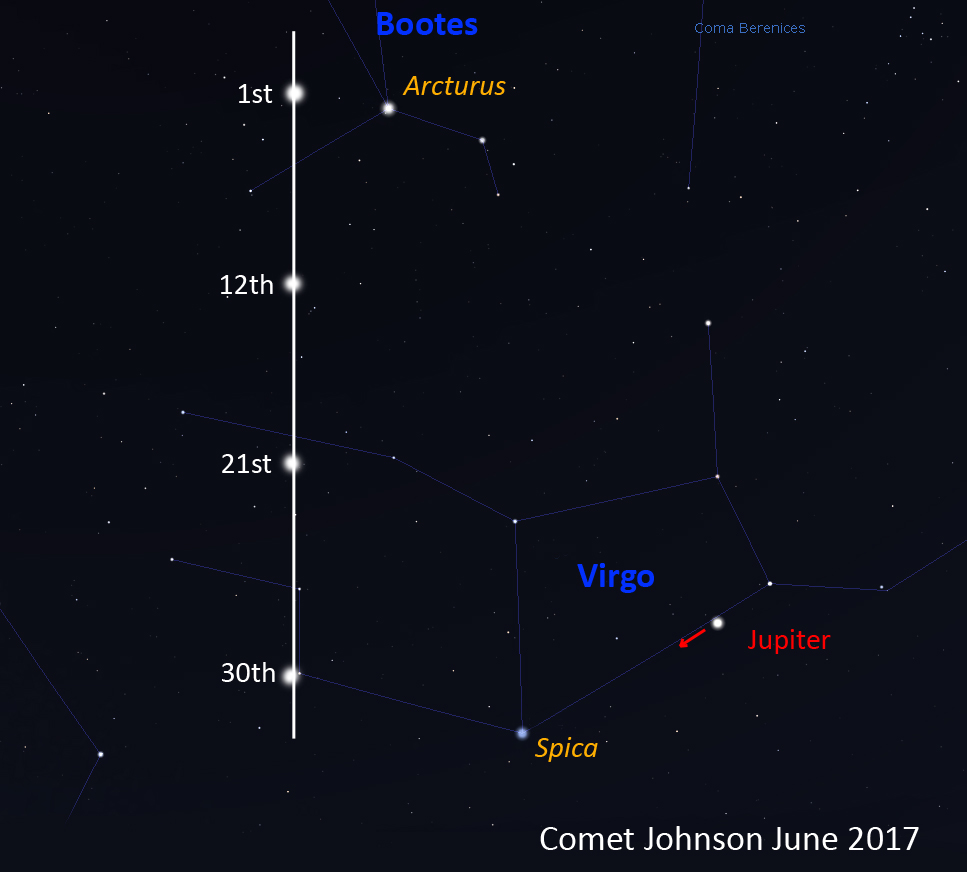

Comet 2015 V2 (Johnson)
Image: Stellarium/IM
On the 12 June but, sadly, close to Full Moon, Comet Johnson is at perihelion lying at a distance of 1.64 AU from the Sun. On the 1st of June it will lie over to the left of Arcturus in Bootes but passes into Virgo on the 14th. In the latter part of the month with no moonlight to to hinder our view, binoculars or a small telescope could be used to spot Comet Johnson as it move across Virgo. It is expected to reach magnitude +6 so should be easily visible with binoculars. The chart shows its position during the month.
June 3rd and 16th: The Alpine Valley
Alpine Valley region
An interesting valley on the Moon: The Alpine Valley
These are two good nights to observe an interesting feature on the Moon if you have a small telescope. Close to the terminator is the Appenine mountain chain that marks the edge of Mare Imbrium. Towards the upper end you should see the cleft across them called the Alpine valley. It is about 7 miles wide and 79 miles long. As shown in the image a thin rill runs along its length which is quite a challenge to observe. Over the next two nights the dark crater Plato and the young crater Copernicus will come into view. This is a very interesting region of the Moon!
The Alpine valley and the crater Plato
A Messier Object imaged with the Faulkes Telescope: Messier 27 - The Dumbell Nebula
The Dumbell Nebula
Image:Nik Szymanik
Faulkes Telescope North.
The Dumbell Nebula, imaged by Nik Szymanek.
This image was taken using the Faulkes Telescope North by Nik Szymanek - one of the UK's leading astro-photograpers. M27 is a planetary nebula, the result of a "nova" expolsion at the end of the life of a star like our Sun. The core at the centre of the star collapes under gravity until it is about the size of the Earth when "electron degeneracy pressure", resulting from the fact that electrons do not like being squashed too close together, prevents further collapse. This is called a "white dwarf". As the dying ember of a nuclear fusion reactor, they are exceedingly hot, but will gradually cool over time. The outer parts of the star are expelled at high speed into space resulting in the (in this case) spherical nebula surrounding the white dwarf. The field of the view of the CCD array on the Faulkes Telesocpe is a little too small to encompass the whole nebula. Once, with a 16 inch telescope under perfect conditions, I visually observed M27 and its central part appeared a vivid iridescent green - the only time I have ever seen colour in a deep sky object!
Learn more about the Faulkes Telescopes and how schools can use them: Faulkes Telescope"
Observe the International Space Station
The International Space Station and Jules Verne passing behind the Lovell Telescope on April 1st 2008.
Image by Andrew Greenwood
Use the link below to find when the space station will be visible in the next few days. In general, the space station can be seen either in the hour or so before dawn or the hour or so after sunset - this is because it is dark and yet the Sun is not too far below the horizon so that it can light up the space station. As the orbit only just gets up the the latitude of the UK it will usually be seen to the south, and is only visible for a minute or so at each sighting. Note that as it is in low-earth orbit the sighting details vary quite considerably across the UK. The NASA website linked to below gives details for several cities in the UK. (Across the world too for foreign visitors to this web page.)
Note: I observed the ISS three times recently and was amazed as to how bright it has become.
Find details of sighting possibilities from your location from: Location Index
See where the space station is now: Current Position
The Moon
The Moon at 3rd Quarter. Image, by Ian Morison, taken with a 150mm Maksutov-Newtonian and Canon G7.
Just below the crator Plato seen near the top of the image is the mountain "Mons Piton". It casts a long shadow across the maria from which one can calculate its height - about 6800ft or 2250m.
| new moon |
first quarter |
full moon |
last quarter |
`
| June 24th |
June 1st |
June 9th |
June 17th |
Some Lunar Images by Ian Morison, Jodrell Bank Observatory: Lunar Images
A World Record Lunar Image
The 9 day old Moon.
To mark International Year of Astronomy, a team of British astronomers have made the largest lunar image in history and gained a place in the Guinness Book of Records! The whole image comprises 87.4 megapixels with a Moon diameter of 9550 pixels. This allows details as small as 1km across to be discerned! The superb quality of the image is shown by the detail below of Plato and the Alpine Valley. Craterlets are seen on the floor of Plato and the rille along the centre of the Alpine valley is clearly visible. The image quality is staggering! The team of Damian Peach, Pete lawrence, Dave Tyler, Bruce Kingsley, Nick Smith, Nick Howes, Trevor Little, David Mason, Mark and Lee Irvine with technical support from Ninian Boyle captured the video sequences from which 288 individual mozaic panes were produced. These were then stitched together to form the lunar image.
Plato and the Alpine Valley.
Please follow the link to the Lunar World Record website and it would be really great if you could donate to Sir Patrick Moore's chosen charity to either download a full resolution image or purchase a print.
The Planets
A montage of the Solar System. JPL / Nasa
Jupiter
A Cassini image of Jupiter . Nasa
Jupiter. Now two months after opposition, Jupiter still dominates the late evening sky shining in the south to southwest after nightfall. It sets at about 3 am BST as June begins and by about 1 am at its end. As the month progresses its brightness falls from -2.3 to -2 .0 magnitudes as its angular size falls from 41 to 37 arc seconds. It lies in Virgo some 11 degrees to the west of Spica, Alpha Virginis, and halts its westwards retrograde motion on the 11th as it begins its, initially slow, eastwards march back towards Spica. It will pass Spica on September 11th on its journey towards the lower parts of the ecliptic. Next year it will only reach an elevation of some 25 degrees when due south and, in the following two years, just 18 degrees before it moves back towards the more northerly parts of the ecliptic. Even so, with a small telescope one should easily be able to see the equatorial bands in the atmosphere, sometimes the Great Red Spot and up to four of the Gallilean moons as they weave their way around it.
See highlights above.
Saturn
The planet Saturn. Cassini - Nasa
Saturn comes into opposition on June 11th and so, then, will be at its highest elevation due south at around 1 am BST and will be visible throughout the short night. It shines at magnitude 0.1 all month and has an angular size of 18.3 arc seconds. With an angle of 26.5 degrees inclination to the line of sight the rings are virtually as open as they ever can be. It is sad that Saturn, now lying in the southern part of Ophiuchus between Sagittarius and Scorpius, only reaches an elevation of ~17 degrees above the horizon when due south so hindering our view of this most beautiful planet. If imaging Saturn (or Jupiter), Registax 6 has a tool to align the red, green and blue colour images to largely remove atmospheric dispersion from the image. At somewhat over £100 one can purchse the ZWO atmospheric dispersion corrector which uses two, contra rotating, prisms to carry out an even better correction - and which can also be used for visual observing.
See highlight above.
Mercury
Messenger image of Mercury Nasa
Mercury is lost in the glare of the Sun for most of the month before it makes a modest evening apparition in July. It might just be spotted with binoculars very low in the west after sunset at the very end of the month. But please do not use them until after the Sun has set.
Mars
A Hubble Space Telescope image of Mars.
Jim Bell et al. AURA / STScI / Nasa
Mars. Following a two year long apparition, Mars finally slips into the Sun's glare in the first week of June when its salmon-pink disk might just be picked out in the west-northwest.
Venus
Venus showing some cloud structure
Venus is visible in the east before dawn this month, reaching its greatest elongation (46 degrees west of the Sun) on the 3rd of June. It magnitude dims slightly during the month from -4.5 to -4.2 as its angular diameter shrinks from ~24 to 18 arc seconds. However, at the same time, its illuminated phase increases from 48 to 62% which explains why the magitude does not drop too much. Even though it will be moving back towards the Sun, as the angle of the ecliptic to the horizon increases at this time of the year, it elevation before sunrise will continue to increase until August.
See highlight above.
Radar image showing surface features
Find more planetary images and details about the Solar System: The Solar System
The Stars
The late evening June Sky
The June Sky in the south - late evening.
This map shows the constellations seen towards the south at about 11pm BST in mid June. High over head towards the north (not shown on the chart) lies Ursa Major. As one moves southwards one first crosses the constellation Hercules with its magnificent globular cluster, M13, and then across the large but not prominent constellation Ophiucus until, low above the southern horizon lie Sagittarius and Scorpio. To the right of Hercules lie the arc of stars making up Corona Borealis and then Bootes with its bright star Arcturus. Rising in the east is the beautiful region of the Milky Way containing both Cygnus and Lyra. Below is Aquilla. The three bright stars Deneb (in Cygnus), Vega (in Lyra) and Altair (in Aquila) make up the "Summer Triangle".
The constellation Ursa Major
Ursa Major
The stars of the Plough, shown linked by the thicker lines in the chart above, form one of the most recognised star patterns in the sky. Also called the Big Dipper, after the soup ladles used by farmer's wives in America to serve soup to the farm workers at lunchtime, it forms part of the Great Bear constellation - not quite so easy to make out! The stars Merak and Dubhe form the pointers which will lead you to the Pole Star, and hence find North. The stars Alcor and Mizar form a naked eye double which repays observation in a small telescope as Mizar is then shown to be an easily resolved double star. A fainter reddish star forms a triangle with Alcor and Mizar.
Ursa Major contains many interesting "deep sky" objects. The brightest, listed in Messier's Catalogue, are shown on the chart, but there are many fainter galaxies in the region too. In the upper right of the constellation are a pair of interacting galaxies M81 and M82 shown in the image below. M82 is undergoing a major burst of star formation and hence called a "starburst galaxy". They can be seen together using a low power eyepiece on a small telescope.
M81 and M82
Another, and very beautiful, galaxy is M101 which looks rather like a pinwheel firework, hence its other name the Pinwheel Galaxy. It was discovered in1781 and was a late entry to Messier's calalogue of nebulous objects. It is a type Sc spiral galaxy seen face on which is at a distance of about 24 million light years. Type Sc galaxies have a relativly small nucleus and open spiral arms. With an overall diameter of 170,000 light it is one of the largest spirals known (the Milky Way has a diameter of ~ 130,000 light years).
M101 - The Ursa Major Pinwheel Galaxy
Though just outside the constellation boundary, M51 lies close to Alkaid, the leftmost star of the Plough. Also called the Whirlpool Galaxy it is being deformed by the passage of the smaller galaxy on the left. This is now gravitationally captured by M51 and the two will eventually merge. M51 lies at a distance of about 37 million light years and was the first galaxy in which spiral arms were seen. It was discovered by Charles Messier in 1773 and the spiral structure was observed by Lord Rosse in 1845 using the 72" reflector at Birr Castle in Ireland - for many years the largest telescope in the world.
M51 - The Whirlpool Galaxy
Lying close to Merak is the planetary nebula M97 which is usually called the Owl Nebula due to its resemblance to an owl's face with two large eyes. It was first called this by Lord Rosse who drew it in 1848 - as shown in the image below right. Planetary nebulae ar the remnants of stars similar in size to our Sun. When all possible nuclear fusion processes are complete, the central core collpses down into a "white dwarf" star and the the outer parts of the star are blown off to form the surrounding nebula.
M97 - The Owl Planetary Nebula Lord Rosse's 1848 drawing of the Owl Nebula
The constellation Hercules
Hercules
Between the constellation Bootes and the bright star Vega in Lyra lies the constellation Hercules.The Red Giant star Alpha Herculis or Ras Algethi, its arabic name, is one of the largest stars known, with a diameter of around 500 times that of our Sun. In common with most giant stars it varies its size, changing in brightness as it does so from 3rd to 4th magnitude. Lying along one side of the "keystone" lies one of the wonders of the skies, the great globular cluster, M13. Just visible to the unaided eye on a dark clear night, it is easily seen through binoculars as a small ball of cotten wool about 1/3 the diameter of the full Moon. The brightness increases towards the centre where the concentration of stars is greatest. It is a most beautiful sight in a small telescope. It contains around 300,000 stars in a region of space 100 light years across, and is the brightest globular cluster that can be seen in the northern hemisphere.
The Globular Cluster M13 in Hercules. Image by Yuugi Kitahara
The constellation Virgo
Virgo
Virgo, in the south-east after sunset this month, is not one of the most prominent constellations, containing only one bright star, Spica, but is one of the largest and is very rewarding for those with "rich field" telescopes capable of seeing the many galaxies that lie within its boundaries. Spica is, in fact, an exceedingly close double star with the two B type stars orbiting each other every 4 days. Their total luminosity is 2000 times that of our Sun. In the upper right hand quadrant of Virgo lies the centre of the Virgo Cluster of galaxies. There are 13 galaxies in the Messier catalogue in this region, all of which can be seen with a small telescope. The brightest is the giant elliptical galaxy, M87, with a jet extending from its centre where there is almost certainly a massive black hole into which dust and gas are falling. This releases great amounts of energy which powers particles to reach speeds close to the speed of light forming the jet we see. M87 is also called VIRGO A as it is a very strong radio source.
The Giant Elliptical Galaxy M87 HST image showing the jet
Below Porrima and to the right of Spica lies M104, an 8th magnitude spiral galaxy about 30 million light years away from us. Its spiral arms are edge on to us so in a small telescope it appears as an elliptical galaxy. It is also known as the Sombrero Galaxy as it looks like a wide brimmed hat in long exposure photographs.
M104 - The Sombrero Galaxy
The constellations Lyra and Cygnus
Lyra and Cygnus
This month the constellations Lyra and Cygnus are rising in the East as darkness falls with their bright stars Vega, in Lyra, and Deneb, in Cygnus, making up the "summer triangle" of bright stars with Altair in the constellation Aquila below. (see sky chart above)
Lyra
Lyra is dominated by its brightest star Vega, the fifth brightest star in the sky. It is a blue-white star having a magnitude of 0.03, and lies 26 light years away. It weighs three times more than the Sun and is about 50 times brighter. It is thus burning up its nuclear fuel at a greater rate than the Sun and so will shine for a correspondingly shorter time. Vega is much younger than the Sun, perhaps only a few hundred million years old, and is surrounded by a cold,dark disc of dust in which an embryonic solar system is being formed!
There is a lovely double star called Epsilon Lyrae up and to the left of Vega. A pair of binoculars will show them up easily - you might even see them both with your unaided eye. In fact a telescope, provided the atmosphere is calm, shows that each of the two stars that you can see is a double star as well so it is called the double double!
Epsilon Lyra - The Double Double
Between Beta and Gamma Lyra lies a beautiful object called the Ring Nebula. It is the 57th object in the Messier Catalogue and so is also called M57. Such objects are called planetary nebulae as in a telescope they show a disc, rather like a planet. But in fact they are the remnants of stars, similar to our Sun, that have come to the end of their life and have blown off a shell of dust and gas around them. The Ring Nebula looks like a greenish smoke ring in a small telescope, but is not as impressive as it is shown in photographs in which you can also see the faint central "white dwarf" star which is the core of the original star which has collapsed down to about the size of the Earth. Still very hot this shines with a blue-white colour, but is cooling down and will eventually become dark and invisible - a "black dwarf"! Do click on the image below to see the large version - its wonderful!
M57 - the Ring Nebula
Image: Hubble Space telescope
M56 is an 8th magnitude Globular Cluster visible in binoculars roughly half way between Alberio (the head of the Swan) and Gamma Lyrae. It is 33,000 light years away and has a diameter of about 60 light years. It was first seen by Charles Messier in 1779 and became the 56th entry into his catalogue.
M56 - Globular Cluster
Cygnus
Cygnus, the Swan, is sometimes called the "Northern Cross" as it has a distinctive cross shape, but we normally think of it as a flying Swan. Deneb,the arabic word for "tail", is a 1.3 magnitude star which marks the tail of the swan. It is nearly 2000 light years away and appears so bright only because it gives out around 80,000 times as much light as our Sun. In fact if Deneb where as close as the brightest star in the northern sky, Sirius, it would appear as brilliant as the half moon and the sky would never be really dark when it was above the horizon!
The star, Albireo, which marks the head of the Swan is much fainter, but a beautiful sight in a small telescope. This shows that Albireo is made of two stars, amber and blue-green, which provide a wonderful colour contrast. With magnitudes 3.1 and 5.1 they are regarded as the most beautiful double star that can be seen in the sky.
Alberio: Diagram showing the colours and relative brightnesses
Cygnus lies along the line of the Milky Way, the disk of our own Galaxy, and provides a wealth of stars and clusters to observe. Just to the left of the line joining Deneb and Sadr, the star at the centre of the outstretched wings, you may, under very clear dark skys, see a region which is darker than the surroundings. This is called the Cygnus Rift and is caused by the obscuration of light from distant stars by a lane of dust in our local spiral arm. the dust comes from elements such as carbon which have been built up in stars and ejected into space in explosions that give rise to objects such as the planetary nebula M57 described above.
Deneb,the arabic word for "tail", is a 1.3 magnitude star which marks the tail of the swan. It is nearly 2000 light years away and appears so bright only because it gives out around 80,000 times as much light as our Sun. In fact if Deneb where as close as the brightest star in the northern sky, Sirius, it would appear as brilliant as the half moon and the sky would never be really dark when it was above the horizon!
There is a beautiful region of nebulosity up and to the left of Deneb which is visible with binoculars in a very dark and clear sky. Photographs show an outline that looks like North America - hence its name the North America Nebula. Just to its right is a less bright region that looks like a Pelican, with a long beak and dark eye, so not surprisingly this is called the Pelican Nebula. The photograph below shows them well.
The North American Nebula
Brocchi's Cluster An easy object to spot with binoculars in Gygnus is "Brocchi's Cluster", often called "The Coathanger",although it appears upside down in the sky! Follow down the neck of the swan to the star Alberio, then sweep down and to its lower left. You should easily spot it against the dark dust lane behind.
Brocchi's Cluster - The Coathanger
