Down conversion

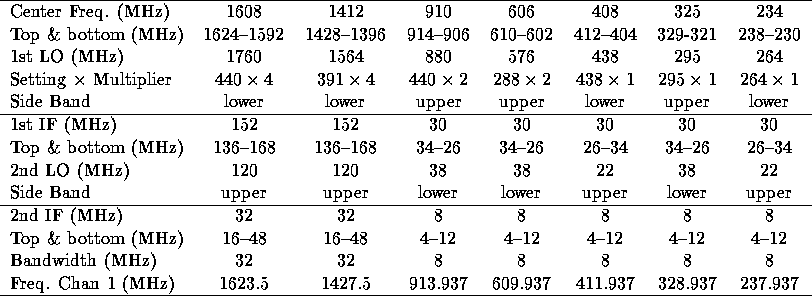

Table 3 shows the common down conversion schemes used for timing and searching at Jodrell. Frequencies given are for the band center. These may change slightly from time to time as we move away from interfering signals. Note the band flips when an upper side band down conversion is done.

   table57
Table 3: Frequency relationships in the Lovell receivers
