Lens System Summary
B2114+022 was discovered in the JVAS survey, although difficulties in confirming it as a lens system held back publication of its discovery. As argued in Augusto et al. and Chae, Mao and Augusto, the system is an example of multi-plane lensing, where two galaxies at different redshifts lens the background source. The nearer lens (G1) is a post-starburst (E+A) galaxy, while the more distant galaxy (G2) appears to be an elliptical. Components A and D are regarded as the multiple images of the background source, while B and C are considered to be emission connected with G1.
|
This Lens System
|
Lens name
|
B2114+022
|
|
Survey
|
JVAS
|
|
Images
|
2
|
|
B1950.0 coords
|
21h14m18.745s
|
02°13'11.040"
|
|
J2000.0 coords
|
21h16m50.740s
|
02°25'46.270"
|
|
Lens System Structure and Labelling

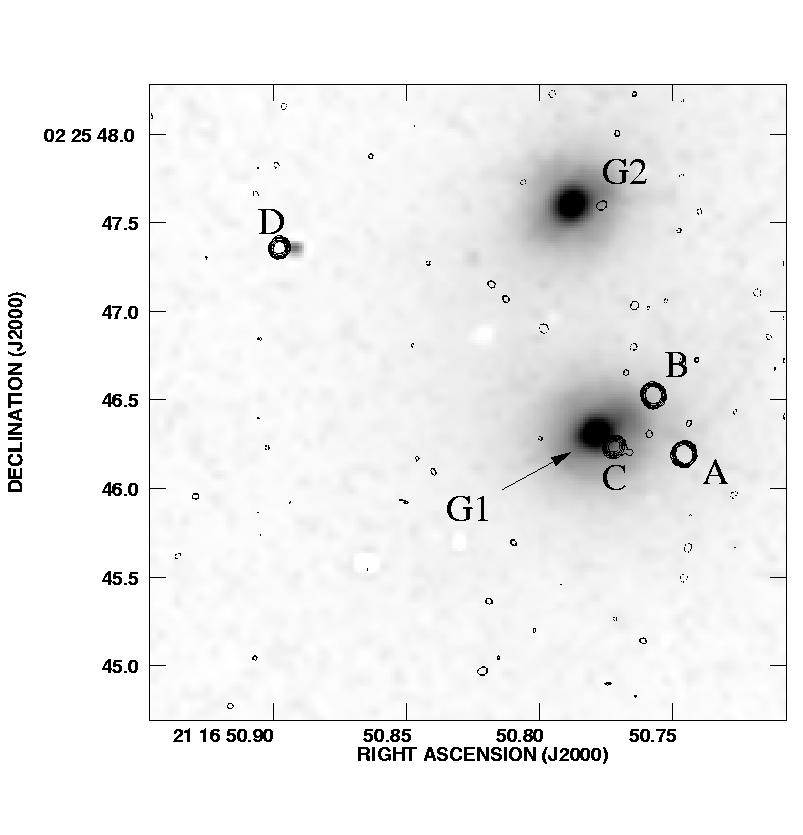

Image labelling for this lens (RA increases to the left, declination increases upwards)
|
Image/Lens Positions
|
Image/Lens
|
Relative Position
|
|
East (mas)
|
North (mas)
|
|
A
|
0.0
|
0.0
|
|
B
|
175±1
|
333±1
|
|
C
|
397±1
|
43±1
|
|
D
|
2286±1
|
1158±2
|
|
G1
|
555±10
|
40±10
|
|
G2
|
700±10
|
1336±10
|
|
Image/Lens Separations
|
Separation (mas)
|
|
Component
|
A
|
B
|
C
|
D
|
G1
|
G2
|
|
A
|
|
376.2
|
399.3
|
2562.6
|
556.4
|
1508.3
|
|
B
|
376.2
|
|
365.2
|
2266.5
|
479.8
|
1132.1
|
|
C
|
399.3
|
365.2
|
|
2193.5
|
158.0
|
1328.0
|
|
D
|
2562.6
|
2266.5
|
2193.5
|
|
2060.7
|
1596.0
|
|
G1
|
556.4
|
479.8
|
158.0
|
2060.7
|
|
1304.1
|
|
G2
|
1508.3
|
1132.1
|
1328.0
|
1596.0
|
1304.1
|
|
|
Position angle (°)
|
|
Component
|
A
|
B
|
C
|
D
|
G1
|
G2
|
|
A
|
|
-152.3
|
-96.2
|
-116.9
|
-94.1
|
-152.3
|
|
B
|
27.7
|
|
-37.4
|
-111.3
|
-52.4
|
-152.4
|
|
C
|
83.8
|
142.6
|
|
-120.6
|
-88.9
|
-166.8
|
|
D
|
63.1
|
68.7
|
59.4
|
|
57.1
|
96.4
|
|
G1
|
85.9
|
127.6
|
91.1
|
-122.9
|
|
-173.6
|
|
G2
|
27.7
|
27.6
|
13.2
|
-83.6
|
6.4
|
|
|

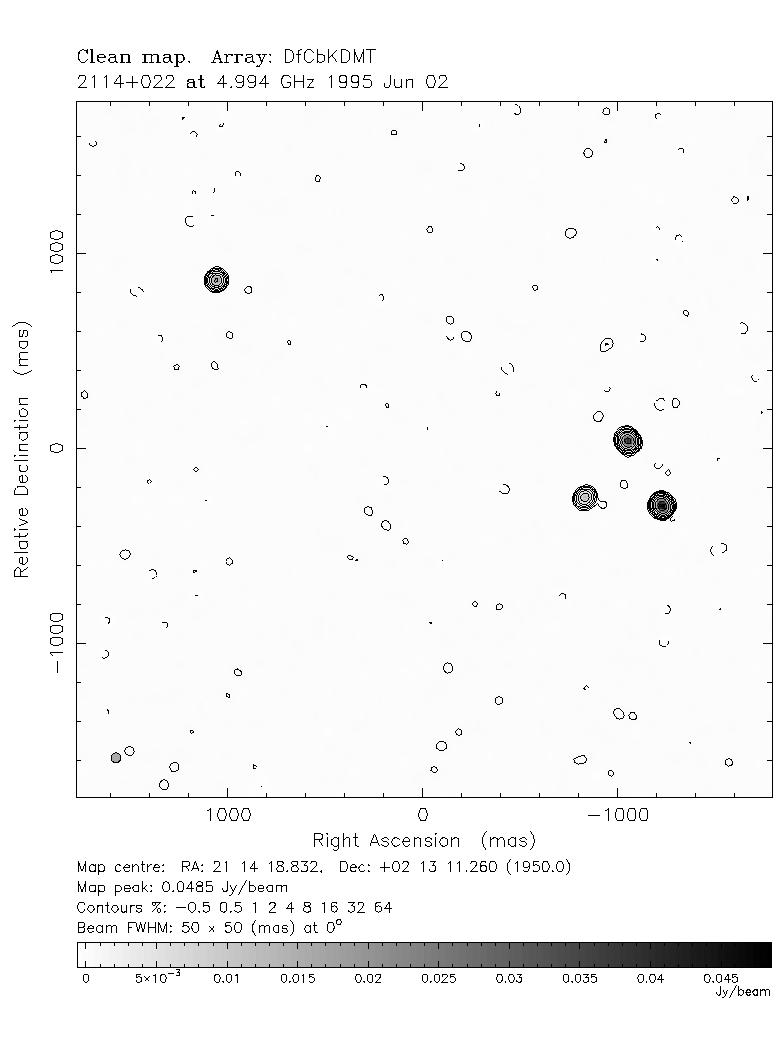

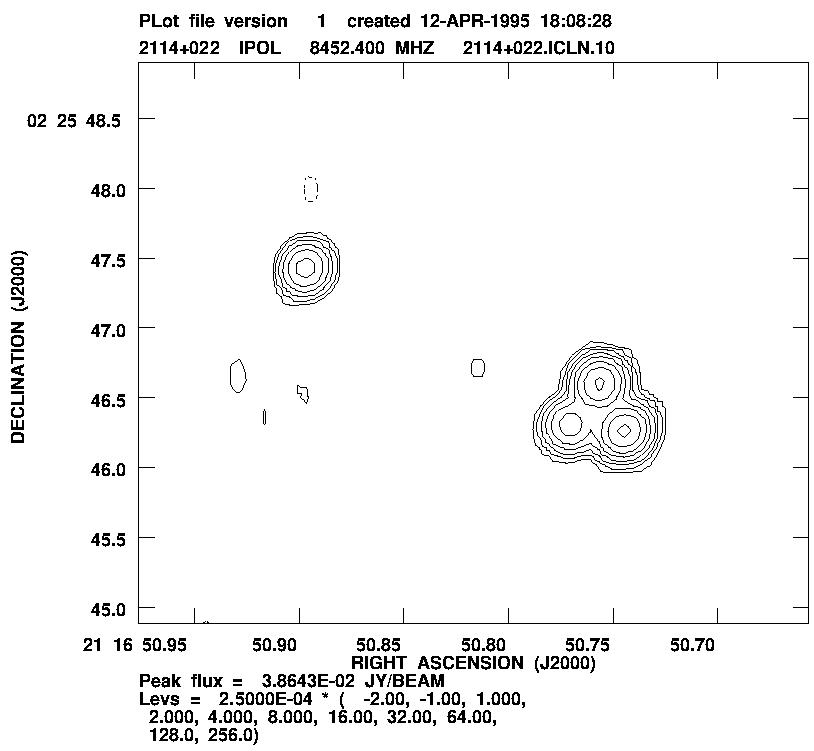

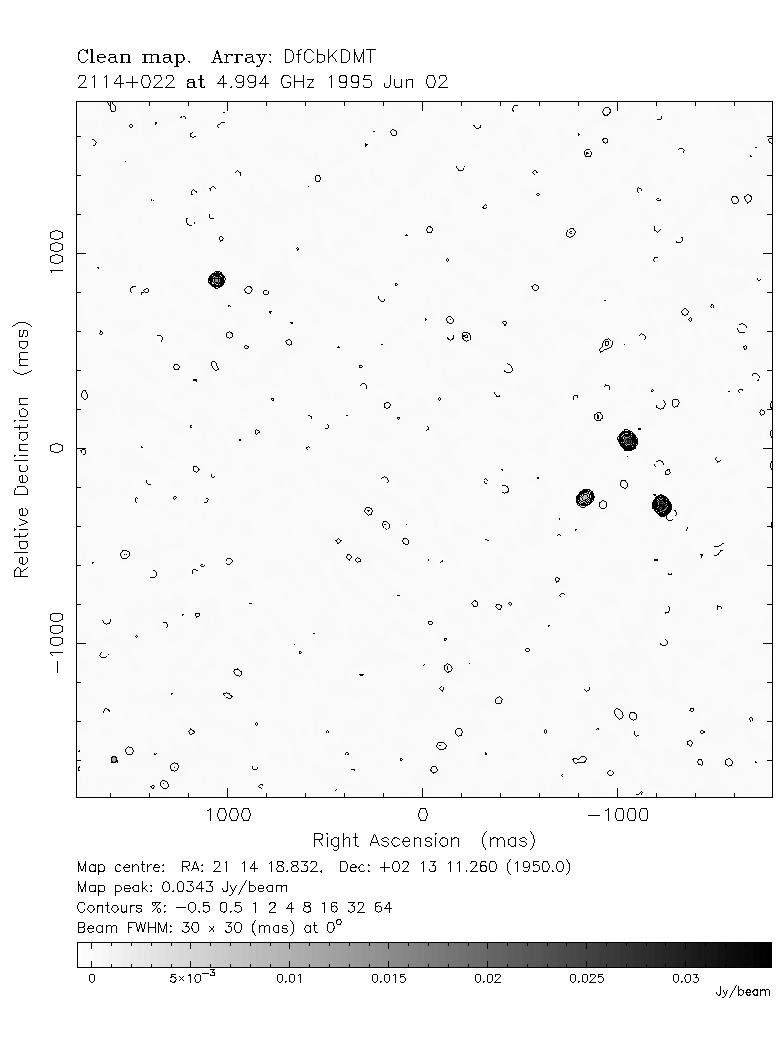

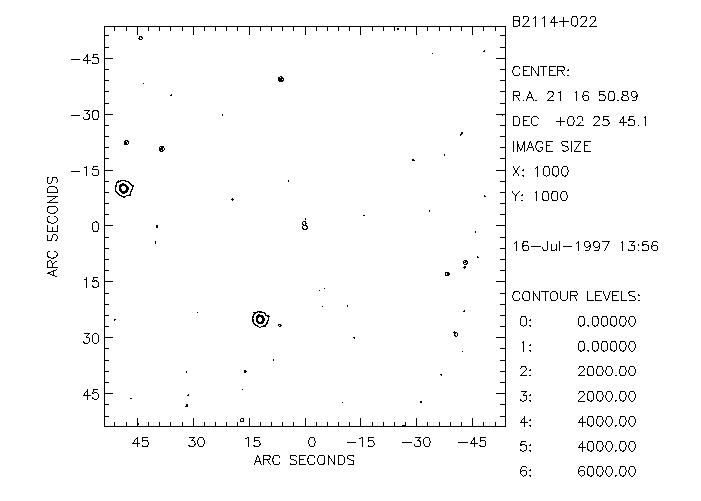

Maps and Images
Click on an image to see a larger JPEG version, or click on the accompanying text to
download a gzipped FITS or PostScript file of the map or image. The images and maps are
available in one gzipped file here.
To see a DSS image of the region around this lens, click here - note that you will have to start the search manually by clicking on the 'Search' button.
|

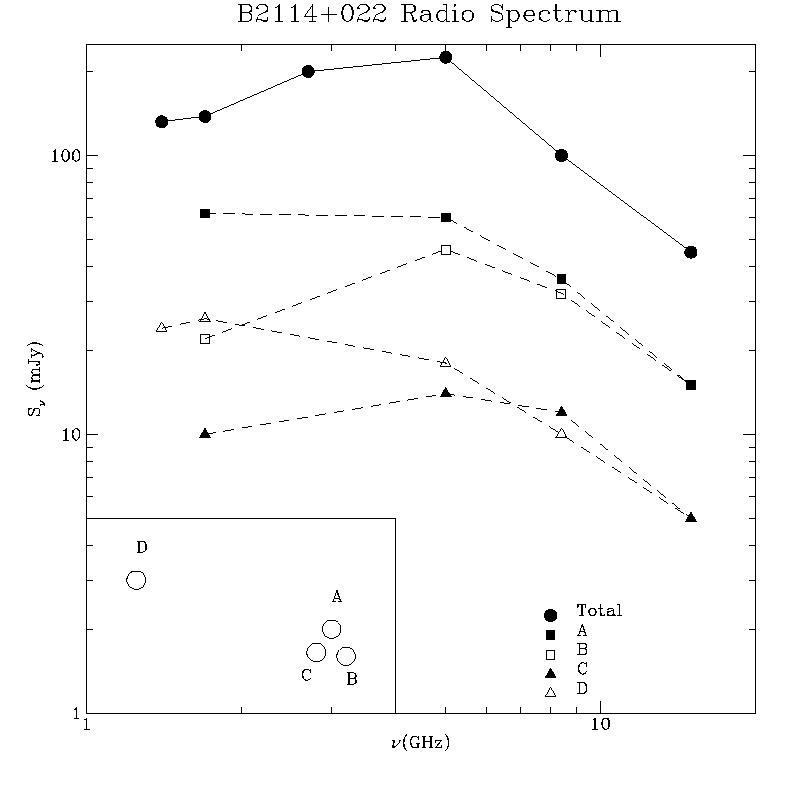

Radio Flux Densities
|
Component
|
Flux density (mJy)
|
|
1.6 GHz
|
1.6 GHz
|
5 GHz
|
5 GHz
|
5 GHz
|
8.4 GHz
|
15 GHz
|
|
A
|
73.2±2
|
45
|
44
|
66.0±2
|
65
|
38.0±1
|
18.8±1
|
|
B
|
32.6±2
|
28
|
37
|
53.4±2
|
52
|
36.2±1
|
18.5±1
|
|
C
|
13.0±1
|
20
|
|
16.1±1
|
16
|
13.1±1
|
6.4±1
|
|
D
|
29.6±1
|
26
|
16
|
20.4±1
|
21
|
12.5±1
|
7.1±1
|
|
Flux errors
|
|
|
|
|
|
|
|
|
Resolution (mas)
|
180
|
20
|
3
|
50
|
50
|
200
|
110
|
Map noise level
(mJy/beam)
|
|
0.075
|
|
|
|
|
|
|
Instrument
|
MERLIN
|
EVN+MERLIN
|
VLBA
|
MERLIN
|
MERLIN
|
VLA
|
VLA
|
|
Date observed
|
1993/09/27
|
1997/05/31
|
1995/11/12
|
1995/06/02
1995/06/04
1995/06/14
1996/12/26
|
1995/06/02
|
1992/10/18
1995/08/08
1995/08/24
|
1995/08/08
1995/08/24
|
|
Reference
|
[2]
|
[2]
|
[2]
|
[2]
|
[2]
|
[2]
|
[2]
|
|
Sub-millimetre Flux Densities
|
Component
|
Flux density (mJy)
|
|
850 μm
|
|
Total
|
<4.3
|
Estimated
cal. error
|
5-10%
|
|
Instrument
|
SCUBA (JCMT)
|
|
Date observed
|
1999-2001
|
|
Reference
|
[4]
|
|

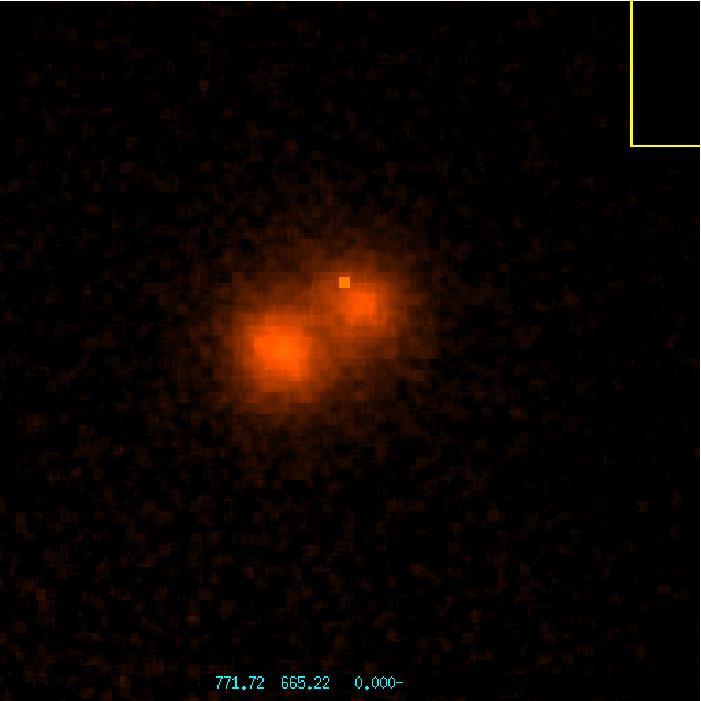

Optical Imaging
|
Component
|
Brightness (Magnitudes)
|
|
K
|
V (555nm)
|
I (814nm)
|
H (F160W)
|
|
G1
|
|
20.6±0.1
|
19.0±0.1
|
17.0±0.1
|
|
G2
|
|
21.9±0.1
|
19.5±0.1
|
17.3±0.1
|
|
Radio Images
|
|
|
>25
|
>23
|
|
Instrument
|
NIRC (Keck)
|
WFPC2 (HST)
|
WFPC2 (HST)
|
NICMOS (HST)
|
|
Integration time
|
20 min
|
1000 sec
|
3000 sec
|
5250 sec
|
|
PSF size (arcsec)
|
0.8
|
0.05
|
0.05
|
0.13
|
|
Pixel scale (mas/pixel)
|
|
50
|
50
|
130
|
|
Date observed
|
1996/07/31
|
1997/07/03
|
1997/07/03
|
1997/08/28
|
|
Reference no.
|
[2]
|
[2]
|
[2]
|
[2]
|
|

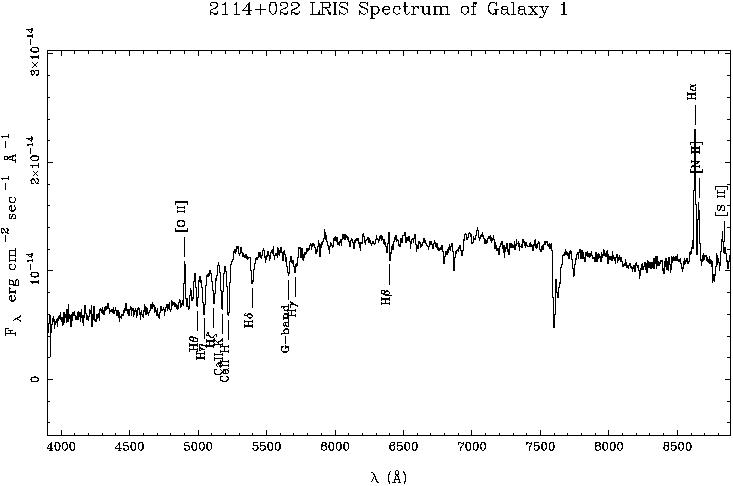

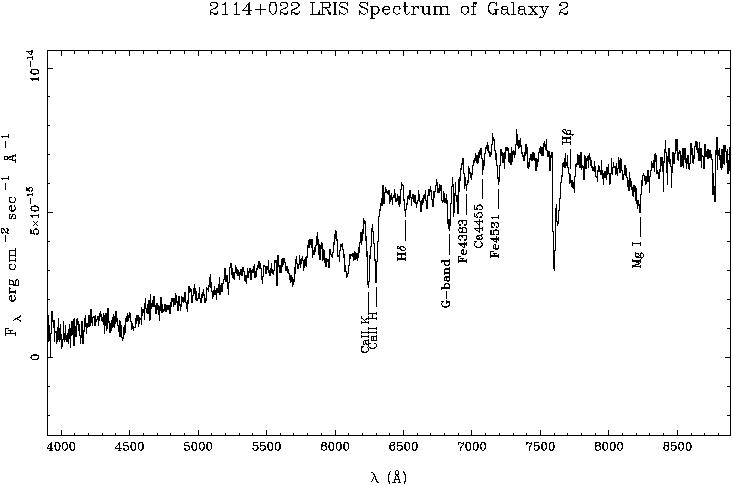

Redshifts
|
Object
|
Redshift
|
Instrument
|
Date Observed
|
Reference
|
|
G1
|
0.3157±0.0003
|
LRIS (Keck II)
|
1997/07/26
|
[2]
|
|
G2
|
0.5883±0.0003
|
LRIS (Keck II)
|
1997/07/26
|
[2]
|
|
Lens Models
Click on the model's reference number to go to the relevant paper's abstract on ADS.
[2] Augusto et al. use two models; SIS (G1) + external shear (G2), and a single SIE (G1). Neither are satisfactory. Both have zero D.O.F. Both suggest that any external shear is not solely due to G2.
[3] Chae, Mao and Augusto undertake extensive modelling of this lens system, treating it as a case of multiple-plane lensing.
|
Notes
Multi-plane lens?
No evidence for variability above 10% level over several years.
Astrometry obtained using NOT CCD image and Carlsberg Automatic Meridian Circle measurements. Estimated NICMOS H/MERLIN 5GHz data registration error is 0.1 arcsec.
Component D coincides with single bad NICMOS pixel, as identified in NICMOS images of other lenses.
Components A and D have similar surface brightnesses. B and C have similar surface brightnesses (different from A and D). A and D appear <10mas in size, while B and C are extended on >10mas scales.
G1 classified as a starburst (E+A) galaxy. G2 is an elliptical galaxy.
No sign of optical or IR emission from components A to D down to I = 25 and H = 23. D is separated from G1 by 2 arcsec, so absorption of emission from D by G1 considered unlikely.
|
References
Click here to see the CASTLES data available for this object, or here to search for references on NED. You can go to a paper's abstract on ADS by clicking its reference number.
-
[1] Gravitationally lensed radio sources in the Jodrell Bank-VLA Astrometric Survey, L. J. King et al., Mon. Not. R. Astron. Soc. 307, pp. 225-235 (1999)
-
[2] B2114+022: a distant radio source gravitationally lensed by a starburst galaxy, P. Augusto et al., Mon. Not. R. Astron. Soc. 326, p. 1007 (2001)
-
[3] Modelling the first probable two-plane lens system B2114+022: reproducing two compact radio cores A and D, K.H Chae, S. Mao and P. Augusto, Mon. Not. R. Astron. Soc 326, p. 1015 (2001)
-
[4] A submillimeter survey of gravitationally lensed quasars, R. Barvainis and R. Ivison, Astrophys. J. 571, pp. 712-720 (2002)
|
