Lens System Summary
|
This Lens System
|
Lens name
|
B0827+525
|
|
Survey
|
CLASS
|
|
Images
|
2
|
|
B1950.0 coords
|
08h27m22.357s
|
52°35'27.580"
|
|
J2000.0 coords
|
08h31m05.362s
|
52°25'20.241"
|
|
Lens System Structure and Labelling
Image labelling for this lens (RA increases to the left, declination increases upwards)
|
Image/Lens Positions
|
Image/Lens
|
Relative Position
|
|
East (mas)
|
North (mas)
|
|
A1
|
+1064.02
|
+930.74
|
|
A2
|
+1063.18
|
+929.89
|
|
B1
|
-1074.16
|
-900.40
|
|
B2
|
-1076.43
|
-899.78
|
|
Image/Lens Separations
|
Separation (mas)
|
|
Component
|
A1
|
A2
|
B1
|
B2
|
|
A1
|
|
1.2
|
2815.1
|
2816.4
|
|
A2
|
1.2
|
|
2813.9
|
2815.2
|
|
B1
|
2815.1
|
2813.9
|
|
2.4
|
|
B2
|
2816.4
|
2815.2
|
2.4
|
|
|
Position angle (°)
|
|
Component
|
A1
|
A2
|
B1
|
B2
|
|
A1
|
|
44.7
|
49.4
|
49.5
|
|
A2
|
-135.3
|
|
49.4
|
49.5
|
|
B1
|
-130.6
|
-130.6
|
|
105.3
|
|
B2
|
-130.5
|
-130.5
|
-74.7
|
|
|

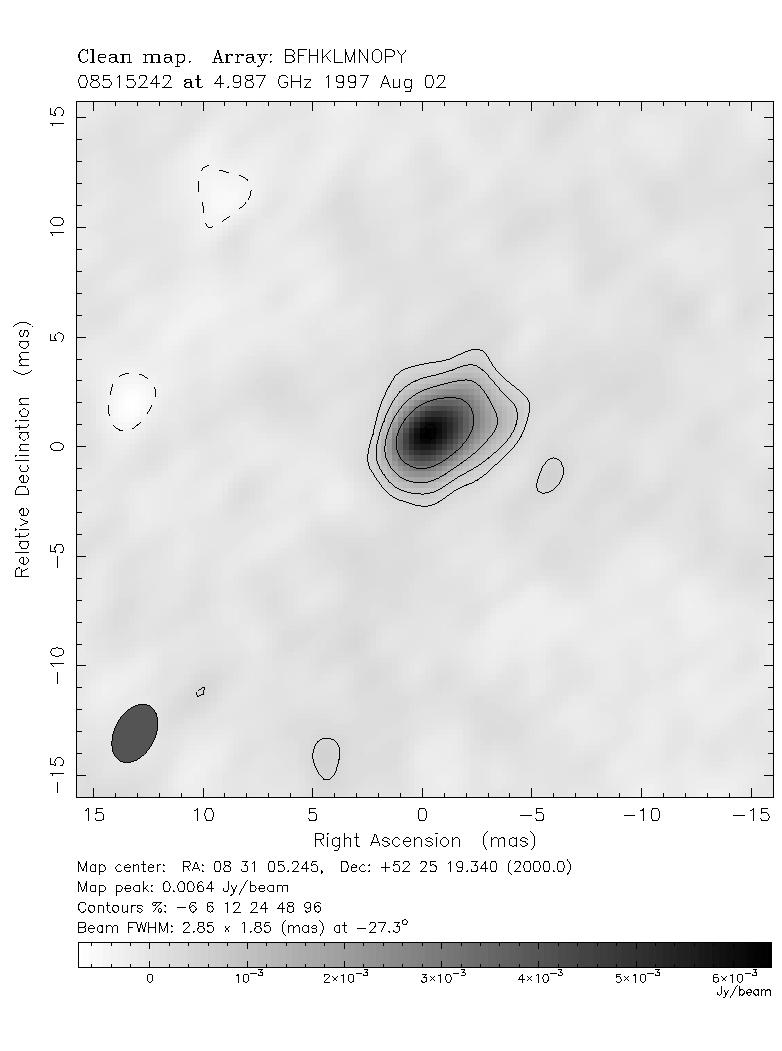

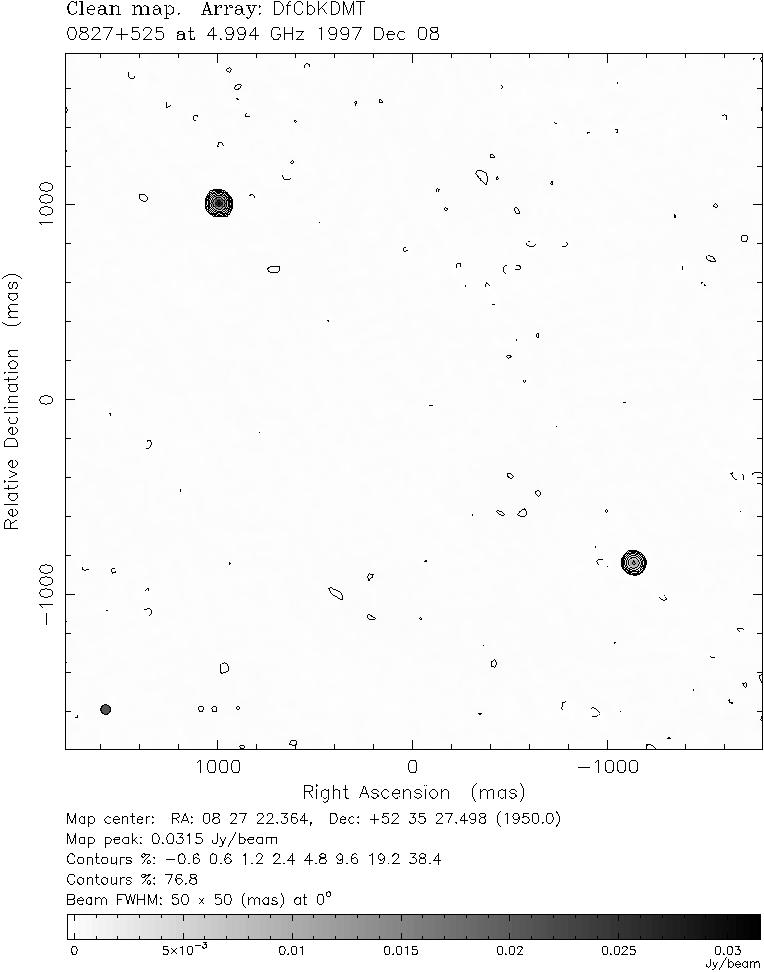

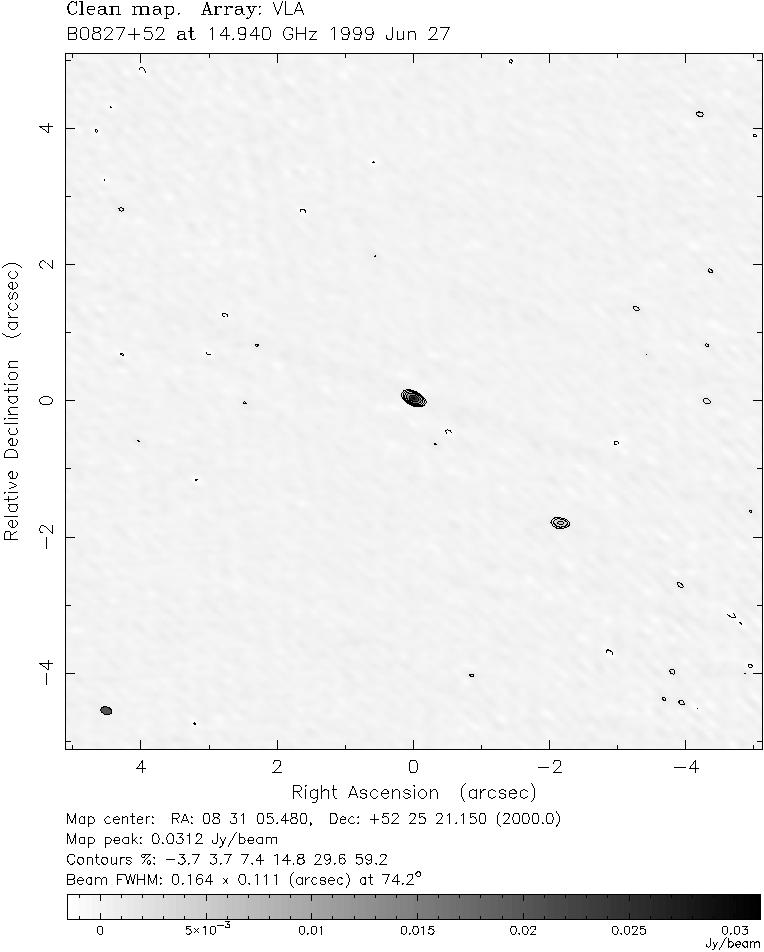

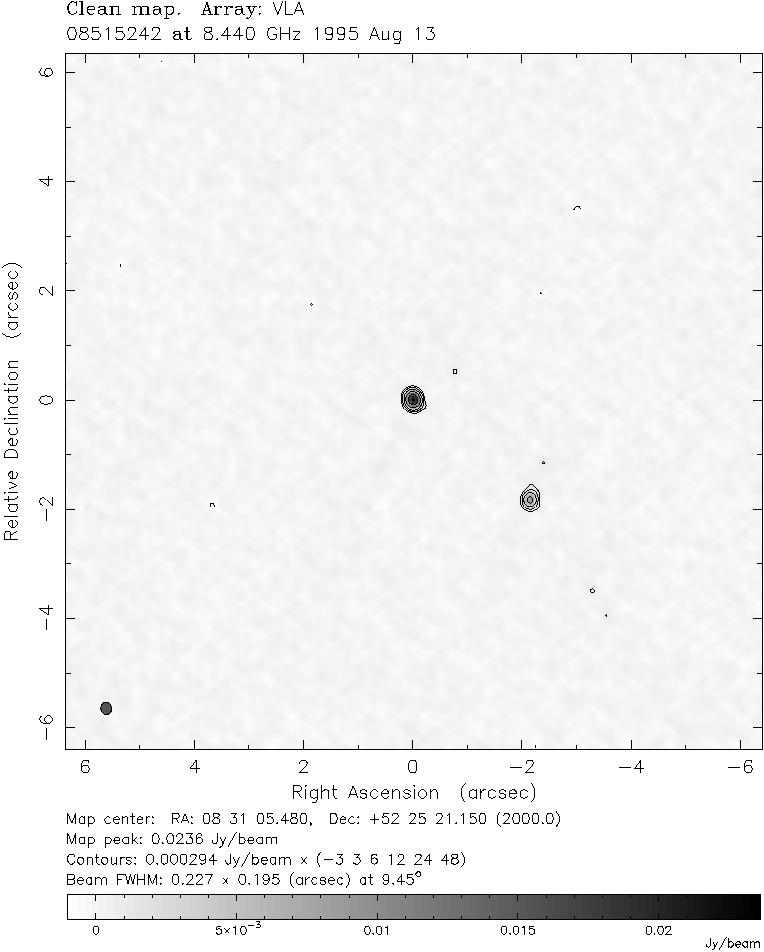

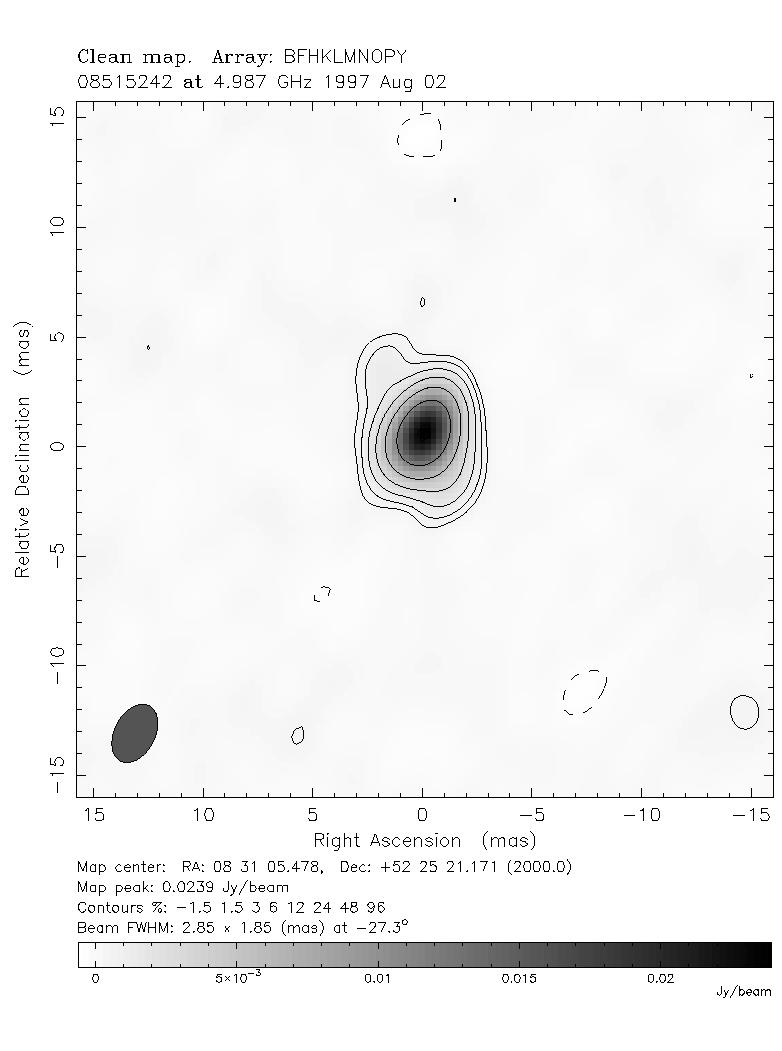

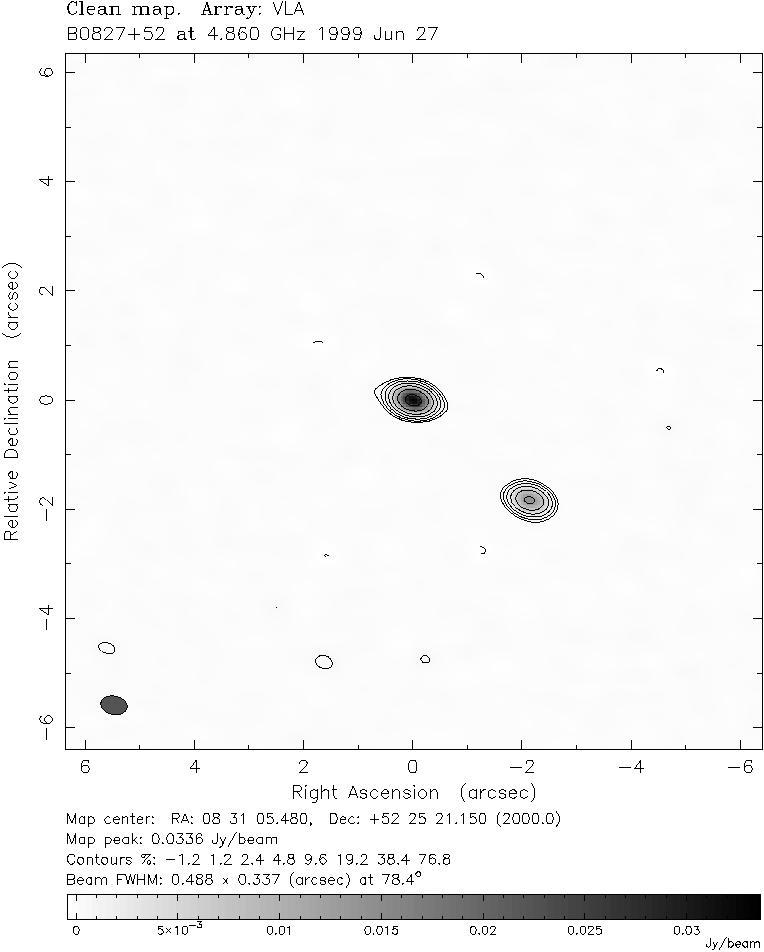

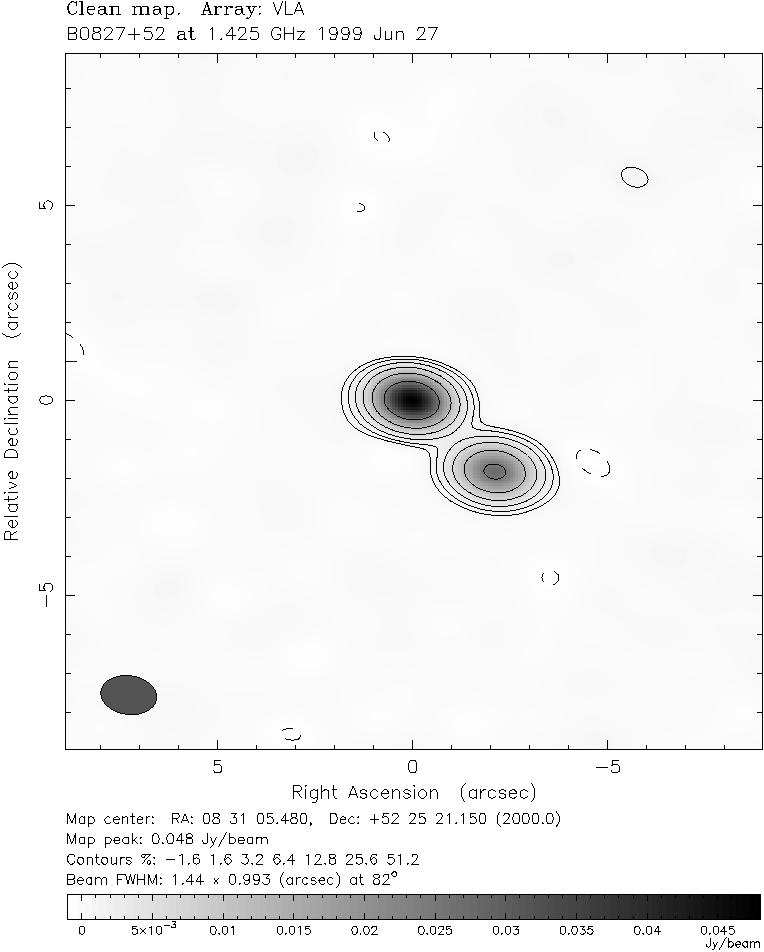

Maps and Images
Click on an image to see a larger JPEG version, or click on the accompanying text to
download a gzipped FITS or PostScript file of the map or image. The images and maps are
available in one gzipped file here.
To see a DSS image of the region around this lens, click here - note that you will have to start the search manually by clicking on the 'Search' button.
|
Radio Flux Densities
|
Component
|
Flux density (mJy)
|
|
1.4 GHz
|
1.4 GHz
|
5 GHz
|
4.9 GHz
|
5 GHz
|
8.5 GHz
|
15 GHz
|
22 GHz
|
|
A
|
|
42.3±0.3
|
33.1±0.1
|
|
~34.0
|
29.7±0.1
|
29.1±0.4
|
|
|
A1
|
|
|
|
24.8±0.1
|
|
|
|
|
|
A2
|
|
|
|
6.8±0.1
|
|
|
|
|
|
B
|
|
27.4±0.3
|
14.0±0.1
|
|
~14.8
|
10.7±0.1
|
8.0±0.4
|
|
|
B1
|
|
|
|
9.3±0.1
|
|
|
|
|
|
B2
|
|
|
|
3.6±0.1
|
|
|
|
|
|
Total
|
71-58
|
|
|
|
|
|
|
|
|
Flux errors
|
|
|
|
|
|
|
|
|
|
Resolution (mas)
|
1500
|
|
|
2.5
|
50
|
|
|
|
Map noise level
(mJy/beam)
|
|
0.256
|
0.133
|
0.123
|
0.063
|
|
0.383
|
|
|
Instrument
|
WSRT
|
VLA
|
VLA
|
VLBA
|
MERLIN
|
VLA
|
VLA
|
VLA
|
|
Date observed
|
1997/07-09
|
1999/06/27
|
1999/06/27
|
1997/08/02
|
1997/12/08
|
1999/06/27
|
1999/06/27
|
|
|
Reference
|
[2]
|
[2]
|
[2]
|
[2]
|
[2]
|
[2]
|
[2]
|
|
|
Sub-millimetre Flux Densities
|
Component
|
Flux density (mJy)
|
|
850 μm
|
450 μm
|
|
Total
|
84±3
|
285±11
|
Estimated
cal. error
|
5-10%
|
5-10%
|
|
Instrument
|
SCUBA (JCMT)
|
SCUBA (JCMT)
|
|
Date observed
|
1999-2001
|
1999-2001
|
|
Reference
|
[3]
|
[3]
|
|

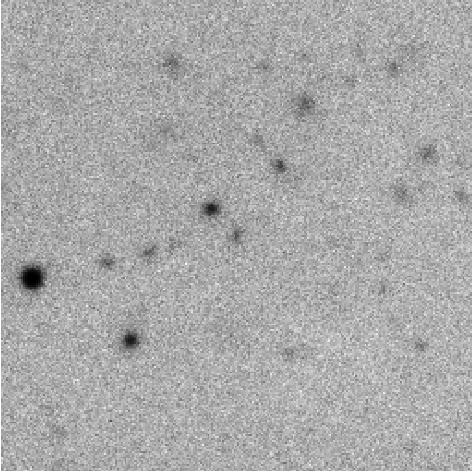

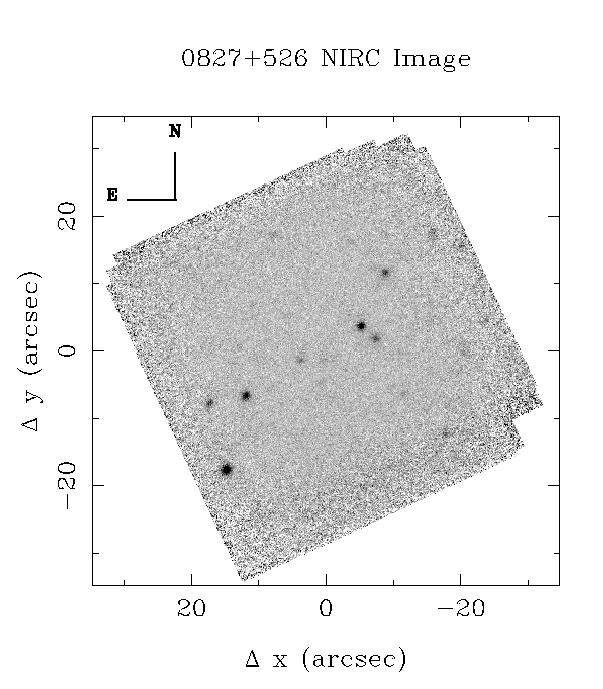

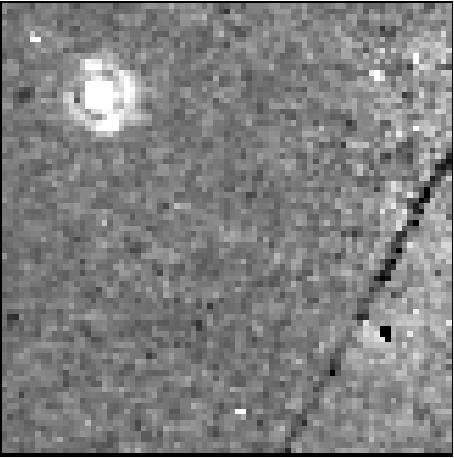

Optical Imaging
|
Component
|
Brightness (Magnitudes)
|
|
K
|
R
|
H
|
|
A
|
Detected
|
~22.0-22.5
|
19.6±0.2
|
|
B
|
"
|
>24
|
22.6±0.2
|
|
Lensing galaxy
|
|
|
|
|
Instrument
|
NIRC (Keck)
|
WHT
|
NIC1/NICMOS (HST)
|
|
Integration time
|
25 exp. of
60 sec each
|
5 exp., 2700 sec
total
|
2624 sec total
|
|
PSF size (arcsec)
|
0.6-0.75
|
1.4-1.5
|
|
|
Pixel scale (mas/pixel)
|
|
|
43
|
|
Date observed
|
1998/05/09
|
1998/05/19
1998/05/20
|
1998/04/18
|
|
Reference no.
|
[2]
|
[2]
|
[2]
|
|

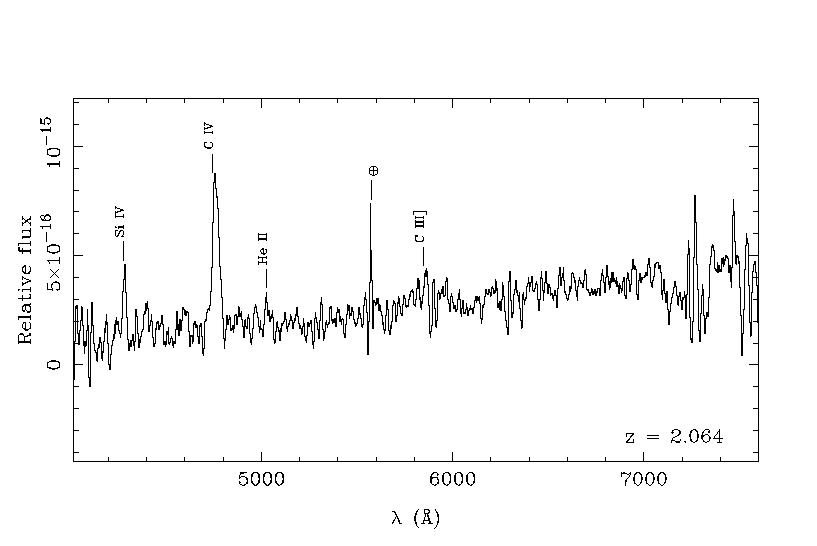

Redshifts
|
Object
|
Redshift
|
Instrument
|
Date Observed
|
Reference
|
|
Source
|
2.064
|
LRIS (Keck II)
|
1998/04/21
|
[2]
|
|
Notes
Possible 'dark lens'.
Probable radio-loud binary quasar.
Variability detected in the system. Variable component could not be identified.
Differing radio and optical brightness ratios.
Weaker radio component appears slightly resolved.
A is compact in optical/near IR images, B appears extended.
|
References
Click here to see the CASTLES data available for this object, or here to search for references on NED. You can go to a paper's abstract on ADS by clicking its reference number.
-
[1] Lensing galaxies: light or dark?, N. Jackson et al., Astron. & Astrophys., v.334, pp. L33-L36 (1998)
-
[2] CLASS 0827+525: 'Dark lens' or binary radio-loud quasar?, L.V.E. Koopmans et al., Astron. & Astrophys., v.361 p. 815 (2000)
-
[3] A submillimeter survey of gravitationally lensed quasars, R. Barvainis and R. Ivison, Astrophys. J. 571, pp. 712-720 (2002)
|
