V.R.I. - Virtual Radio Interferometer

D. J. McKay & N. P. F. McKay

VRI (the Virtual Radio Interferometer) is a Java applet that simulates the operation of a particular technique in radio interferometry called earth rotation aperture synthesis. To the unititiated, this can be a quite complicated process, so this document attemtps to explain some of the fundamental concepts and why the VRI applet is useful to visualise radio interferometry.

Radio telescopes

When people think of astronomy, they often think of the big optical telescopes, mounted in domes high up on mountain peaks. These observatories are built to study the visible light that comes from the stars, galaxies and other bodies that make up the universe. Yet visible light is just a small part of the electromagnetic spectrum, which also includes other types of radiation, such as X-rays, ultra-violet (UV) rays, infra-red and radio waves.

In addition to the optical observatories, other installations have been contructed to examine these other radiations. We shall be concentrating on the radio waves here.

Although there are many different types of radiotelescopes, one of the more common designs is that of the "big dish" - such as that at Parkes (NSW Austrlia) or Jodrell Bank (Cheshire, UK). The idea is that radio waves come in from space, are bounced off the surface of the dish and are focused onto a piece of electronic equipment - the receiver. This converts the radio wave into an electrical signal that can be measured.

These telescopes are huge - many tens of metres across, which raises the obvious question: why build them so big?

Sensitivity and resolution

Radio astronomers want to be able to measure objects in the sky that can be very small or very faint (often they are both). To measure faint objects, increasing the collecting area of the dish will increase the amount of radiation that is focussed onto the receiver. The ability to discertain small detail in sky is called the telescope's resolution and this is governed by the diameter of the dish.

So to build more sensitive telescopes with better resolution, astronomers simply build bigger dishes - up to a certain limit. Due to structural limits, one can only build them so big (up to a hundred metres or so). Certainly dishes of, say, 5 kilometres are out of the question - especially if you want to be able to steer them around to point at different parts of the sky.

Radio interferometry

Radio interferometry is a way of getting the extra diameter, but without huge dish sizes. By connecting a number of small dishes together, astronomers can "simulate" a large dish with the diameter equal to the largest separation between the elements.

If you just have a row of telescopes, such as the Australia Telescope Compact Array, the result is a telescope with great resolution in one direction but poor resolution in the other. However, by waiting for 6 hours, the earth will have rotated the telescope with respect to the object in the sky to provide good resolution in the other direction.

By plotting the virtual tracks that the antennas trace out as the earth rotates, astronomers can gauge how good the telescope will be a resolving objects in the sky. This plot is referred to as the uv-coverage as the two axes are U and V (it has nothing to do with ultra-violet radiation!).

The uv-coverage is not a mask on the image itself, but is a mask on the fourier transform of the image. It shows where on the fourier plane the image has been sampled. It's a bit like putting the uv-coverage mask over the aperture of an optical telescope.

An example

The best way to get a feel for what is going on is to work through some examples.

Start the applet (click on the image to start the applet):

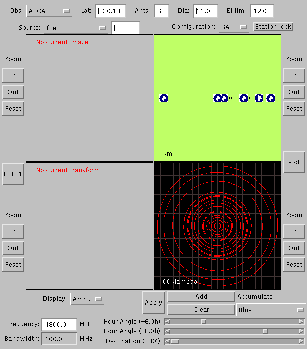

The VRI applet at startup

At the top of the applet is a row of widgets that allow control of some of the observatory parameters. They are (from left to right): the observatory (a number of preset telescopes), the latitude of the observatory (negative latitudes are south of the equator), the number of antennas/elements, the diameter of each antenna (in metres) and the minimum elevation limit of the antennas (in degrees above the horizon).

The VRI observatory parameters

For out tutorial, set the number of antennas to 3. By clicking on the Plot button, the resultant uv-coverage will be displayed in the lower right panel.

The VRI uv-coverage plot The VRI plot button

The white line in the uv-coverage plot shows the scale of the plot. Lambda is the greek letter used to denote wavelength. 100 klambda is therefore 100,000 wavelengths. If the wavelength is 10 millimetres, 100 klambda is 1 kilometre. This means that with the same antenna spacing, doubling the frequency of the observation doubles the resolution of the telescope. The down side is that higher frequency observations are harder to make (electronic, weather and other technical challenges), and at different frequencies, radio objects in the sky might look different in brightness and shape.

Using the mouse, try dragging the antennas about on the observatory layout map. After placing them, click again on the plot button.

VRI antenna positions VRI antenna positions

On the "antenna map", the bar at the bottom left shows the scale in kilometers. On all of the display panels, the zoom buttoms will allow you to look more closely at the graph, map or images.

The VRI zoom buttons

Also, by placing the mouse cursor over one of the displays, the cursor keys can be used to scroll the image about. The PgUp and PgDn keys also zoom the display, to compliment the cursor control.

The uv-coverage is also affected by where the object is in the sky and for how long you observe it. VRI can simulate this with hour angle and declination control.

All objects in the sky will rise every day in the east and set in the west. During that time they will cross an imaginary line called the meridian, which runs from North to South, passing overhead. This line is also referred to as having an hour angle of zero. A full observation usually goes for 12 hours, 6 hours before and after the source crosses the meridian (i.e. transit). VRI can simulate the different amounts of observing time by altering the starting and finishing hour angle of the observation.

VRI antenna positions
VRI hour angle control

VRI antenna positions
VRI hour angle control

The declination (celestial latitude) of the radio source will also affect the resultant uv-coverage.

VRI antenna positions
VRI declination control

VRI antenna positions
VRI declination control

As you can see, a east-west row of antennas will have better coverage of a source near the celestial pole than it will of a source near the equator. Also, because of the minimum elevation limit of the antennas, it might not be possible to always observe for 6 hours either side of transit for sources near the equator. Some sources will only be about the horizon for a short period each day. Try dragging the declination slider further and further away from the pole and watch the hour angle sliders shrink in their range.

Images and transforms

On the left hand side of the VRI applet, there are two panels for images and their transforms. Using the source widget, you can select different objects to examine.

VRI image selection

On selection, the image will appear in the top left display panel. The transform buttons FFT and FFT-1 (FFT is fast fourier transform) will convert the image to the transform and vice versa. Try doing this for different sources. The following is for a (simulated) radio galaxy. The amplitude of the transform is shown here.

VRI FFT buttons VRI image of a source VRI fourier transform of a source

Fourier transforms are, in general, arrays of complex numbers; each pixel having both a phase and amplitude component. The different representations of the fourier plane can be selected in VRI.

VRI fourier plane display type

Using the Apply button, you can blank out the portions of the uv-plane that were not sampled by the observation of the object.

VRI uv-coverage apply button VRI image of a source VRI fourier transform of a source

The image (left) indicates how the source would appear if observed with that particular antenna/time configuration. As you can see, with just 3 antennas, the image is not very good. To improve it, more antennas can be used, or the observation repeated with antennas in different locations. Some observatories have antennas that can be moved, this allows more complete uv-coverage of an object to be built-up over time. VRI allows you to select the different configurations of the ATCA et al..

VRI antenna configuration control

You can simulate the addition of different configurations by clicking on the Add button after each observation is simulated. When the Apply button is clicked, all the accumulated observations will be


The whole idea of the VRI applet is for you, the user, to experiment with various parameters that go into a radio interferometer observation. Here are some experiments to try.
