The Night Sky February 2008
Compiled by Ian Morison
This page, updated monthly, will let you know some of the things that you can look out for in the night sky. It lists the phases of the Moon, where you will see the naked-eye planets and describes some of the prominent constellations in the night sky during the month.
Image of the Month
Mercury as photographed by the Messenger spacecraft
Image: Messenger, NASA JHU APL, CIW
For the first time in very many years, a spacecraft, called Messenger, has flown by Mercury when in took the image above. Later, Messenger will return and finally go into orbit so enabling detailed images of the surface to be taken. In the full resolution image details as small as 10 km in diameter can be seen. This colour image has been made from inages taken through infra-red, red and violet filters.
Highlights of the Month

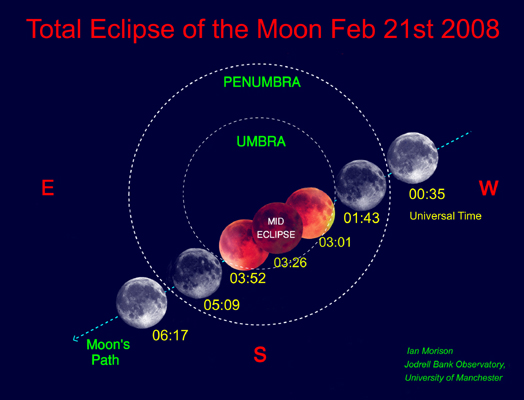

Feb 21st: A total Eclipse of the Moon
Image:Ian Morison - click on to enlarge.
During the early hours of February 21st we will, if clear, be able to witness a total eclipse of the Moon. The diagram above gives the times of immersion into the Earth's penumbra and umbra with the mid-eclipse occuring at 03:26 UT. One might think that the Moon would become invisible, but that is not the case as light refracted through the Earth's atmosphere falls on the Moon. How bright the Moon appears and its colour depends on the amount of dust in the Earth's atmosphere. After a major volcanic event, such as the Mt St. Helens explosion in 1980, there can be so much dust in the atmosphere that little light can pass around the Earth's limb to illuminate the Moon. It thus looks a very dull dark grey. However, when, as is now, there is very little dust in the atmosphere the Moon can look a very beautiful reddish-brown colour as in the image below. Red light is scattered less than blue light in the atmosphere (which is why the sky is blue and the sunlight is reddened when it is near the horizon)so the light that spills around the Earth to illuminate the Moon is reddish in colour.
Image Ian Morison, Jodrell Bank Observatory
Early February: A last chance to see Mars well for a while!
Mars as viewed by spacecraft showing Vallis Marineris (centre) and two of the giant volcanoes (upper left).
Mars high in the sky
On the night of December 24th 2007 Mars was at opposition - that is it will opposite the position of the Sun in the Sky, and thus seen due south at midnight. This was also close to the time, on December 18th, when it was closest to us and hence its disk will have been at its largest. At this opposition it reached just under 16 arc seconds in angular size. Mars will still have an angular size of 12 arc seconds at the beginning of February - so a small telescope will be able to detects features on the surface such as the polar caps and the dark region Syrtis Major - an excellent reason for purchasing a telescope!
However, as Mars's orbit is elliptical, the closest seperation varies from apparition to apparition. On August 27th 2003, the Earth and Mars were as close as they virtually ever get - at least for ~60,000 years, but it was nearly as close in August 13th 1766, August 18th 1845, and August 23rd in 1924. Notice that all these dates were in August. This is not a coincidence as this is when the Earth is at its furthest from the Sun. The closest of all approaches occur when the Earth is furthest from the Sun and Mars is closest to the Sun. At these closest of close approaches, the angular size of Mars reaches 25 arc seconds. This is obviously not the case this time as the Earth is closest to the Sun in the Winter. However, in contrast to 2003 when Mars was rather low in the Sky and the atmosphere hindered our view, Mars is now in Taurus, at almost the highest part of the ecliptic, so although its angular size will be smaller, our view over the last few weeks has been excellent
Mars peaked in brightness in late December at magnitude -1.6 when it outshines the brightest star in the northern hemisphere, Sirius, at -1.4. Mars begins February at magnitude -0.6 but this is now falling rapidly and reaches +0.2 by months end. Over the last few weeks Mars has been travelling westwards from Gemini into Taurus - called retrograde motion due to the Earth passing by on the inside track. But as February began, Mars started its eastwards passage again and it will move back into Gemini at the beginning of March.

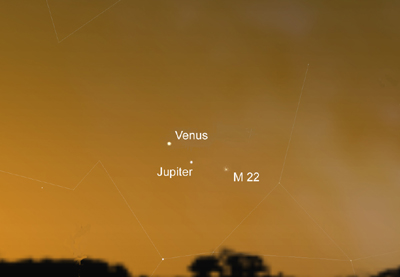

February 1st: look out for the conjunction of Venus and Jupiter - and possibly spot the globular cluster M22.
Conjunction of Venus and Jupiter
Venus and Jupiter will be seen low in the eastern pre-dawn sky at the beginning of February when, on the first, Venus is just 0.6 degrees to the upper left of Jupiter. Venus will be the brighter at -4 magnitudes with Jupiter at -1.9. With binoculars you might also spot the globular cluster M22 - one of the brightest in the sky at magnitude 5.1.
Observe the International Space Station
The International Space Station
Use the link below to find when the space station will be visible in the next few days. In general, the space station can be seen either in the hour or so before dawn or the hour or so after sunset - this is because it is dark and yet the Sun is not too far below the horizon so that it can light up the space station. As the orbit only just gets up the the latitude of the UK it will usually be seen to the south, and is only visible for a minute or so at each sighting. Note that as it is in low-earth orbit the sighting details vary quite considerably across the UK. The NASA website linked to below gives details for several cities in the UK. ( Across the world too for foreign visitors to this web page.)
Find details of sighting possibilities from your location from: Location Index
See where the space station is now: Current Position
The Moon
The Moon at 3rd Quarter. Image, by Ian Morison, taken with a 150mm Maksutov-Newtonian and Canon G7.
Just below the crator Plato seen near the top of the image is the mountain "Mons Piton". It casts a long shadow across the maria from which one can calculate its height - about 6800ft or 2250m.
| new | first quarter | full moon | last quarter |
|---|---|---|---|
| Feb 6th | Feb 13 th | Feb 21th | Feb 28th |
Some Lunar Images by Ian Morison, Jodrell Bank Observatory: Lunar Images
The Planets
A montage of the Solar System. JPL / Nasa
Jupiter
A Cassini image of Jupiter . Nasa
Jupiter may now be glimpsed in the pre-dawn sky. At the beginning of the month it is 30 degrees from the Sun and close to Venus in the sky. It is in conjunction with Venus on the 1st Feb when it lies, below Venus,just under half a degree away. See the highlight above. This is the closest conjunction of the two planets until 2014. By the end of the Month Jupiter is rising 3 hours before the Sun, so will be far higher in the sky before dawn. Its magnitude is ~-2 throughout February and its angular size increass from 32.6 to 34.3 arc seconds through the month.
Saturn
The planet Saturn. Cassini - Nasa
Saturn As February begins, Saturn lies just over 7 degrees down to the lower left of the star Regulus in Leo and rises soon after sunset. It starts the month at magnitude +0.4 with an angular size of ~20 arc seconds. Saturn will not be as bright this coming year as it sometimes is: the rings are closing (just ~ 8 degrees tilt to us and subtending only 5 arc seconds) and thus there is less apparent reflecting area. The rings will be seen (or rather - not seen) edge on in 2009 and it will not be until 2016 that they will be at their widest again. A small telescope will easily show its moon, Titan, and show some bands around the surface. As Saturn gradually rises higher in the sky, it will be easier to make out its surface features.
Mercury
Mariner 10 composite image of Mercury. Nasa
Mercury On the 6th of February, Mercury passes between the Earth and the Sun at what is termed inferior conjunction. By the middle of the month it will just be visible low in the east south-east before dawn.
Binoculars will help - as will its proximity to Venus: for, from the 23rd February, it remain within 3 degrees of Venus for five weeks, so first find Venus low in the pre-dawn sky and you will see Mercury in the same binocular field! On the 23rd February, Mercury will be just a fraction under 1 degree directly above Venus.
Note that the blank region in the image above is simply because this part of Mercury's surface has not yet been imaged in detail. A NASA spacecraft, Mesenger, will fly-by Mercury this January.
Mars
A Hubble Space Telescope image of Mars.
Jim Bell et al. AURA / STScI / Nasa
Mars - See the highlight above.
Venus
Venus showing some cloud structure
Venus lies in the constellation Sagittarius at the beginning of February. As the month progresses, the angular size drops from 12.5 arc seconds to 11.3 arc seconds, but the illuminated area of the surface increases. These two factors which affect its brightness roughly cancel out and the brightness stays throughout the month at -3.9 magnitudes. As it is never that high above the horizon, dispersion in the atmosphere tends to colour its image and it will be seen best in a telescope when a filter is used to observe it at one colour of light such as by the use of a green filter. A narrow band filter, such as an O III filter, will give even cleaner images. See also the highlight above.
Radar image showing surface features
Find more planetary images and details about the Solar System: The Solar System
The Stars
The Mid Evening February Sky
The February Sky in the south - mid evening.
This map shows the constellations seen in the south during the evening. The brilliant constellation of Orion is seen in the south. Moving up and to the right - following the line of the three stars of Orion's belt - brings one to Taurus; the head of the bull being outlined by the V-shaped cluster called the Hyades with its eye delineated by the orange red star Aldebaran. Further up to the right lies the Pleaides Cluster. Towards the zenith from Taurus lies the constellation Auriga, whose brightest star Capella will be nearly overhead. To the upper left of Orion lie the heavenly twins, or Gemini, their heads indicated by the two bright stars Castor and Pollux. Down to the lower left of Orion lies the brightest star in the northern sky, Sirius, in the consteallation Canis Major. Up and to the left of Sirius is Procyon in Canis Minor. Rising in the East is the constellation of Leo, the Lion, with the planet Saturn up and to the right of Regulus its brightest star. Continuing in this direction towards Gemini is the faint constellation of Cancer with its open cluster Praesepe (also called the Beehive Cluster),the 44th object in Messier's catalogue. On a dark night it is a nice object to observe with binoculars. There is also information about the constellation Ursa Major,seen in the north, in the constellation details below.
The constellation Taurus
Taurus
Taurus is one of the most beautiful constellations and you can almost imagine the Bull charging down to the left towards Orion. His face is delineated by the "V" shaped cluster of stars called the Hyades, his eye is the red giant star Aldebaran and the tips of his horns are shown by the stars beta and zeta Tauri. Although alpha Tauri, Aldebaran, appears to lie amongst the stars of the Hyades cluster it is, in fact, less than half their distance lying 68 light years away from us. It is around 40 times the diameter of our Sun and 100 times as bright.
AAO Image of the Pleiades, M45, by David Malin
To the upper right of Taurus lies the open cluster, M45, the Pleiades. Often called the Seven Sisters, it is one of the brightest and closest open clusters. The Pleiades cluster lies at a distance of 400 light years and contains over 3000 stars. The cluster, which is about 13 light years across, is moving towards the star Betelgeuse in Orion. Surrounding the brightest stars are seen blue reflection nebulae caused by reflected light from many small carbon grains. These relfection nebulae look blue as the dust grains scatter blue light more efficiently than red. The grains form part of a molecular cloud through which the cluster is currently passing. (Or, to be more precise, did 400 years ago!)
VLT image of the Crab Nebula
Close to the tip of the left hand horn lies the Crab Nebula, also called M1 as it is the first entry of Charles Messier's catalogue of nebulous objects. Lying 6500 light years from the Sun, it is the remains of a giant star that was seen to explode as a supernova in the year 1056. It may just be glimpsed with binoculars on a very clear dark night and a telescope will show it as a misty blur of light.
Lord Rosse's drawing of M1
Its name "The Crab Nebula" was given to it by the Third Earl of Rosse who observed it with the 72 inch reflector at Birr Castle in County Offaly in central Ireland. As shown in the drawing above, it appeared to him rather lile a spider crab. The 72 inch was the world's largest telelescope for many years. At the heart of the Crab Nebula is a neutron star, the result of the collapse of the original star's core. Although only around 20 km in diameter it weighs more than our Sun and is spinning 30 times a second. Its rotating magnetic field generate beams of light and radio waves which sweep across the sky. As a result, a radio telescope will pick up very regular pulses of radiation and the object is thus also known a Pulsar. Its pulses are monitored each day at Jodrell Bank with a 13m radio telescope.
The constellation Orion
Orion
Orion, perhaps the most beautiful of constellations, will be seen in the south at around 11 - 12 pm during January. Orion is the hunter holding up a club and shield against the charge of Taurus, the Bull up and to his right. Alpha Orionis, or Betelgeuse, is a read supergiant star varying in size between three and four hundred times that of our Sun. The result is that its brightness varies somewhat. Beta Orionis, or Rigel, is a blue supergiant which, at around 1000 light years distance is about twice as far away as Betelgeuse. It has a 7th magnitude companion. The three stars of Orion's belt lie at a distance of around 1500 light years. Just below the lower left hand star lies a strip of nebulosity against which can be seen a pillar of dust in the shape of the chess-board knight. It is thus called the Horsehead Nebula. It shows up very well photographically but is exceedingly difficult to see visually - even with relativly large telescope.
The Horsehead Nebula: Anglo Australian Observatory
Beneath the central star of the belt lies Orion's sword containing one of the most beautiful sights in the heavens - The Orion Nebula. It is a region of star formation and the reddish colour seen in photographs comes from Hydrogen excited by ultraviolet emitted from the very hot young stars that make up the Trapesium which is at its heart. The nebula, cradling the trapesium stars, is a beautiful sight in binoculars or, better still, a telescope. To the eye it appears greenish, not red, as the eye is much more sensitive to the green light emitted by ionized oxygen than the reddish glow from the hydrogen atoms.
The Orion Nebula: David Malin
The constellation Ursa Major
Ursa Major
The stars of the Plough, shown linked by the thicker lines in the chart above, form one of the most recognised star patterns in the sky. Also called the Big Dipper, after the soup ladles used by farmer's wives in America to serve soup to the farm workers at lunchtime, it forms part of the Great Bear constellation - not quite so easy to make out! The stars Merak and Dubhe form the pointers which will lead you to the Pole Star, and hence find North. The stars Alcor and Mizar form a naked eye double which repays observation in a small telescope as Mizar is then shown to be an easily resolved double star. A fainter reddish star forms a triangle with Alcor and Mizar.
Ursa Major contains many interesting "deep sky" objects. The brightest, listed in Messier's Catalogue, are shown on the chart, but there are many fainter galaxies in the region too. In the upper right of the constellation are a pair of interacting galaxies M81 and M82 shown in the image below. M82 is undergoing a major burst of star formation and hence called a "starburst galaxy". They can be seen together using a low power eyepiece on a small telescope.
M81 and M82
Another, and very beautiful, galaxy is M101 which looks rather like a pinwheel firework, hence its other name the Pinwheel Galaxy. It was discovered in1781 and was a late entry to Messier's calalogue of nebulous objects. It is a type Sc spiral galaxy seen face on which is at a distance of about 24 million light years. Type Sc galaxies have a relativly small nucleus and open spiral arms. With an overall diameter of 170,000 light it is one of the largest spirals known (the Milky Way has a diameter of ~ 130,000 light years).
M101 - The Ursa Major Pinwheel Galaxy
Though just outside the constellation boundary, M51 lies close to Alkaid, the leftmost star of the Plough. Also called the Whirlpool Galaxy it is being deformed by the passage of the smaller galaxy on the left. This is now gravitationally captured by M51 and the two will eventually merge. M51 lies at a distance of about 37 million light years and was the first galaxy in which spiral arms were seen. It was discovered by Charles Messier in 1773 and the spiral structure was observed by Lord Rosse in 1845 using the 72" reflector at Birr Castle in Ireland - for many years the largest telescope in the world.
M51 - The Whirlpool Galaxy
Lying close to Merak is the planetary nebula M97 which is usually called the Owl Nebula due to its resemblance to an owl's face with two large eyes. It was first called this by Lord Rosse who drew it in 1848 - as shown in the image below right. Planetary nebulae ar the remnants of stars similar in size to our Sun. When all possible nuclear fusion processes are complete, the central core collpses down into a "white dwarf" star and the the outer parts of the star are blown off to form the surrounding nebula.
M97 - The Owl Planetary Nebula Lord Rosse's 1848 drawing of the Owl Nebula
