The Night Sky March 2013

Compiled by Ian Morison



This page, updated monthly, will let you know some of the things that you can look out for in the night sky.  It lists the phases of the Moon, where you will see the naked-eye planets and describes some of the prominent constellations in the night sky during the month.


Image of the Month

Trifid nebula

The Trifid Nebula, M20

Subaru Telescope (NAOJ, Hubble Space telescope, ESA,NASA, Martin Pugh; processing by Robert Gendler.

The Trifid Nebula is a star formation region in the constellation of Sagittarius, the Archer, that lies at a distance of about 9,000 light years and spans a distance of about 10 light years.   The three prominent dust lanes that come together in the centre give it its name.   It is the ultra-violet light from a single massive star at its heart that excites the surrounding gas to glow whilst its visible light shows the wonderful detail in the dust lanes.   This beautiful image is the work of Martin Pugh, who provided the colour data, and Robert Gendler who assemble the image using additional imaging data from the HST and Subaru Telescopes.   Wonderful!

Highlights of the Month

March 9th to 20th - after sunset: Comet PanSTARRS

Comet PanSTARRS

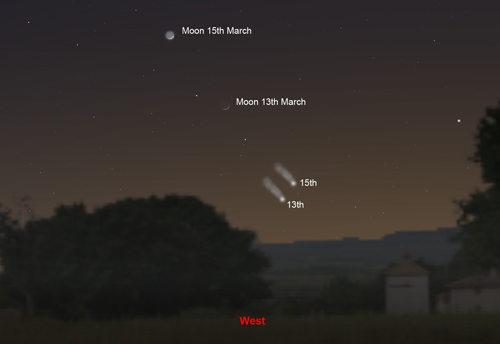

A chance to spot a bright comet low in the west
Image: Stellarium/IM

This month we have a chance to spot what may be the brightest comet seen for some time.   Comet PanSTARRS was discovered some two years ago when it lay between the orbits of Saturn and Jupiter - having a brightness of just 19th magnitude.   It is named after the Panoramic Survey Telescope and Rapid Response System.   It reaches perihelion, when closest to the Sun, on March 10th at a distance from the Sun of just 0.3 AU and so inside the orbit of Mercury.   At our latitudes it is likely to be at its best between March 8th to 20th with the 12th to 17th optimum.   Its magnitude is predicted to be -0.2 on March 10th, dimming to +1.3 on the 20th and down to +3.6 by month's end.   The azimuth at which it will be seen moves northwards during the month starting at azimuth 260 on the 9th, 270 on the 13th, 280 on the 18th and at 310 degrees azimuth on the 28th. It will be very low above the horizon so you will need to get to a high observing location with an unobstructed view to the west and north-west.   It should lie just above a thin crescent Moon on the 12th making, if clear, a wonderful imaging opportunity!   Another great imaging opportunity will occur next month on April 4th when, at similar magnitude, it passes close to M31,the Andromeda galaxy

The image at right was taken on the 13th March from Henbury, Cheshire and is a stack of 16 individual images taken with a Nikon D7000 DSLR and 80 mm refractor.   The sky was still quite bright at the time and the comet was only visible in binoculars - but actually looked just like a comet should and was, pleasingly, just where the chart showed.   The sky brightness also limits the length of the tail that can be imaged.

Comet PanSTARRS
Comet PanSTARRS: Ian Morison




March - Jupiter, still in good view

Jupiter
Jupiter imaged by Damian Peach

Jupiter, now moving westwards, still lies in Taurus and so is high in the ecliptic and hence, when due south, is at an elevation of ~60 degrees.   It is looking somewhat different than in the last few years as the north equatorial belt has become quite broad.   The Great Red Spot is currently a pale shade of pink but can be easily seen as a large feature in the South Equatorial Belt.   Jupiter was at opposition on the 3rd of December so, this month, will cross the meridian at sunset and so will be seen in the west during the evening.   After its apparition next year it will be moving towards more southerly parts of the ecliptic so will be at lower elevations when crossing the meridian and will thus be seen through thicker layers of the atmosphere.

The features seen in the Jovian atmosphere have been changing quite significantly over the last few years - for a while the South Equatorial Belt vanished completely but has now returned to its normal wide state.   The diagram on right shows the main Jovian features as imaged by the author at the beginning of December 2012.

The image by Damian Peach was taken with a 14 inch telescope in Barbados where the seeing can be particularly good.   This image won the "Astronomy Photographer of the Year" competition in 2011.

See more of Damian Peach's images: Damian Peaches Website"




Jovian Features
Features in Jupiter's atmosphere - December 2013.



March: Look for the Great Red Spot on Jupiter

Great Red Spot
Observe the Great Red Spot
Image: NASA

This list gives some of the best evening times during April to observe the Great Red Spot which should then lie on the central meridian of the planet.


March 17th - The Moon and Jupiter in Taurus.

Moon and Jupiter

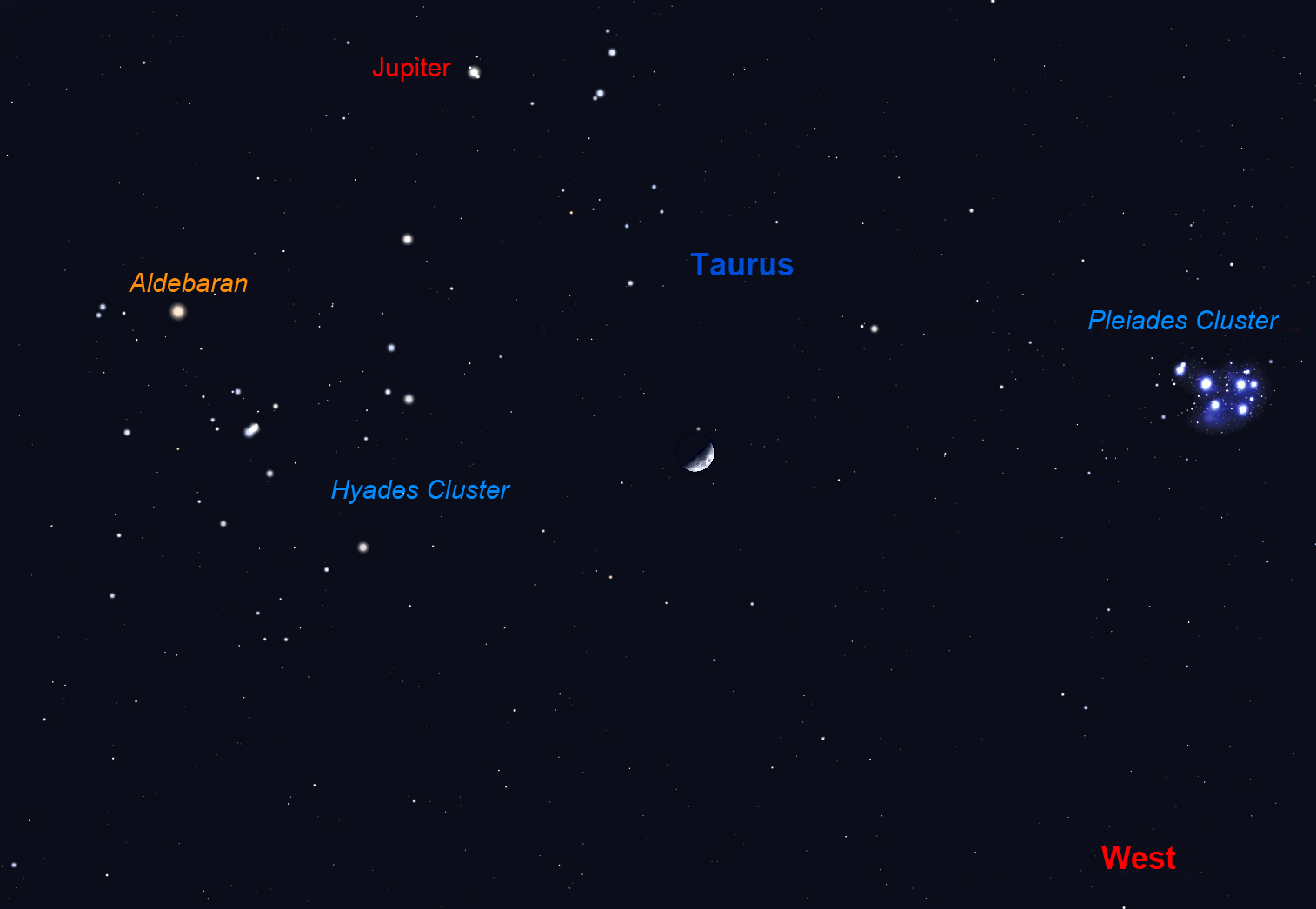

The Moon and Jupiter in Taurus
Image: Stellarium/IM

After sunset on the 17th, the Moon will join Jupiter in Taurus to join the Hyades and Pleiades clusters.


March 29th Midnight : Saturn with the Moon and Spica

Saturn

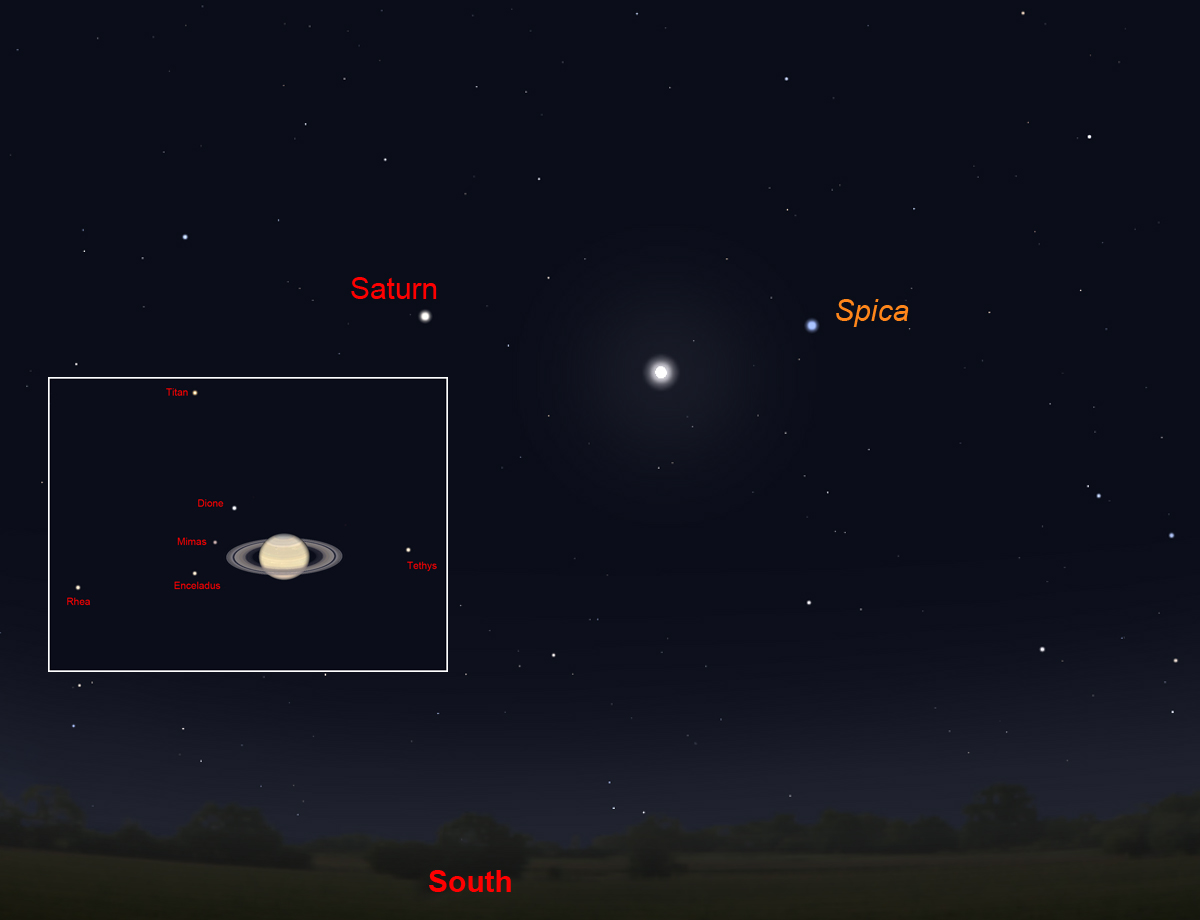

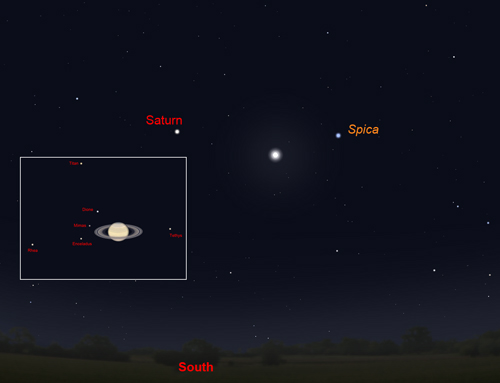

The Moon joins Saturn and Spica
Image: Stellarium/IM

The Moon, near full, joins Saturn and Spica in the southern sky.

March 3rd and 20th: The Alpine Valley

Alpine Valley
Alpine Valley region

An interesting valley on the Moon: The Alpine Valley
These are two good nights to observe an interesting feature on the Moon if you have a small telescope.  Close to the limb is the Appenine mountain chain that marks the edge of Mare Imbrium.   Towards the upper end you should see the cleft across them called the Alpine valley.   It is about 7 miles wide and 79 miles long.   As shown in the image is a thin rill runs along its length which is quite a challenge to observe.  The dark crater Plato will also be visible nearby.   You may also see the shadow cast by the mountain Mons Piton lying not far away in Mare Imbrium.   This is a very interesting region of the Moon!

The Alpine Valley
The Alpine valley and the crater Plato



M16, the Eagle nebula, imaged with the Faulkes Telescope

M16
Messier 16 - The Eagle Nebula
Image: Daniel Duggan
Faulkes Telescope North.

The Eagle Nebula, M16, imaged by Daniel Duggan.
This image was taken using the Faulkes Telescope North by Daniel Duggan - for some time a member of the Faulkes telescope team.   It is a region of dust and gas where stars are now forming.   The ultraviolet light from young blue stars is stripping the electrons from hydrogen atoms so this region contains ionized hydrogen and is called an HII region.   As the electrons drop back down through the hydrogen energy levels as the atoms re-form, red light at the H alpha wavelength is emitted.   This "true colour" image is composed of red, green and blue images along with a narrow band H alpha image.   A Hubble image of the central region, called the "Pillars of Creation", has become quite famous but looks green/blue in colour.   This is a false colour image where the H alpha image has been encoded as green!

Learn more about the Faulkes Telescopes and how schools can use them: Faulkes Telescope"



















Observe the International Space Station

The International Space Station
The International Space Station and Jules Verne passing behind the Lovell Telescope on April 1st 2008.
Image by Andrew Greenwood

Use the link below to find when the space station will be visible in the next few days. In general, the space station can be seen either in the hour or so before dawn or the hour or so after sunset - this is because it is dark and yet the Sun is not too far below the horizon so that it can light up the space station. As the orbit only just gets up the the latitude of the UK it will usually be seen to the south, and is only visible for a minute or so at each sighting. Note that as it is in low-earth orbit the sighting details vary quite considerably across the UK. The NASA website linked to below gives details for several cities in the UK. (Across the world too for foreign visitors to this web page.)

Note: I observed the ISS three times recently and was amazed as to how bright it has become.

Find details of sighting possibilities from your location from: Location Index

See where the space station is now: Current Position


The Moon

3rd Quarter Moon
The Moon at 3rd Quarter. Image, by Ian Morison, taken with a 150mm Maksutov-Newtonian and Canon G7.
Just below the crator Plato seen near the top of the image is the mountain "Mons Piton".   It casts a long shadow across the maria from which one can calculate its height - about 6800ft or 2250m.
new moon first quarter full moon last quarter
March 11th March 19th March 27th March 4th

Some Lunar Images by Ian Morison, Jodrell Bank Observatory: Lunar Images

A World Record Lunar Image

World record Lunar Image
The 9 day old Moon.

To mark International Year of Astronomy, a team of British astronomers have made the largest lunar image in history and gained a place in the Guinness Book of Records! The whole image comprises 87.4 megapixels with a Moon diameter of 9550 pixels. This allows details as small as 1km across to be discerned! The superb quality of the image is shown by the detail below of Plato and the Alpine Valley. Craterlets are seen on the floor of Plato and the rille along the centre of the Alpine valley is clearly visible. The image quality is staggering! The team of Damian Peach, Pete lawrence, Dave Tyler, Bruce Kingsley, Nick Smith, Nick Howes, Trevor Little, David Mason, Mark and Lee Irvine with technical support from Ninian Boyle captured the video sequences from which 288 individual mozaic panes were produced. These were then stitched together to form the lunar image.

Plato and the Alpine valley
Plato and the Alpine Valley.

Please follow the link to the Lunar World Record website and it would be really great if you could donate to Sir Patrick Moore's chosen charity to either download a full resolution image or purchase a print.



The Planets

 A montage of the Solar System
A montage of the Solar System. JPL / Nasa

Jupiter

Jupiter
A Cassini image of Jupiter . Nasa

Jupiter, in the constellation of Taurus. the Bull, is now high in the southern sky and will transit at sunset so will be just west of south as darkness falls.   When due south, it will lie some 60 degrees above the horizon.   Shining at magnitude -2.5, it starts March lying just 5 degrees to the upper right of the star Aldebaran, the eye of the Bull, towards the Pleiades Cluster.   Jupiter is now moving eastwards across the sky, ending the month above Aldebaran.   During the month its angular diameter drops slightly from 39.2 to 35.9 arc seconds so even a small telescope will still show plenty of detail with the bright zones and darker bands crossing the disk and up to four Gallilean moons visible as they weave their way around the giant planet.   The times given in the highlight above will tell you when the Great Red Spot is easily visible in the evening.


See highlights above.

Saturn

Saturn
The planet Saturn. Cassini - Nasa

Saturn, lying in Libra, rises at 11:30 UT as March begins and so will transit before dawn at an elevation of 25 degrees at 04:30 UT   By months end, it rises at ~21:40 and will transit at about 02:00 UT   Its magnitude brightens slightly during the month,from +0.4 to +0.3 magnitudes, whilst its angular size increases from 17.8 to 18.6 arc seconds. The good news is that the rings have now opened out to 19 degrees from the line of sight and will be at their best for 6 years!   (The observed tilt very slightly reduces during the month to 18.8 degrees.)   We are now observing the planet's southern hemisphere whilst much of the northern hemisphere will be hidden by the rings.   Saturn is now in retrograde motion and so moving westwards against the stars with its distance from nearby Alpha Librae slowly increases from 4.5 to 5.5 degrees.   With a small scope one should now be able to spot Cassini's Division within the rings if the "seeing" is good along with Saturn's largest Moon, Titan.   Saturn is now lying in the more southerly part of the ecliptic so its elevation does not get that high - 28 degrees at transit - when seen from our northern latitude and, sadly, this will get worse for quite a few years.


See highlight above.

Mercury

Mercury.
Messenger image of Mercury Nasa

Mercury, reaches greatest western elongation (when it is furthest from the Sun in angle) on the 31st.   However this is not a good apparition as the ecliptic at dawn makes a very shallow angle to the horizon at this time of year.   As a result, Mercury will be very low above the horizon in the east-southeast as dawn breaks and binoculars will be needed to spot it.   But please do not use them when the Sun has risen!



Mars

Mars showing Syrtis major.
A Hubble Space Telescope image of Mars.
Jim Bell et al. AURA / STScI / Nasa

Mars, having just moved into Aquarius, is still visible low in the west after sunset - as it has been for around 5 months now!   It could just be seen at an elevation of about 3 degrees in the southwest 45 minutes after sunset on March 1st but, by month's end, will have been lost in the Sun's glare.   It shines at magnitude +1.2 but, with an angular diameter of 4 arc seconds and given its very low elevation, no surface markings will be seen on its salmon-pink disk.   Given an exceedingly low western horizon on the 22nd March, it is just possible that Mars, which will then have a magnitude 1.2 and an angular diameter of 3.9 arc seconds, might just be seen.   It is then passing within 39 arc seconds of Uranus but, at magnitude 6 it would be almost impossible to see both planets in this exceedingly close conjunction.




Venus

Venus
Venus showing some cloud structure

Venus reaches superior conjunction on March 28th and so, on the far side of the Sun, will not be visible this month.



Radar Image of Venus
Radar image showing surface features



Find more planetary images and details about the Solar System: The Solar System

The Stars

The Early Evening March Sky

March-early evening
The March Sky in the south - early evening.

This map shows the constellations seen in the south during the early evening. The brilliant constellation of Orion is seen in the south. Moving up and to the right - following the line of the three stars of Orion's belt - brings one to Taurus; the head of the bull being outlined by the V-shaped cluster called the Hyades with its eye delineated by the orange red star Aldebaran. Further up to the right lies the Pleaides Cluster. Towards the zenith from Taurus lies the constellation Auriga, whose brightest star Capella will be nearly overhead. To the upper left of Orion lie the heavenly twins, or Gemini, their heads indicated by the two bright stars Castor and Pollux. Down to the lower left of Orion lies the brightest star in the northern sky, Sirius, in the consteallation Canis Major. Up and to the left of Sirius is Procyon in Canis Minor. Rising in the East is the constellation of Leo, the Lion, with the planet Saturn up and to the right of Regulus its brightest star. Continuing in this direction towards Gemini is the faint constellation of Cancer with its open cluster Praesepe (also called the Beehive Cluster),the 44th object in Messier's catalogue. On a dark night it is a nice object to observe with binoculars. There is also information about the constellation Ursa Major,seen in the north, in the constellation details below.

The Late Evening March Sky

FebruarySky
The March Sky in the south - late evening.

This map shows the constellations seen in the south around midnight.

The constellation Gemini is now setting towards the south-west and Leo holds pride (sic) of place in the south with its bright star Regulus. Between Gemini and Leo lies Cancer. It is well worth observing with binoculars to see the Beehive Cluster at its heart. Below Gemini is the tiny constellation Canis Minor whose only bright star is Procyon. Rising in the south-east is the constellation Virgo whose brightest star is Spica. Though Virgo has few bright stars it is in the direction of of a great cluster of galaxies - the Virgo Cluster - which lies at the centre of the supercluster of which our local group of galaxies is an outlying member.

The constellation Gemini

Gemini
Gemini

Gemini - The Twins - lies up and to the left of Orion and is in the south-west during early evenings this month. It contains two bright stars Castor and Pollux of 1.9 and 1.1 magnitudes respectivly. Castor is a close double having a separation of ~ 3.6 arc seconds making it a fine test of the quality of a small telescope - providing the atmospheric seeing is good! In fact the Castor system has 6 stars - each of the two seen in the telescope is a double star, and there is a third, 9th magnitude, companion star 73 arcseconds away which is alos a double star! Pollux is a red giant star of spectral class K0. The planet Pluto was discovered close to delta Geminorum by Clyde Tombaugh in 1930. The variable star shown to the lower right of delta Geminorum is a Cepheid variable, changing its brightness from 3.6 to 4.2 magnitudes with a period of 10.15 days

Gemini
M35 and NGC 2158
This wonderful image was taken by Fritz Benedict and David Chappell using a 30" telescope at McDonal Observatory. Randy Whited combined the three colour CCD images to make the picture

M35 is an open star cluster comprising several hundred stars around a hundred of which are brighter than magnitude 13 and so will be seen under dark skies with a relativly small telescope. It is easily spotted with binoculars close to the "foot" of the upper right twin. A small telescope at low power using a wide field eyepiece will show it at its best. Those using larger telescopes - say 8 to 10 inches - will spot a smaller compact cluster NGC 2158 close by. NGC 2158 is four times more distant that M35 and ten times older, so the hotter blue stars will have reached the end of their lives leaving only the longer-lived yellow stars like our Sun to dominate its light.

Gemini
The Eskimo Nebula, NGC2392, Hubble Space Telescope

To the lower right of the constellation lies the Planetary Nebula NGC2392. As the Hubble Space Telescope image shows, it resembles a head surrounded by the fur collar of a parka hood - hence its other name The Eskimo Nebula. The white dwarf remnant is seen at the centre of the "head". The Nebula was discovered by William Herschel in 1787. It lies about 5000 light years away from us.

The constellation Leo

Leo
Leo

The constellation Leo is now in the south-eastern sky in the evening. One of the few constellations that genuinely resembles its name, it looks likes one of the Lions in Trafalger Square, with its main and head forming an arc (called the Sickle) to the upper right, with Regulus in the position of its right knee. Regulus is a blue-white star, five times bigger than the sun at a distance of 90 light years. It shines at magnitude 1.4. Algieba, which forms the base of the neck, is the second brightest star in Leo at magnitude 1.9. With a telescope it resolves into one of the most magnificent double stars in the sky - a pair of golden yellow stars! They orbit their common centre of gravity every 600 years. This lovely pair of orange giants are 170 light years away.

Leo also hosts two pairs of Messier galaxies which lie beneath its belly. The first pair lie about 9 degrees to the west of Regulus and comprise M95 (to the east) and M96. They are almost exactly at the same declination as Regulus so, using an equatorial mount, centre on Regulus, lock the declination axis and sweep towards the west 9 degrees. They are both close to 9th magnitude and may bee seen together with a telescope at low power or individually at higher powers. M65 is a type Sa spiral lying at a distance of 35 millin klight years and M66, considerably bigger than M65, is of type Sb. Type Sa spirals have large nuclei and very tightly wound spiral arms whilst as one moves through type Sb to Sc, the nucleus becomes smaller and the arms more open.

M65 and M66
The galaxies M65 and M66
M65 M66
M65 - Type Sa spiral, 9.3 magnitude M66 - Type Sb spiral, 8.9 magnitude

The second pair of galaxies, M95 and M96, lie a further 7 degrees to the west between the stars Upsilon and Iota Leonis. M95 is a barred spiral of type SBb. It lies at a distance of 38 million light years and is magnitude 9.7. M96, a type Sa galaxy, is slightly further away at 41 million light years, but a little brighter with a magnitude of 9.2. Both are members of the Leo I group of galaxies and are visible together with a telescope at low power.

M95 and M96
The galaxies M95 and M96
M95 M96
M95 - Type SBb spiral, 9.7 magnitude M96 - Type Sa spiral, 9.2 magnitude

There is a further ~9th magnitude galaxy in Leo which, surprisingly, is in neither the Messier or Caldwell catalogues. It lies a little below lambda Leonis and was discovered by William Herschel. No 2903 in the New General Catalogue, it is a beautiful type Sb galaxy which is seen at somewhat of an oblique angle. It lies at a distance of 20.5 million light years.

NGC2903
The 8.9th magnitude, type Sb, Galaxy NGC2903

The constellation Virgo

Virgo
Virgo

Virgo, rising in the east in late evening this month, is not one of the most prominent constellations, containing only one bright star, Spica, but is one of the largest and is very rewarding for those with "rich field" telescopes capable of seeing the many galaxies that lie within its boundaries. Spica is, in fact, an exceedingly close double star with the two B type stars orbiting each other every 4 days. Their total luminosity is 2000 times that of our Sun. In the upper right hand quadrant of Virgo lies the centre of the Virgo Cluster of galaxies. There are 13 galaxies in the Messier catalogue in this region, all of which can be seen with a small telescope. The brightest is the giant elliptical galaxy, M87, with a jet extending from its centre where there is almost certainly a massive black hole into which dust and gas are falling. This releases great amounts of energy which powers particles to reach speeds close to the speed of light forming the jet we see. M87 is also called VIRGO A as it is a very strong radio source.

M87 MERLIN images
The Giant Elliptical Galaxy M87 HST image showing the jet

Below Porrima and to the right of Spica lies M104, an 8th magnitude spiral galaxy about 30 million light years away from us. Its spiral arms are edge on to us so in a small telescope it appears as an elliptical galaxy. It is also known as the Sombrero Galaxy as it looks like a wide brimmed hat in long exposure photographs.

The Sombrero Galaxy
M104 - The Sombrero Galaxy

The constellation Ursa Major

Ursa Major
Ursa Major

The stars of the Plough, shown linked by the thicker lines in the chart above, form one of the most recognised star patterns in the sky. Also called the Big Dipper, after the soup ladles used by farmer's wives in America to serve soup to the farm workers at lunchtime, it forms part of the Great Bear constellation - not quite so easy to make out! The stars Merak and Dubhe form the pointers which will lead you to the Pole Star, and hence find North. The stars Alcor and Mizar form a naked eye double which repays observation in a small telescope as Mizar is then shown to be an easily resolved double star. A fainter reddish star forms a triangle with Alcor and Mizar.

Ursa Major contains many interesting "deep sky" objects. The brightest, listed in Messier's Catalogue, are shown on the chart, but there are many fainter galaxies in the region too. In the upper right of the constellation are a pair of interacting galaxies M81 and M82 shown in the image below. M82 is undergoing a major burst of star formation and hence called a "starburst galaxy". They can be seen together using a low power eyepiece on a small telescope.

M81 and M82
M81 and M82

Another, and very beautiful, galaxy is M101 which looks rather like a pinwheel firework, hence its other name the Pinwheel Galaxy. It was discovered in1781 and was a late entry to Messier's calalogue of nebulous objects. It is a type Sc spiral galaxy seen face on which is at a distance of about 24 million light years. Type Sc galaxies have a relativly small nucleus and open spiral arms. With an overall diameter of 170,000 light it is one of the largest spirals known (the Milky Way has a diameter of ~ 130,000 light years).

M101
M101 - The Ursa Major Pinwheel Galaxy

Though just outside the constellation boundary, M51 lies close to Alkaid, the leftmost star of the Plough. Also called the Whirlpool Galaxy it is being deformed by the passage of the smaller galaxy on the left. This is now gravitationally captured by M51 and the two will eventually merge. M51 lies at a distance of about 37 million light years and was the first galaxy in which spiral arms were seen. It was discovered by Charles Messier in 1773 and the spiral structure was observed by Lord Rosse in 1845 using the 72" reflector at Birr Castle in Ireland - for many years the largest telescope in the world.

M51
M51 - The Whirlpool Galaxy

Lying close to Merak is the planetary nebula M97 which is usually called the Owl Nebula due to its resemblance to an owl's face with two large eyes. It was first called this by Lord Rosse who drew it in 1848 - as shown in the image below right. Planetary nebulae ar the remnants of stars similar in size to our Sun. When all possible nuclear fusion processes are complete, the central core collpses down into a "white dwarf" star and the the outer parts of the star are blown off to form the surrounding nebula.

Owl Nebula Owl Nebula
M97 - The Owl Planetary Nebula Lord Rosse's 1848 drawing of the Owl Nebula
