The Night Sky February 2020


Compiled by Ian Morison




This page, updated monthly, will let you know some of the things that you can look out for in the night sky.  It lists the phases of the Moon, where you will see the naked-eye planets and describes some of the prominent constellations in the night sky during the month.


New(ish)

The author's: Astronomy Digest

which, over time, will provide useful and, I hope, interesting articles for all amateur astronomers.   A further aim is to update and add new material to link with the books recently published by Cambridge University Press and which are described on the home page of the digest.   It now includes nearly 70 illustrated articles.



Image of the Month

Orion

Homage to Akira Fugii
Image: Ian Morison

The constellation Orion holds centre stage in the evening sky this month.

The image above attempts to emulate those taken by Akira Fugii, described as the 'world's foremost wide-angle astrophotographer'.   His constellation images were used in the 'Great Atlas of the Stars' - probably the most beautiful star atlas ever produced.   (Available second hand for over £100!)   He used a special film technique to enhance and diffuse the brightest stars to make the constellation patterns stand out.   Digital cameras make far more clinical images and it is often hard to make out the constellation patterns but, here, I have used Adobe Photoshop to give a similar effect to that produced by Akira.

It is possible to make out the Orion Nebula, M42, with even a hint of the Trapezium stars at it heart.   Above can be seen the blue 'Running Man' reflection nebula and, to the upper left of Alnitak (the left hand star or Orion's belt), is the 'Flame Nebula.  Below Alnitak is a hint of the Horsehead Nebula.   Arcing through Orion lies the H-alpha emission of Barnard's Loop and, at his head, is the Angelfish Nebula.

The method I used to produce this image is described in the digest article (link above) 'Removing Planes using Deep Sky Stacker...' and one can view Akira's images at 'www.davidmalin.com'.

Highlights of the Month


February: find M31 - The Andromeda Galaxy - and perhaps M33 in Triangulum

M31
How to find M31
Image: Stellarium/IM

In the evenings when the Moon is not prominent, the galaxy M31 in Andromeda will be visible high in the south The chart provides two ways of finding it:

1) Find the square of Pegasus.  Start at the top left star of the square - Alpha Andromedae - and move two stars to the left and up a bit.  Then turn 90 degrees to the right, move up to one reasonably bright star and continue a similar distance in the same direction.  You should easily spot M31 with binoculars and, if there is a dark sky, you can even see it with your unaided eye.   The photons that are falling on your retina left Andromeda well over two million years ago!

2) You can also find M31 by following the "arrow" made by the three rightmost bright stars of Cassiopeia down to the lower right as shown on the chart.

Around new Moon (23rd February) - and away from towns and cities - you may also be able to spot M33, the third largest galaxy after M31 and our own galaxy in our Local Group of galaxies.   It is a face on spiral and its surface brightness is pretty low so a dark, transparent sky will be needed to spot it using binoculars (8x40 or, preferably, 10x50).   Follow the two stars back from M31 and continue in the same direction sweeping slowly as you go.   It looks like a piece of tissue paper stuck on the sky just a bit brighter than the sky background.   Good Hunting!



February 3rd - evening: the Moon between the Hyades and Pleiads Clusters.

Moon

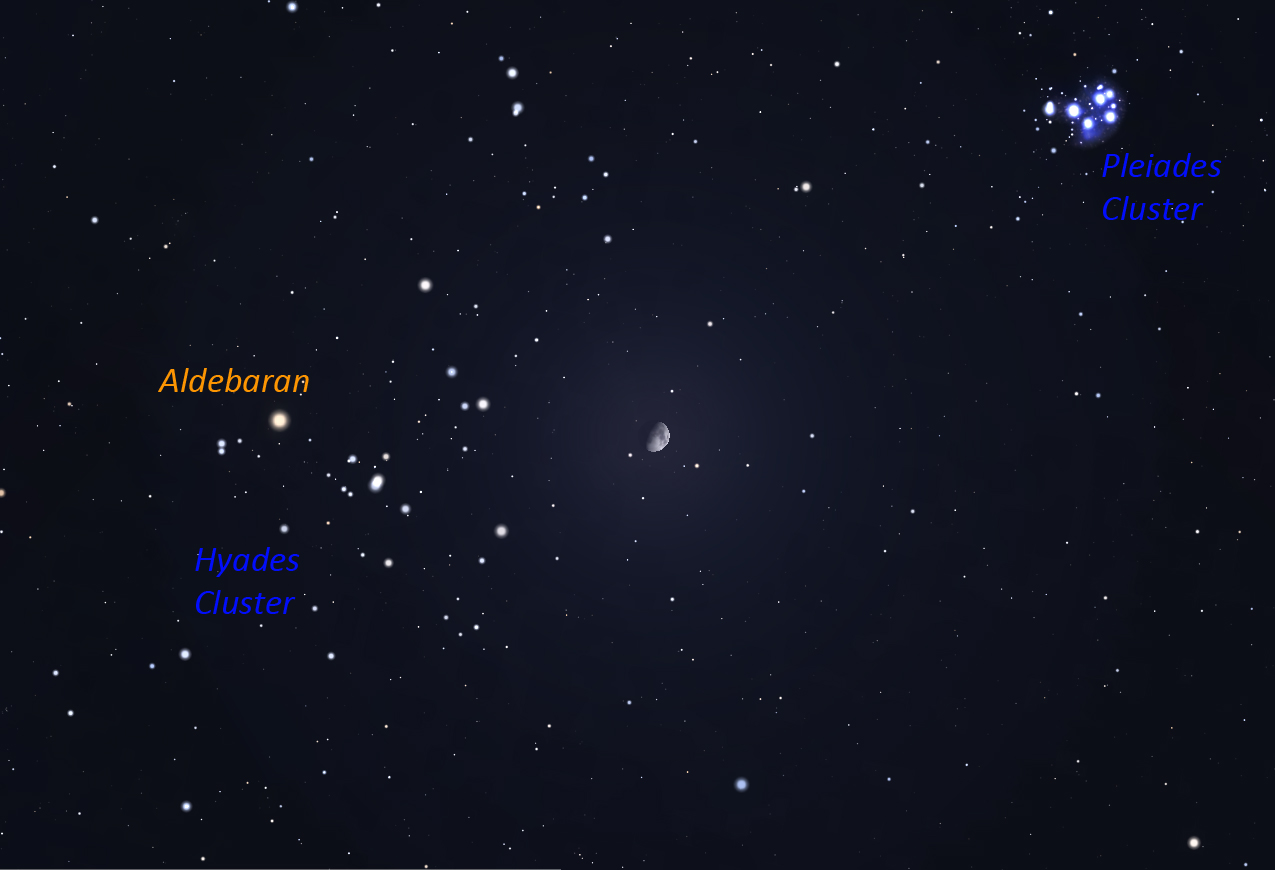

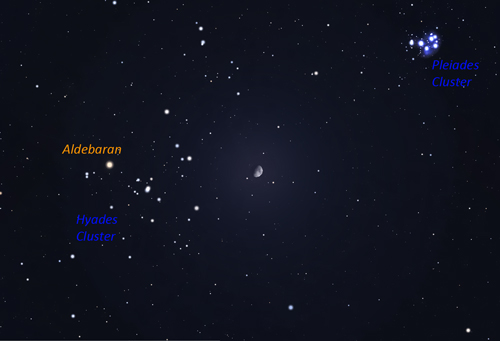

The Moon within the Hyades Cluster.
Image: Stellarium/IM

In the evening one could see the waxing Moon, moving towards full, lying to the right of the Hyades Cluster.   Aldeberan is a red giant star far closer to us than the Hyades.

February 7th - after sunset: Venus lies above Mercury.

Venus

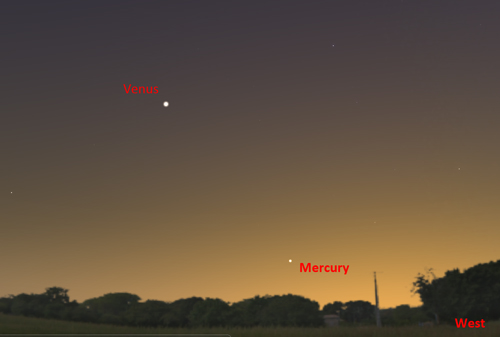

Venus lies above Mercury
Image: Stellarium/IM

After sunset, low in the southwest, Venus will lie above Mercury.   Venus will not be missed, but to spot Mercury which lies down to its lower right, a low horizon just south of west and perhaps binoculars will be needed - but please do not use them until the Sun has set.

February 18th - before Dawn: a thin crescent Moon lies just to the right of Mars.

Mars

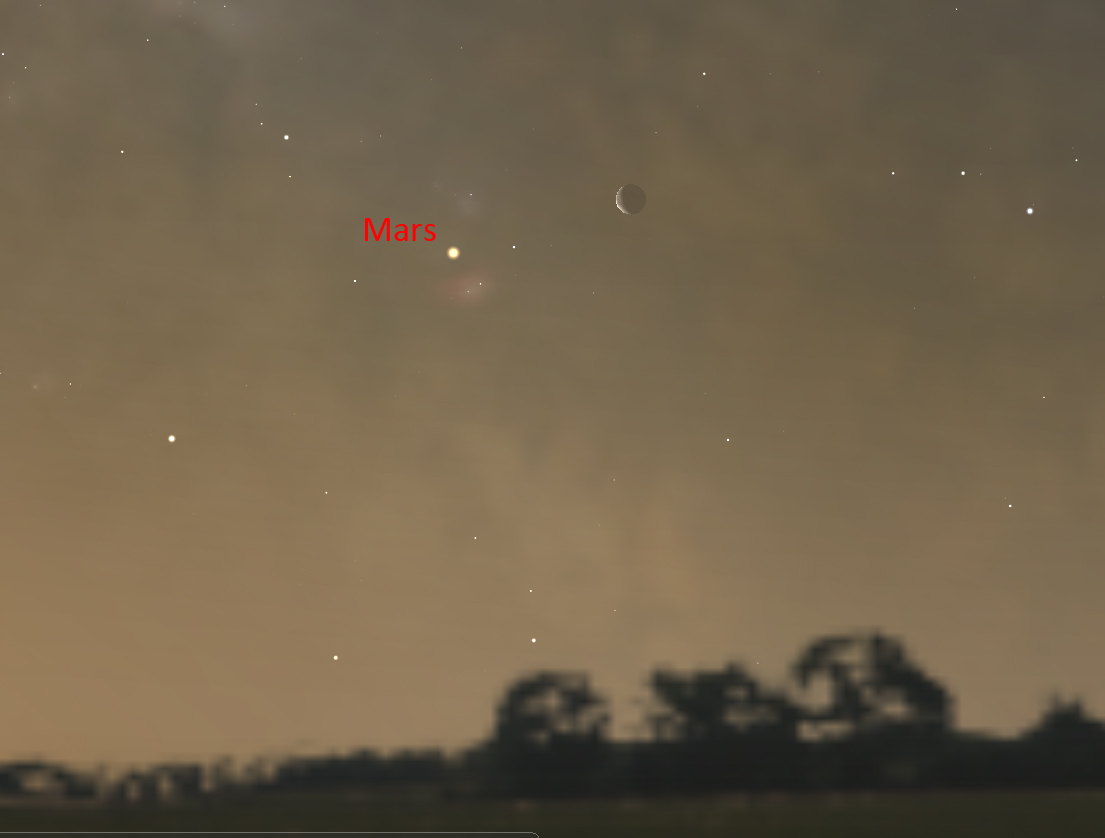

A crescent Moon to the right of Mars.
Image: Stellarium/IM

If clear around 7 am on the 18th, one will see a thin cresent Moon lying over to the right of Mars.   This could be a nice photo opportunity.

February 27th - after sunset: a very thin crescent Moon lies down to the lower left of Venus.

Venus/Moon

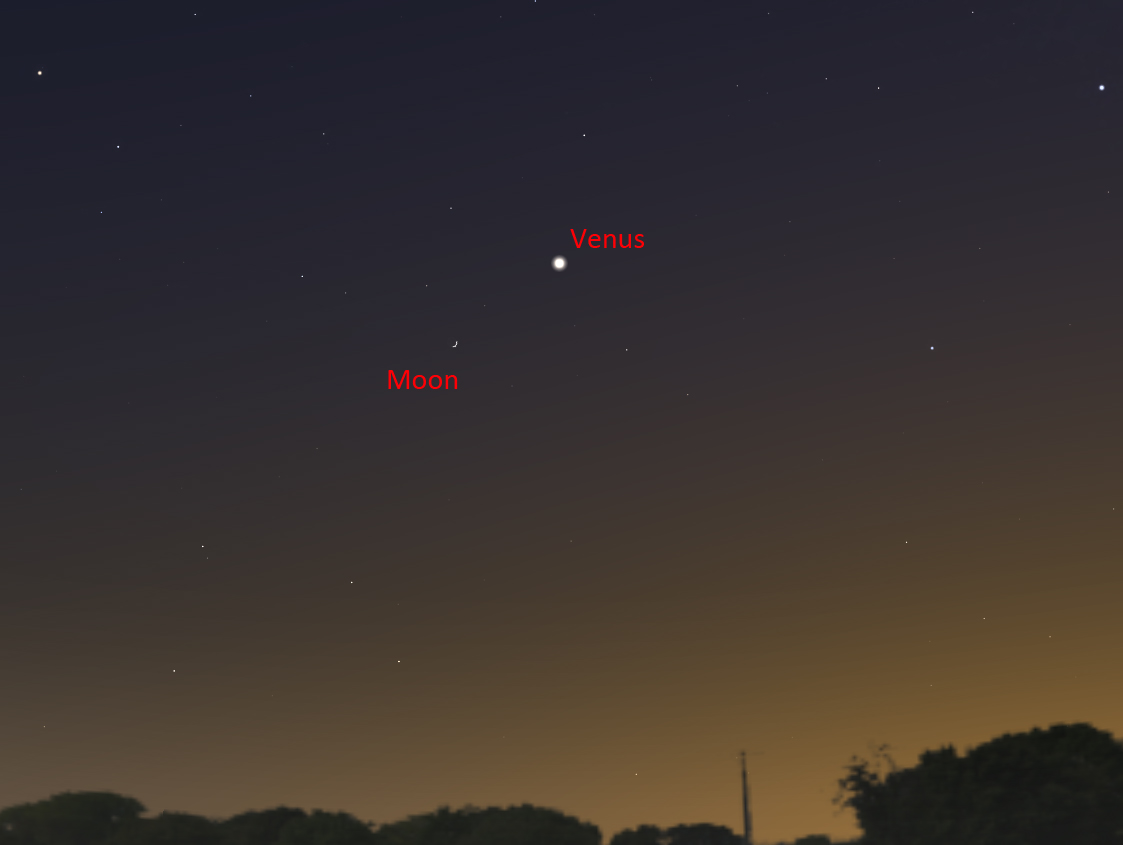

A thin waxing crescent Moon and Venus.
Image: Stellarium/IM

After sunset on the 27th, and given a low horizon towards the west, you may be able to spot a very thin crescent Moon lying down to the lower left of Venus.

February 29th - before Dawn: a lineup of Saturn, Jupiter and Mars.

Mars
Saturn, Jupiter and Mars in the predawn sky.
Image: Stellarium/IM

If clear around 6:30 am on the 29th, one will see a nice lineup of, from left to right, Saturn, Jupiter and Mars.   A low horizon towards the southeast will be needed to spot Saturn.

February 1st and 14th evening: The Hyginus Rille

20thJuly
Hyginus Rille location: IM.

During these evenings the terminator lies close so making it more obvious. For some time a debate raged as to whether the craters on the Moon were caused by impacts or volcanic activity.   We now know that virtually all were caused by impact, but it is thought that the Hyginus crater that lies at the centre of the Hyginus Rille may well be volcanic in origin.   It is an 11 km wide rimless pit - in contast to impact craters which have raised rims - and its close association with the rille of the same name associates it with internal lunar events.   It can quite easily be seen to be surrounded by dark material.   It is thought that an explosive release of dust and gas created a vacant space below so that the overlying surface collapsed into it so forming the crater.

Hyginus Rille
Hyginus Crater and Rille













M109 imaged with the Faulkes Telescope

M109
Messier 109
Image: Daniel Duggan
Faulkes Telescope North.

The Galaxy M109, imaged by Daniel Duggan.
This image was taken using the Faulkes Telescope North by Daniel Duggan - for some time a member of the Faulkes telescope team.   It shows the barred spiral galaxy M109 that lies at a distance of 83 million light years in the constellation of Ursa Major.   It is the brightest galaxy in the Ursa Major group of some 50 galaxies.   Our own Milky Way galaxy is now thought to be a barred spiral like M109.

Learn more about the Faulkes Telescopes and how schools can use them: Faulkes Telescope"

















Observe the International Space Station

The International Space Station
The International Space Station and Jules Verne passing behind the Lovell Telescope on April 1st 2008.
Image by Andrew Greenwood

Use the link below to find when the space station will be visible in the next few days. In general, the space station can be seen either in the hour or so before dawn or the hour or so after sunset - this is because it is dark and yet the Sun is not too far below the horizon so that it can light up the space station. As the orbit only just gets up the the latitude of the UK it will usually be seen to the south, and is only visible for a minute or so at each sighting. Note that as it is in low-earth orbit the sighting details vary quite considerably across the UK. The NASA website linked to below gives details for several cities in the UK. (Across the world too for foreign visitors to this web page.)

Note: I observed the ISS three times recently and was amazed as to how bright it has become.

Find details of sighting possibilities from your location from: Location Index

See where the space station is now: Current Position


The Moon

3rd Quarter Moon
The Moon at 3rd Quarter. Image, by Ian Morison, taken with a 150mm Maksutov-Newtonian and Canon G7.
Just below the crator Plato seen near the top of the image is the mountain "Mons Piton".   It casts a long shadow across the maria from which one can calculate its height - about 6800ft or 2250m.
`
new moon first quarter full moon third quarter
February 23rd February 1st February 9th February 15th

Some Lunar Images by Ian Morison, Jodrell Bank Observatory: Lunar Images

A World Record Lunar Image

World record Lunar Image
The 9 day old Moon.

To mark International Year of Astronomy, a team of British astronomers have made the largest lunar image in history and gained a place in the Guinness Book of Records!   The whole image comprises 87.4 megapixels with a Moon diameter of 9,550 pixels.  The resolution of ~0.4 arc seconds allows details as small as 1km across to be discerned!   The superb quality of the image is shown by the detail below of Plato and the Alpine Valley.  Craterlets are seen on the floor of Plato and the rille along the centre of the Alpine valley is clearly visible.  The image quality is staggering! The team of Damian Peach, Pete lawrence, Dave Tyler, Bruce Kingsley, Nick Smith, Nick Howes, Trevor Little, David Mason, Mark and Lee Irvine with technical support from Ninian Boyle captured the video sequences from which 288 individual mozaic panes were produced.   These were then stitched together to form the lunar image.

Plato and the Alpine valley
Plato and the Alpine Valley.

Please follow the link to the Lunar World Record website and it would be really great if you could donate to Sir Patrick Moore's chosen charity to either download a full resolution image or purchase a print.









The 8 day old Moon

Lunar Image
The 8 day old Moon imaged by Ian Morison.

This image was taken by the author on a night in March 2018 when the Moon was at an elevation of ~52 degrees and the seeing was excellent.   This enabled the resolution of the image to be largely determined by the resolution of the 200 mm aperture telescope and the 3.75 micron pixel size of the Point Grey Chameleon 1.3 megapixel video camera.   The use of a near infrared filter allowed imaging to take place before it was dark and also reduced the effects of atmospheric turbulence.   The 'Drizzle' technique developed by the Hubble Space Telescope Institute (HSTI) was used to reduce the effective size of the camera's pixels to allow the image to be well sampled.   Around 100 gigabytes of data, acquired over a 2 hour period, was processed to produce images of 54 overlapping areas of the Moon which were then combined to give the full lunar disk in the free 'stitching' program Microsoft ICE.   A further HSTI development called 'deconvolution sharpening' was then applied to the image.   The Moon's disk is ~6,900 pixels in height and has a resolution of 0.6 to 0.7 arc seconds.   Interestingly, as seen in the inset image, the rille lying along the centre of the Alpine Valley is just discernable and this is only ~0.5 km wide!   [Due to size limitations the large image is 2/3 full size.]









The Planets

 A montage of the Solar System
A montage of the Solar System. JPL / Nasa

Jupiter

Jupiter
A Cassini image of Jupiter . Nasa

Jupiter. As February begins, Jupiter rises more than 90 minutes before the Sun shining at magnitude of -1.9.   During the month it brightens to magnitude -2.0 whilst its angular size increases slightly from 32.5 to 34.1 arc seconds.   A low south-eastern horizon will be needed and our views of the giant planet and its Gallilean moons will be hindered by the depth of atmosphere through which it will be observed.



Saturn

Saturn
The planet Saturn. Cassini - Nasa

Saturn, passed directly behind the Sun on the 13th of January and, as February begins, will rise less than one hour before the Sun.   Then, equipped with binoculars and a very low south-eastern horizon, it might be glimpsed at magnitude +0.58 in the pre-dawn sky - but please do not use binoculars after the Sun has risen.   As February progresses, its magnitude actually reduces very slightly to +0.66 as it angular size increases from 15.1 to 15.5 arc seconds.   Saturn crosses the Ecliptic (the path of the Sun across the heavens) in a southerly direction on the 13th, just 13 days before Jupiter reaches this point whilst Mars reaches it on the 1st of February. (Stellariun shows them beautifully aligned along the ecliptic this month.)




Mercury

Mercury.
Messenger image of Mercury Nasa

Mercury passed in front of the Sun (superior conjunction) on the 10th of January and, on the 10th of February, comes to its greatest elongation east, some 18.2 degrees in angle from the Sun.   Mercury starts the month at magnitude -1 and dims to magnitude +0.2 by the 14th and will then soon be lost in the Sun's glare.   From the 1st to the 14th, its angular size increases from 5.6 to 8.1 arc seconds but its phase (the % illuminated disk) falls from 85% to just 32% - hence the fall in magnitude.   On the 1st of the month, it will set about 70 minutes after the Sun and will have an elevation, low in the west-southwest, of ~9 degrees.   This will increase until the 10th before it begins to fall back towards the Sun.   Binoculars may well be needed, but please do not use them until after the Sun has set.






Mars

Mars showing Syrtis major.
A Hubble Space Telescope image of Mars.
Jim Bell et al. AURA / STScI / Nasa

Mars can be seen towards the southeast in the pre-dawn sky at the start of the month.   It then rises some three hours before the Sun and will be best seen at around 7am having an elevation of ~8 degrees.  It will have a magnitude of +1.4 and a 4.3 arc second, salmon-pink, disk.   By month's end it will be seen further round towards the south before dawn and its magnitude will have increased slightly to +1.1.   Its angular size will have increased to 5.5 arc seconds but no markings will be seen unless you have access to the Hubble Space Telescope.   Lying along the ecliptic it is moving eastwards above the 'Teapot' of Sagittarius and will lie just above its 'lid' on the 24th.




Venus

Venus
Venus showing some cloud structure

Venus is now dominating the south-western twilight sky and appears higher each night, climbing from ~29 degrees above the horizon to more than 38 degrees at sunset.   During the month its angular size increases from 15.3 to 18.6 arc seconds but, at the same time, it phase (the percentage of the disk illuminated) decreases from 73% to 63% and so the brightness only increases slightly from -4.1 to -4.3 magnitudes.

Radar Image of Venus
Radar image showing surface features









The Stars

The Mid Evening February Sky

FebruarySky
The February Sky in the south-east - mid evening.

This map shows the constellations seen in the south during the evening. The brilliant constellation of Orion is seen in the south. Moving up and to the right - following the line of the three stars of Orion's belt - brings one to Taurus; the head of the bull being outlined by the V-shaped cluster called the Hyades with its eye delineated by the orange red star Aldebaran. Further up to the right lies the Pleaides Cluster. Towards the zenith from Taurus lies the constellation Auriga, whose brightest star Capella will be nearly overhead. To the upper left of Orion lie the heavenly twins, or Gemini, their heads indicated by the two bright stars Castor and Pollux. Down to the lower left of Orion lies the brightest star in the northern sky, Sirius, in the consteallation Canis Major. Up and to the left of Sirius is Procyon in Canis Minor. Rising in the East is the constellation of Leo, the Lion, with the planet Saturn up and to the right of Regulus its brightest star. Continuing in this direction towards Gemini is the faint constellation of Cancer with its open cluster Praesepe (also called the Beehive Cluster),the 44th object in Messier's catalogue. On a dark night it is a nice object to observe with binoculars. There is also information about the constellation Ursa Major,seen in the north, in the constellation details below.

The constellation Taurus

Taurus
Taurus

Taurus is one of the most beautiful constellations and you can almost imagine the Bull charging down to the left towards Orion. His face is delineated by the "V" shaped cluster of stars called the Hyades, his eye is the red giant star Aldebaran and the tips of his horns are shown by the stars beta and zeta Tauri. Although alpha Tauri, Aldebaran, appears to lie amongst the stars of the Hyades cluster it is, in fact, less than half their distance lying 68 light years away from us. It is around 40 times the diameter of our Sun and 100 times as bright.

The Pleiades
AAO Image of the Pleiades, M45, by David Malin

To the upper right of Taurus lies the open cluster, M45, the Pleiades. Often called the Seven Sisters, it is one of the brightest and closest open clusters. The Pleiades cluster lies at a distance of 400 light years and contains over 3000 stars. The cluster, which is about 13 light years across, is moving towards the star Betelgeuse in Orion. Surrounding the brightest stars are seen blue reflection nebulae caused by reflected light from many small carbon grains. These relfection nebulae look blue as the dust grains scatter blue light more efficiently than red. The grains form part of a molecular cloud through which the cluster is currently passing. (Or, to be more precise, did 400 years ago!)

The Crab Nebula
VLT image of the Crab Nebula

Close to the tip of the left hand horn lies the Crab Nebula, also called M1 as it is the first entry of Charles Messier's catalogue of nebulous objects. Lying 6500 light years from the Sun, it is the remains of a giant star that was seen to explode as a supernova in the year 1056. It may just be glimpsed with binoculars on a very clear dark night and a telescope will show it as a misty blur of light.

The Crab Nebula
Lord Rosse's drawing of M1

Its name "The Crab Nebula" was given to it by the Third Earl of Rosse who observed it with the 72 inch reflector at Birr Castle in County Offaly in central Ireland. As shown in the drawing above, it appeared to him rather lile a spider crab. The 72 inch was the world's largest telelescope for many years. At the heart of the Crab Nebula is a neutron star, the result of the collapse of the original star's core. Although only around 20 km in diameter it weighs more than our Sun and is spinning 30 times a second. Its rotating magnetic field generate beams of light and radio waves which sweep across the sky. As a result, a radio telescope will pick up very regular pulses of radiation and the object is thus also known a Pulsar. Its pulses are monitored each day at Jodrell Bank with a 13m radio telescope.

The constellation Orion

Orion
Orion

Orion, perhaps the most beautiful of constellations, will be seen in the south at around 11 - 12 pm during January. Orion is the hunter holding up a club and shield against the charge of Taurus, the Bull up and to his right. Alpha Orionis, or Betelgeuse, is a read supergiant star varying in size between three and four hundred times that of our Sun. The result is that its brightness varies somewhat. Beta Orionis, or Rigel, is a blue supergiant which, at around 1000 light years distance is about twice as far away as Betelgeuse. It has a 7th magnitude companion. The three stars of Orion's belt lie at a distance of around 1500 light years. Just below the lower left hand star lies a strip of nebulosity against which can be seen a pillar of dust in the shape of the chess-board knight. It is thus called the Horsehead Nebula. It shows up very well photographically but is exceedingly difficult to see visually - even with relativly large telescope.

The Orion Nebula
The Horsehead Nebula: Anglo Australian Observatory

Beneath the central star of the belt lies Orion's sword containing one of the most beautiful sights in the heavens - The Orion Nebula. It is a region of star formation and the reddish colour seen in photographs comes from Hydrogen excited by ultraviolet emitted from the very hot young stars that make up the Trapesium which is at its heart. The nebula, cradling the trapesium stars, is a beautiful sight in binoculars or, better still, a telescope. To the eye it appears greenish, not red, as the eye is much more sensitive to the green light emitted by ionized oxygen than the reddish glow from the hydrogen atoms.

The Orion Nebula
The Orion Nebula: David Malin

The constellation Ursa Major

Ursa Major
Ursa Major

The stars of the Plough, shown linked by the thicker lines in the chart above, form one of the most recognised star patterns in the sky. Also called the Big Dipper, after the soup ladles used by farmer's wives in America to serve soup to the farm workers at lunchtime, it forms part of the Great Bear constellation - not quite so easy to make out! The stars Merak and Dubhe form the pointers which will lead you to the Pole Star, and hence find North. The stars Alcor and Mizar form a naked eye double which repays observation in a small telescope as Mizar is then shown to be an easily resolved double star. A fainter reddish star forms a triangle with Alcor and Mizar.

Ursa Major contains many interesting "deep sky" objects. The brightest, listed in Messier's Catalogue, are shown on the chart, but there are many fainter galaxies in the region too. In the upper right of the constellation are a pair of interacting galaxies M81 and M82 shown in the image below. M82 is undergoing a major burst of star formation and hence called a "starburst galaxy". They can be seen together using a low power eyepiece on a small telescope.

M81 and M82
M81 and M82

Another, and very beautiful, galaxy is M101 which looks rather like a pinwheel firework, hence its other name the Pinwheel Galaxy. It was discovered in1781 and was a late entry to Messier's calalogue of nebulous objects. It is a type Sc spiral galaxy seen face on which is at a distance of about 24 million light years. Type Sc galaxies have a relativly small nucleus and open spiral arms. With an overall diameter of 170,000 light it is one of the largest spirals known (the Milky Way has a diameter of ~ 130,000 light years).

M101
M101 - The Ursa Major Pinwheel Galaxy

Though just outside the constellation boundary, M51 lies close to Alkaid, the leftmost star of the Plough. Also called the Whirlpool Galaxy it is being deformed by the passage of the smaller galaxy on the left. This is now gravitationally captured by M51 and the two will eventually merge. M51 lies at a distance of about 37 million light years and was the first galaxy in which spiral arms were seen. It was discovered by Charles Messier in 1773 and the spiral structure was observed by Lord Rosse in 1845 using the 72" reflector at Birr Castle in Ireland - for many years the largest telescope in the world.

M51
M51 - The Whirlpool Galaxy

Lying close to Merak is the planetary nebula M97 which is usually called the Owl Nebula due to its resemblance to an owl's face with two large eyes. It was first called this by Lord Rosse who drew it in 1848 - as shown in the image below right. Planetary nebulae ar the remnants of stars similar in size to our Sun. When all possible nuclear fusion processes are complete, the central core collpses down into a "white dwarf" star and the the outer parts of the star are blown off to form the surrounding nebula.

Owl Nebula Owl Nebula
M97 - The Owl Planetary Nebula Lord Rosse's 1848 drawing of the Owl Nebula
