Black
Holes at the heart of galaxies
Super-massive
black holes at the heart of galaxies with a mass of up to a
billion suns appear to be the cause of the most energetic sources
of emission in the Universe. As matter, in the form of gas,
dust and stars, comes under the massive gravitational attraction
of the black hole, it spirals in towards it and over 10% of
its rest mass is converted into energy ( a process >10 times
more efficient than that in an H bomb). This energy accelerates
beams of particles to speeds close to that of light; these particles
then radiate intense beams of energy which can be observed in
the x-ray, visible and radio parts of the spectrum.

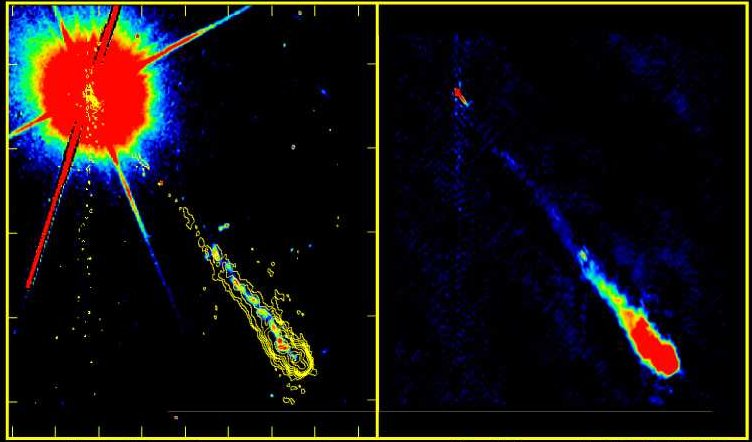

Quasars
and Radio Galaxies
The
centres of such galaxies are called Active Galactic Nuclei and
when they emit a beam of radiation that points towards us, the
intense, often point like objects that we observe are called
Quasars. When the beams lie nearer to the plane of the sky,
we see the emission concentrated into two opposing jets; they
are then termed Radio Galaxies.
Micro-quasars
Micro-quasars
are objects in our own galaxy which also contain black holes,
but here the black hole results from the collapse of the core
of a massive star at the end of its life. One example, GRS1915+105,
is believed to be a black hole several times more massive than
our Sun in orbit around a normal star. Matter from the star
is heated to intense temperatures and radiates X-Rays as it
spirals in towards the black hole. The process is so violent
that unpredictable explosions occur producing spectacular jets
- like the beams produced in a quasar but on a much smaller

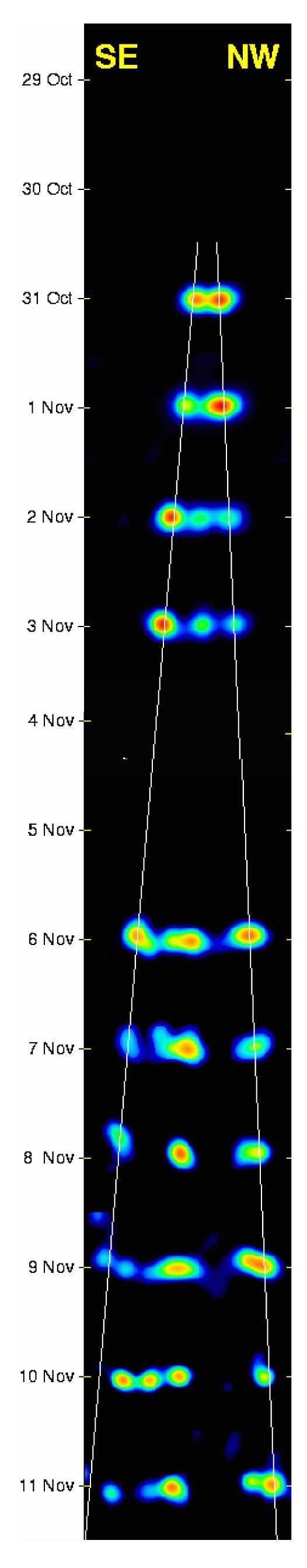

scale; hence the name micro-quasar. A sequence of images (left)
made by MERLIN following an outburst in 1997 shows two bullets
of ultra-hot gas being shot out in opposite directions with
an apparent speed of more than twice the speed of light!
This apparent faster-than-light motion is, in fact, an illusion,
and can be explained if we are seeing jets moving at about 90%
of the speed of light - one jet moving towards us and the other
one moving away from us.

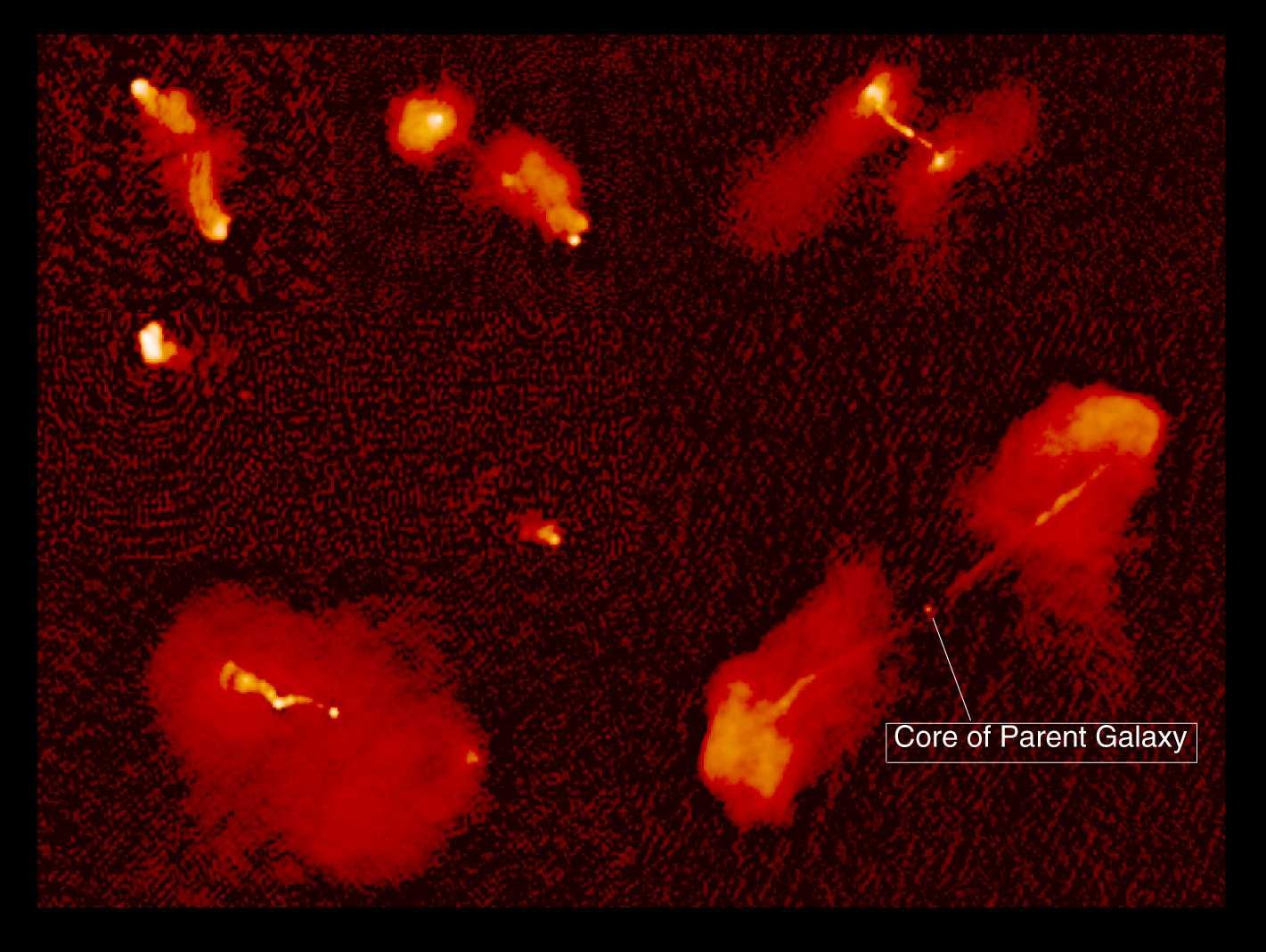

A montage of DRAGNs - Double Radio Sources Associated with active
Galactic Nuclei. The DRAGN is often 10x bigger than the parent
galaxy.
For more information see the Atlas of DRAGN's
