MG (JVAS rediscovery) MG0414+0534, a quad image gravitational lens



Lens System Summary

MG0414+0534 is a quadruple image lens. It was discovered in the MG radio survey. It was re-discovered during the JVAS. This lens is not part of the statistically complete CLASS sample since its radio spectrum is too steep.

This Lens System

Lens name MG0414+0534
Survey MG (JVAS rediscovery)
Images 4
B1950.0 coords 04h11m58.262s 05°27'12.410"
J2000.0 coords 04h14m37.770s 05°34'42.361"

Lens System Structure and Labelling

Image labelling for this lens (RA increases to the left, declination increases upwards)

Image/Lens Positions

Image/Lens Relative Position
East (mas) North (mas)
A1 +0.0 +0.0
A2 +102 +396
B -593 +1926
C -1983 +297

Image/Lens Separations

Separation (mas)
Component A1 A2 B C
A1
408.9 2015.2 2005.1
A2 408.9
1680.5 2087.3
B 2015.2 1680.5
2141.4
C 2005.1 2087.3 2141.4
Position angle (°)
Component A1 A2 B C
A1
-165.6 162.9 98.5
A2 14.4
155.6 87.3
B -17.1 -24.4
40.5
C -81.5 -92.7 -139.5

Maps and Images

Click on an image to see a larger JPEG version, or click on the accompanying text to download a gzipped FITS or PostScript file of the map or image. The images and maps are available in one gzipped file here. To see a DSS image of the region around this lens, click here - note that you will have to start the search manually by clicking on the 'Search' button.

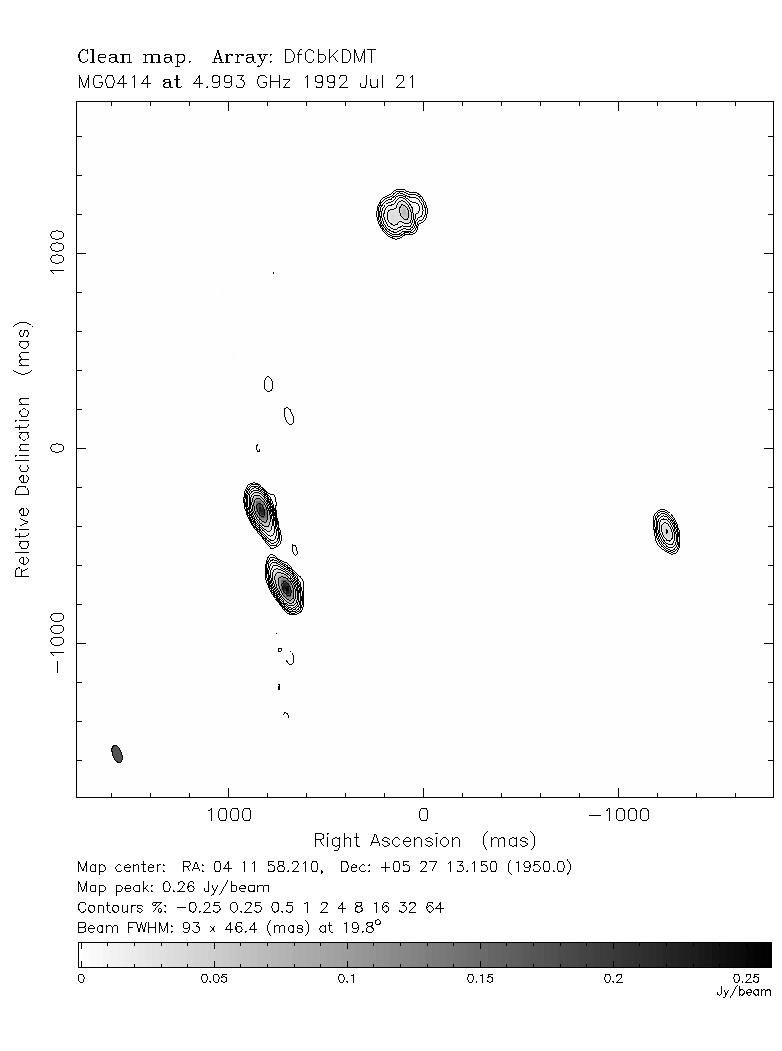

MERLIN maps Click to see a larger version
MERLIN 5GHz image
L. J. King

Radio Flux Densities

Component Flux density (mJy)
8.4 GHz
A1 229.2
A2 208.5
B 89.2
C 32.5
Flux errors
Resolution (mas)
Map noise level
(mJy/beam)
Instrument VLA
Date observed
Reference

Sub-millimetre Flux Densities

Component Flux density (mJy)
3000 μm 1300 μm 850 μm 450 μm
Total 40±2.0 20.7±1.3 25.3±1.8 66±16
Estimated
cal. error

5-10% 5-10%
Instrument PdBI (IRAM) IRAM 30-m SCUBA (JCMT) SCUBA (JCMT)
Date observed

1999-2001 1999-2001
Reference [22] [22] [22] [22]

Redshifts

Object Redshift Instrument Date Observed Reference
Lens galaxy 0.9584±0.0002 LRIS (Keck II) 1997/10/26,27 [20]
Source 2.639±0.002 CRSP + OSIRIS (CTIO) 1991/10/17,18 + 1993/09/22,23 [11]

Notes

  1. Discovered by MG survey.

References

Click here to see the CASTLES data available for this object, or here to search for references on NED. You can go to a paper's abstract on ADS by clicking its reference number.


[1] MG 0414+0534 : a candidate gravitational lens, E. L. Turner et. al., Bull. American Astron. Soc., 21, 718 (1989)


[2] A gravitational lens candidate with an unusually red optical counterpart, J.N. Hewitt et. al., Astron. J. (ISSN 0004-6256), vol. 104, no. 3, Sept. 1992, p. 968-979 (1992)


[3] The lensing Galaxy in MG 0414 + 0534, P. L. Schechter and C. B. Moore, Astron. J. (ISSN 0004-6256), vol. 105, no. 1, p. 1-6 (1993)


[4] Infrared imaging of MG 0414 + 0534 - The red gravitational lens systems as lensed radio galaxies, J. Annis and G. A. Luppino, Astrophysical J., Part 2 - Letters (ISSN 0004-637X), vol. 407, no. 2, p. L69-L72 (1993)


[5] Further radio investigations of gravitational lensing in MG 0414+0534, C. A. Katz and J. N. Hewitt, Astrophysical J., Part 2 - Letters (ISSN 0004-637X), vol. 409, no. 1, p. L9-L11 (1993)


[6] Microlensing in the Gravitational Lens System 0414+0534: Prediction vs. Observations, H. J. Witt and S. Mao, Am. Astron. Soc. Meeting, 183, #24.05 (1993)


[7] Further observational evidence that MG J0414+0534 is a gravitational mirage, M. Angonin-Willaime et. al., Astronomy and Astrophysics (ISSN 0004-6361), vol. 281, no. 2, p. 388-394 (1994)


[8] (Erratum) Further observational evidence that MG J0414+0534 is a gravitational mirage, M. Angonin-Willaime et. al., Astron. Astrophys. 292, 722-722 (1994)


[9] High Resolution Observations and Modeling of MG0414+0534, John. D. Ellithorpe, Thesis (PH.D.)--MIT, 1995.Source: Dissertation Abstracts International, Volume: 56-06, Section: B, page: 3241.


[10] Search for CO Emission from the Gravitational-Lens System MG 0414+0534 and Its Lensing Galaxy, K. Ohta et. al., Publ. of the Astron. Soc. of Japan, v.47, p.739-743. (1995)


[11] MG 0414+0534: A Dusty Gravitational Lens, C. R. Lawrence et. al., Astron. J. 110, p.2570 (1995)


[12] Absorption Lines in the Gravitational Lens System MG 0414+0534, C. R. Lawrence et. al., Astron. J. 110, p.258 (1995)


[13] HST Observations and Models of the Gravitational Lens System MG 0414+0534, E. E. Falco et. al., Astron. J. 113, p.540 (1997)


[14] 15 GHz Monitoring of the Gravitational Lens MG 0414+0534, C. B. Moore and J. N. Hewitt, Astrophysical J. v.491, p.451 (1997)


[15] Multifrequency Radio Observations of the Gravitational Lens System MG 0414+0534, C. A. Katz et. al., Astrophys. J. 475, p.512 (1997)


[16] Detection of CO Emission at Z = 2.64 from the Lensed Quasar MG0414+0534, R. Barvainis et. al., Am. Astron. Soc. Meeting, 191, #103.02 (1997)


[17] The Gravitational Lens MG 0414+0534: A Link between Red Galaxies and Dust, B. A. McLeod et. al., The Astron. J. 115, Issue 4, pp. 1377-1382. (1998)


[18] Redshift estimate of a gravitational lens from the observed reddening of a multiply imaged quasar, C. Jean and J. Surdej, Astron. & Astrophysics 339, p.729-736 (1998)


[19] ISO observations of the high-redshift lensed quasar MG 0414+0534, S. Oya et. al., The Universe as Seen by ISO. Eds. P. Cox & M. F. Kessler. ESA-SP 427 (1999)


[20] Redshifts of the Gravitational Lenses MG 0414+0534 and MG 0751+2716, J.L. Tonry and C. S. Kochanek, Astron. J. 117, Issue 5, pp. 2034-2038 (1999)


[21] Gravitationally lensed radio sources in the Jodrell Bank-VLA Astrometric Survey, L. J. King et al., Mon. Not. R. Astron. Soc. 307, pp. 225-235 (1999)


[22] A submillimeter survey of gravitationally lensed quasars, R. Barvainis and R. Ivison, Astrophys. J. 571, pp. 712-720 (2002)
