Lens System Summary
CLASS B1555+375 is a quad-image gravitational lens system.
|
This Lens System
|
Lens name
|
B1555+375
|
|
Survey
|
CLASS
|
|
Images
|
4
|
|
B1950.0 coords
|
15h55m22.030s
|
37°30'10.942"
|
|
J2000.0 coords
|
15h57m11.940s
|
37°21'35.965"
|
|
Lens System Structure and Labelling
Image labelling for this lens (RA increases to the left, declination increases upwards)
|
Image/Lens Positions
|
Image/Lens
|
Relative Position
|
|
East (mas)
|
North (mas)
|
|
A
|
+0.0
|
+0.0
|
|
B
|
-72.6±1
|
+48.0±1
|
|
C
|
-411.7±1
|
-28.0±1
|
|
D
|
-161.9±6
|
-368.0±6
|
|
Image/Lens Separations
|
Separation (mas)
|
|
Component
|
A
|
B
|
C
|
D
|
|
A
|
|
87.0
|
412.7
|
402.0
|
|
B
|
87.0
|
|
347.5
|
425.5
|
|
C
|
412.7
|
347.5
|
|
421.9
|
|
D
|
402.0
|
425.5
|
421.9
|
|
|
Position angle (°)
|
|
Component
|
A
|
B
|
C
|
D
|
|
A
|
|
123.5
|
86.1
|
23.7
|
|
B
|
-56.5
|
|
77.4
|
12.1
|
|
C
|
-93.9
|
-102.6
|
|
-36.3
|
|
D
|
-156.3
|
-167.9
|
143.7
|
|
|

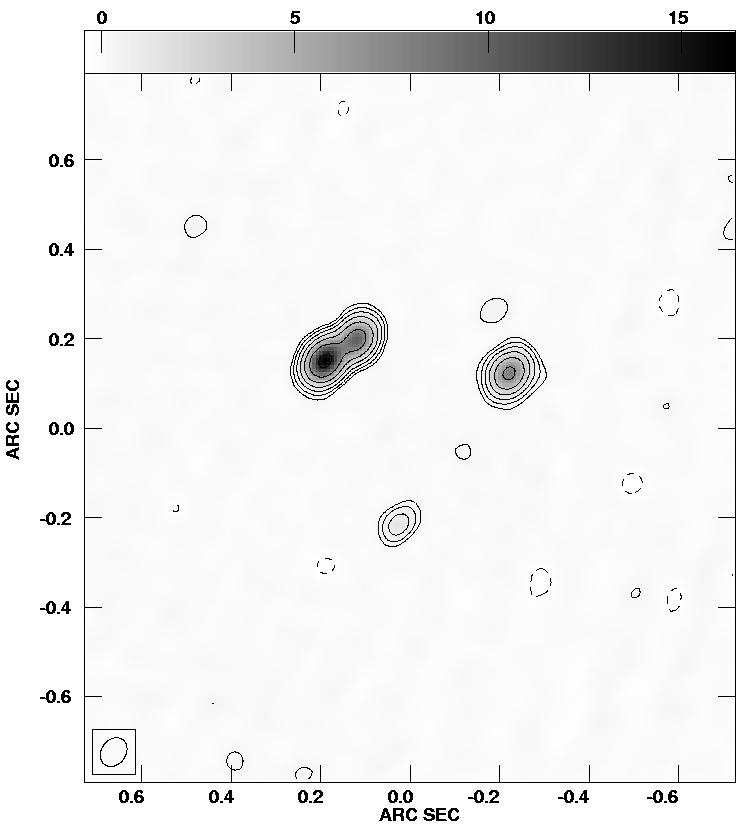

Maps and Images
Click on an image to see a larger JPEG version, or click on the accompanying text to
download a gzipped FITS or PostScript file of the map or image. The images and maps are
available in one gzipped file here.
To see a DSS image of the region around this lens, click here - note that you will have to start the search manually by clicking on the 'Search' button.
|
Radio Flux Densities
|
Component
|
Flux density (mJy)
|
|
5 GHz
|
8.4 GHz
|
15 GHz
|
|
A+B
|
|
36.1
|
|
|
A
|
17.0
|
|
27.0
|
|
B
|
9.7
|
|
15.2
|
|
C
|
8.3
|
9.6
|
11.4
|
|
D
|
1.3
|
|
2.1
|
|
Flux errors
|
|
|
|
|
Resolution (mas)
|
50
|
250
|
150
|
Map noise level
(mJy/beam)
|
0.06
|
0.14
|
0.27
|
|
Instrument
|
MERLIN
|
VLA
|
VLA
|
|
Date observed
|
1997/12/01
|
1995/08/16
|
1998/05/15
|
|
Reference
|
[1]
|
[1]
|
[1]
|
|
Sub-millimetre Flux Densities
|
Component
|
Flux density (mJy)
|
|
850 μm
|
450 μm
|
|
Total
|
<6.8
|
<39
|
Estimated
cal. error
|
5-10%
|
5-10%
|
|
Instrument
|
SCUBA (JCMT)
|
SCUBA (JCMT)
|
|
Date observed
|
1999-2001
|
1999-2001
|
|
Reference
|
[2]
|
[2]
|
|
Optical Imaging
|
Component
|
Brightness (Magnitudes)
|
|
R
|
H
|
|
Total
|
~25
|
~19
|
|
Instrument
|
LRIS (Keck II)
|
WHT
|
|
Integration time
|
2 exp, 5 min each
|
5 exp, 20 min total
|
|
PSF size (arcsec)
|
|
|
|
Pixel scale (mas/pixel)
|
|
240
|
|
Date observed
|
1998/08/02
|
1997/08/24
|
|
Reference no.
|
[1]
|
[1]
|
|
Lens Models
Click on the model's reference number to go to the relevant paper's abstract on ADS.
[1] Marlow et al. fitted a singular isothermal ellipsoid mass profile without external shear to the lens system.
|
Notes
Currently no redshifts are available for this system.
|
References
Click here to see the CASTLES data available for this object, or here to search for references on NED. You can go to a paper's abstract on ADS by clicking its reference number.
-
[1] CLASS B1555+375: A new four-image gravitational lens, D. R. Marlow et al., Astron. J. 118, pp. 654-658 (1999)
-
[2] A submillimeter survey of gravitationally lensed quasars, R. Barvainis and R. Ivison, Astrophys. J. 571, pp. 712-720 (2002)
|
