Much of what is known about the stars comes from studying the star closest to us, the Sun. At a distance of almost 150 million kilometers, the Sun is a few hundred thousand times closer to us than the next nearest star. Because of its proximity, astronomers are able to study our star in much, much greater detail than they can the other stars.

The Sun is a G2-type main sequence star that has been shining for almost 5 billion years. It is known from radioactive dating of the Earth, Moon, and meteorites, that these objects have been around for about that length of time and temperatures on the surface of the Earth have been pleasant since it formed. The Sun's energy has made this possible. What could power something as big as the Sun for so long? The process called nuclear fusion is now known to be the source of the Sun's enormous energy, as well as, other stars. This is a relatively recent discovery. However, using simple physical principles of gas physics, astronomers knew about the density and temperature structure of the interior of the stars long before they unlocked the secret to what could power them for so long. This chapter will cover these topics. I will first give a brief description of the Sun to give you an idea of what a star is like and then go into the basic principles of what the interiors of stars are like and what powers them. The vocabulary terms are in boldface.

The Sun--An Average Star

Sun and planets to the same scale
The Sun and planets are shown to the same scale. The small terrestrial planets and tiny Pluto are in the box---the Earth is the blue dot near the center of the box (montage created by Nick Strobel using NASA images).

Size

The Sun is by far the biggest thing in the solar system. From its angular size of about 0.5° and its distance of almost 150 million kilometers, its diameter is determined to be 1,392,000 kilometers. This is equal to 109 Earth diameters and almost 10 times the size of the largest planet, Jupiter. All of the planets orbit the Sun because of its enormous gravity. It has about 333,000 times the Earth's mass and is over 1,000 times as massive as Jupiter. It has so much mass that it is able to produce its own light. This feature is what distinguishes stars from planets.

Composition

What is the Sun made of? Spectroscopy shows that hydrogen makes up about 94% of the solar material, helium makes up about 6% of the Sun, and all the other elements make up just 0.13% (with oxygen, carbon, and nitrogen the three most abundant ``metals''---they make up 0.11%). In astronomy, any atom heavier than helium is called a ``metal'' atom. The Sun also has traces of neon, sodium, magnesium, aluminum, silicon, phosphorus, sulfur, potassium, and iron. The percentages quoted here are by the relative number of atoms. If you use the percentage by mass, you find that hydrogen makes up 78.5% of the Sun's mass, helium 19.7%, oxygen 0.86%, carbon 0.4%, iron 0.14%, and the other elements are 0.54%.

The Sun's Interior

Here are the parts of the Sun starting from the center and moving outward.

Core

The core is the innermost 10% of the Sun's mass. It is where the energy from nuclear fusion is generated. Because of the enormous amount of gravity compression from all of the layers above it, the core is very hot and dense. Nuclear fusion requires extremely high temperatures and densities. The Sun's core is about 16 million K and has a density around 160 times the density of water. This is over 20 times denser than the dense metal iron which has a density of ``only'' 7 times that of water. However, the Sun's interior is still gaseous all the way to the core because of the extreme temperatures. There is no molten rock like that found in the interior of the Earth.

Radiative Zone

The radiative zone is where the energy is transported from the superhot interior to the colder outer layers by photons. Technically, this also includes the core. The radiative zone includes the inner approximately 85% of the Sun's radius.

Convective Zone

Energy in the outer 15% of the Sun's radius is transported by the bulk motions of gas in a process called convection. At cooler temperatures, more ions are able to block the outward flow of photon radiation more effectively, so nature kicks in convection to help the transport of energy from the very hot interior to the cold space. This part of the Sun just below the surface is called the convection zone.

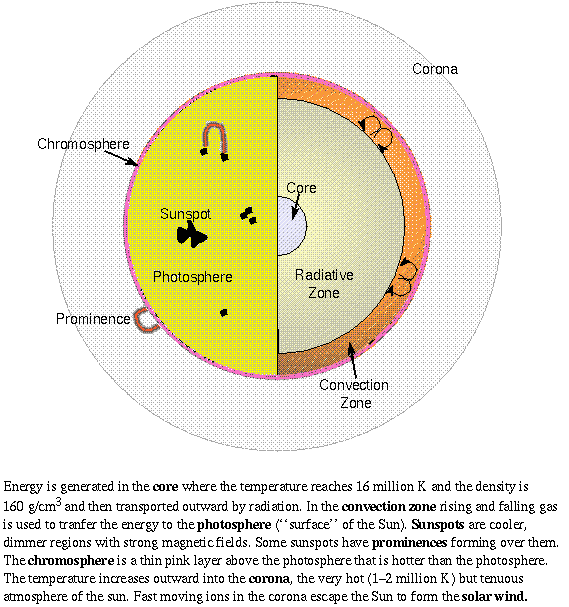

the structure of our star

The Sun's Surface

photosphere The deepest layer of the Sun you can see is the photosphere. The word ``photosphere'' means ``light sphere''. It is called the ``surface'' of the Sun because at the top of it, the photons are finally able to escape to space. The photosphere is about 500 kilometers thick. Remember that the Sun is totally gaseous, so the surface is not something you could land or float on. It is a dense enough gas that you cannot see through it. It emits a continuous spectrum. Several methods of measuring the temperature all determine that the Sun's photosphere has a temperature of about 5840 K.

Measuring the Sun's Temperature

One method, called Wien's law, uses the wavelength of the peak emission, wavelengthpeak, in the Sun's continuous spectrum. The temperature in Kelvin = 2.9 × 106 nanometers/wavelengthpeak.

Another method uses the flux of energy reaching the Earth and the inverse square law. Recall from the Stellar Properties chapter that the flux is the amount of energy passing through a unit area (e.g., 1 meter2) every second. From the Inverse Square Law of Light Brightness, you find that the solar flux at the Earth's distance = the Sun's surface flux × (Sun's radius/Earth's distance)2 = 1380 Watts/meter2. Since the Sun's photosphere is approximately a thermal radiator, the flux of energy at its surface = sigma × (the Sun's surface temperature)4, where sigma is the Stefan-Boltzmann constant. Rearranging the equation, the photosphere's temperature = [(solar flux at Earth)/sigma) × (Earth distance/Sun's radius)2]1/4.

These two methods give a rough temperature for the Sun of about 5800 K. The upper layers of the photosphere are cooler and less dense than the deeper layters, so you see absorption lines in the solar spectrum. Which element absorption lines are present and their strength depends sensitively on the temperature. You can use the absorption line strengths as an accurate temperature probe to measure a temperature of about 5840 K.

Features on the Photosphere

sunspots + granulation
Sunspots + granulation in the photosphere. The sunspot at bottom right is about the size of the Earth (courtesy of National Solar Observatory/Sacramento Peak Observatory)

Galileo discovered that the Sun's surface is sprinkled with small dark regions called sunspots. Sunspots are cooler regions on the photosphere. Since they are 1000--1500 K cooler than the rest of the photosphere, they do not emit as much light and appear darker. They can last a few days to a few months. Galileo used the longer-lasting sunspots to map the rotation patterns of the Sun. Because the Sun is gaseous, not all parts of it rotate at the the same rate. The solar equator rotates once every 25 days, while regions at 30° above and below the equator take 26.5 days to rotate and regions at 60° from the equator take up to 30 days to rotate.

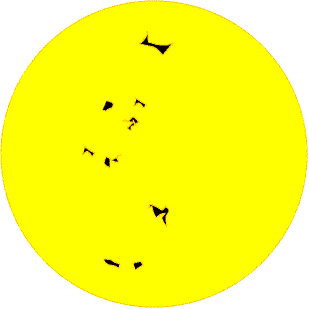

differential rotation of Sun

Animation begins with sunspots at different latitudes lined up. The sequence ends after one rotation of the equator---the sunspots near the poles have not appeared yet---and the animation starts over.

Hundreds of years of observing the sunspots on the Sun shows that the number of sunspots varies in a cycle with an average period of 11 years. At the start of a sunspot cycle the number of sunspots is at a minimum and most of them are at around 35° from the solar equator. At solar maximum when the sunspot number peaks about 5.5 years later, most of the sunspots are within just 5° of the solar equator.

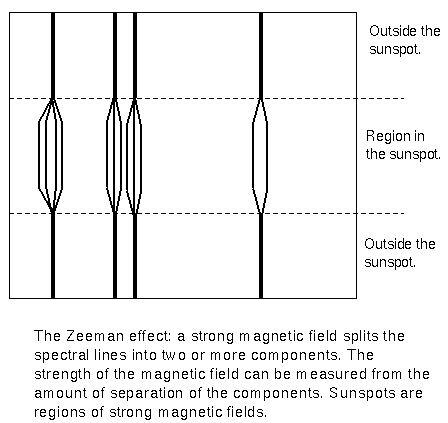

spectral lines split under the
influence of strong magnetic fields

Sunspots are regions of strong magnetic fields. This affects the spectral lines in the sunspot spectra. Each absorption lines will split up into multiple components. The amount of separation between the components measures the strength of the magnetic field. The magnetic field is somehow responsible for the sunspot cycle. In one 11-year cycle the leading sunspot in a sunspot group will have a north magnetic pole while the trailing sunspot in the group will have a south magnetic pole. In the next 11-year cycle the poles will switch so the total cycle is 22 years long.

At solar maximum there are more prominences and solar flares. Prominences are bright clouds of gas forming above the sunspots that follow the magnetic field line loops. So-called ``quiet'' ones form in the corona (the Sun's atmosphere) about 40,000 kilometers above the surface. Sometimes they form loops of hydrogen gas as the gas follows the loops in the magnetic field. Quiet prominences last several days to several weeks. ``Surge'' prominences lasting up to a few hours shoot gas up to 300,000 kilometers above the photosphere.

loop prominence
The smallest of the loop prominences shown here is over three times bigger than the Earth (courtesy of National Solar Observatory/Sacramento Peak Observatory).

Solar flares are eruptions more powerful than surge prominences (a flare is shown in the Sun + planets montage above). They will last only a few minutes to a few hours. A lot of ionized material is ejected in a flare. Unlike the material in prominences, the solar flare material moves with enough energy to escape the Sun's gravity. When this burst of ions reaches the Earth, it interferes with radio communication. Sometimes a solar flare will cause voltage pulses or surges in power and telephone lines. Brownouts or blackouts may result. Humans travelling outside the protection of the Earth's magnetic field will need to have shielding from the powerful ions in a flare.

High resolution observations of the solar surface show a honeycomb pattern called granulation made of bright spots of convection 700 to 1000 kilometers across (see the picture above). Hot gas rises in the middle of each granule bringing energy from the interior to the surface and sinks back down on the border of a granule. The hot gas rising in the center is brighter than the cooler gas sinking at the borders. Each granule will last for about 8 minutes.

Solar Atmosphere

Moving outward from the core to the surface of the Sun, the temperature and density of the gas decreases. This trend in the density continues outward in the Sun's atmosphere. However, the temperature increases above the photosphere. The cause of the temperature increase is not known but a couple of popular theories invoke sonic waves or magnetic waves to heat the atmosphere.

Chromosphere

During solar eclipses a thin pink layer can be seen at the edge of the dark Moon. This colorful layer is called the chromosphere (it means ``color sphere''). The chromosphere is only 2000 to 3000 kilometers thick. Its temperature rises outward away from the photosphere. Because it has a low density, you see emission lines of hydrogen (mostly at the red wavelength of 6563Å)

chromosphere during an eclipse
The thin chromosphere is visible in this solar eclipse picture.

Corona

When the new Moon covers up the photosphere during a total solar eclipse, you can see the pearly-white corona around the dark Moon. This is the rarefied upper atmosphere of the Sun. It has a very high temperature of one to two million Kelvin. Despite its high temperature, it has a low amount of heat because it is so tenuous.

corona during an eclipse
Total solar eclipse in 1973 showing the corona (courtesy of Fred Espenak).

The corona is known to be very hot because it has ions with many electrons removed from the atoms. At high enough temperatures the atoms collide with each other with such energy to eject electrons. This process is called ionization. At very high temperatures, atoms like iron can have 9 to 13 electrons ejected. Nine-times ionized iron is only produced at temperatures of 1.3 million K and 13-times ionized iron means the temperature gets up to 2.3 million K! During strong solar activity, the temperature can reach 3.6 million K and lines from 14-times ionized calcium are seen.

Most of the corona is trapped close to Sun by loops of magnetic field lines. In X-rays, those regions appear bright. Some magnetic field lines do not loop back to the Sun and will appear dark in X-rays. These places are called ``coronal holes''.

extreme UV from SOHO

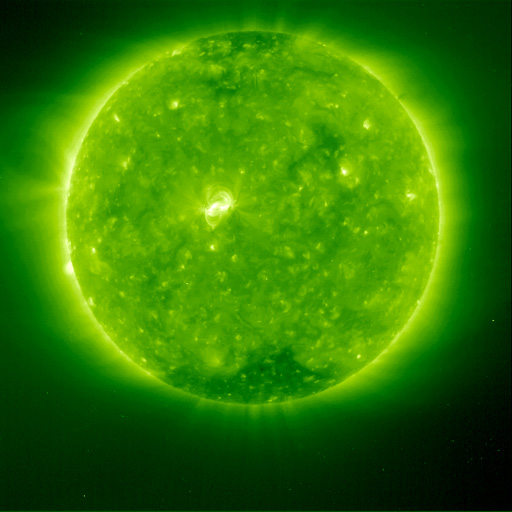

More details in the corona are seen when looking in the higher energy regions of the electromagnetic spectrum than visible light (extreme ultraviolet image from the SOHO spacecraft, courtesy of NASA and ESA).

Fast-moving ions can escape the Sun's gravitational attraction. Moving outward at hundreds of kilometers/second, these positive and negative charges travel to the farthest reaches of the solar system. They are called the solar wind. The solar wind particles passing close to a planet with a magnetic field are deflected around the planet. Some are deflected to the planet's magnetic poles. When the charged particles hit the planet's atmosphere, they make the gas particles in the atmosphere produce emission spectra---the aurora borealis in the north and aurora australis in the south (see the aurorae section in the planets chapter). The red aurorae on the Earth are produced by hydrogren emission at the top of the atmosphere. The green aurorae are produced by oxygen emission lower down but still many tens of kilometers above the surface. During solar maximum the increased number and energy of the solar wind particles produce more extensive auroral displays in the Earth's atmosphere---the aurorae can even be seen by those at latitudes near 30° north or south! Usually, aurorae are seen by only those above 50° N latitude (or 50° S latitude for the aurora australis). The effects of the solar wind on the Earth is described more fully in the Space Weather page at Rice University (Houston, TX).

Vocabulary

aurora australis aurora borealis chromosphere
flux granulation inverse square law of light brightness
solar wind sunspots

Formulae

Review Questions

  1. What are the two main gases in the Sun? How does the Sun's mass and size compare with Jupiter?
  2. What goes on in the core, radiative zone, and convection zone of the Sun?
  3. Describe the three ways astronomers use to find that the photosphere is about 5800 K.
  4. What are some of the characteristics of sunspots? What is the sunspot cycle?
  5. Do all surface layers of the Sun rotate at the same rate? How can you tell?
  6. What produces the granulation on the surface of the Sun?
  7. What are prominences and flares? How are they associated with solar activity? How is their number correlated with the number of sunspots?
  8. How can we tell that the chromosphere and corona are over 6000 K (some parts reaching a few million degrees). What are ``coronal holes''?
  9. How is the solar wind associated with aurorae?
